Automation-ready 3-axis panel machining

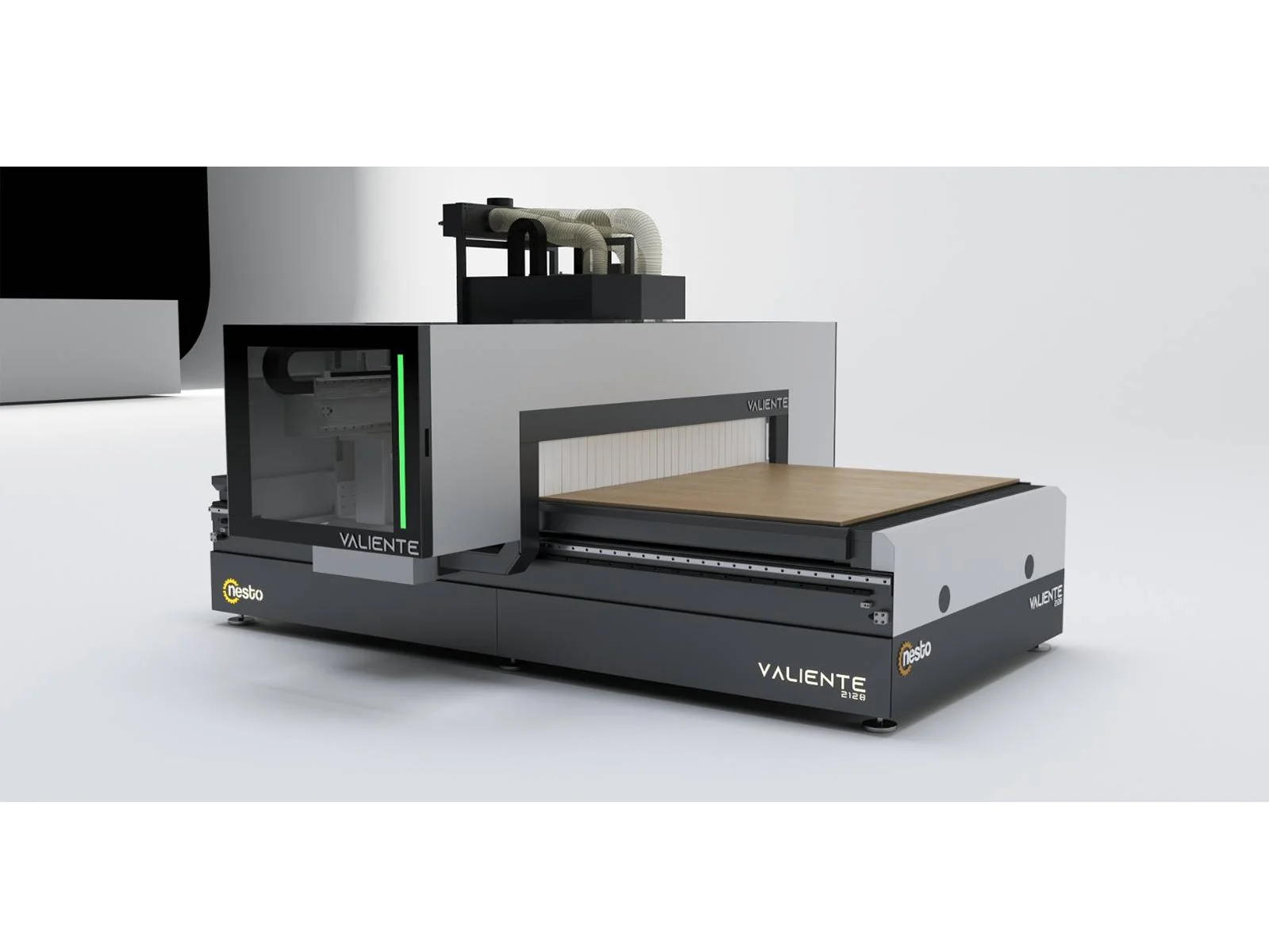

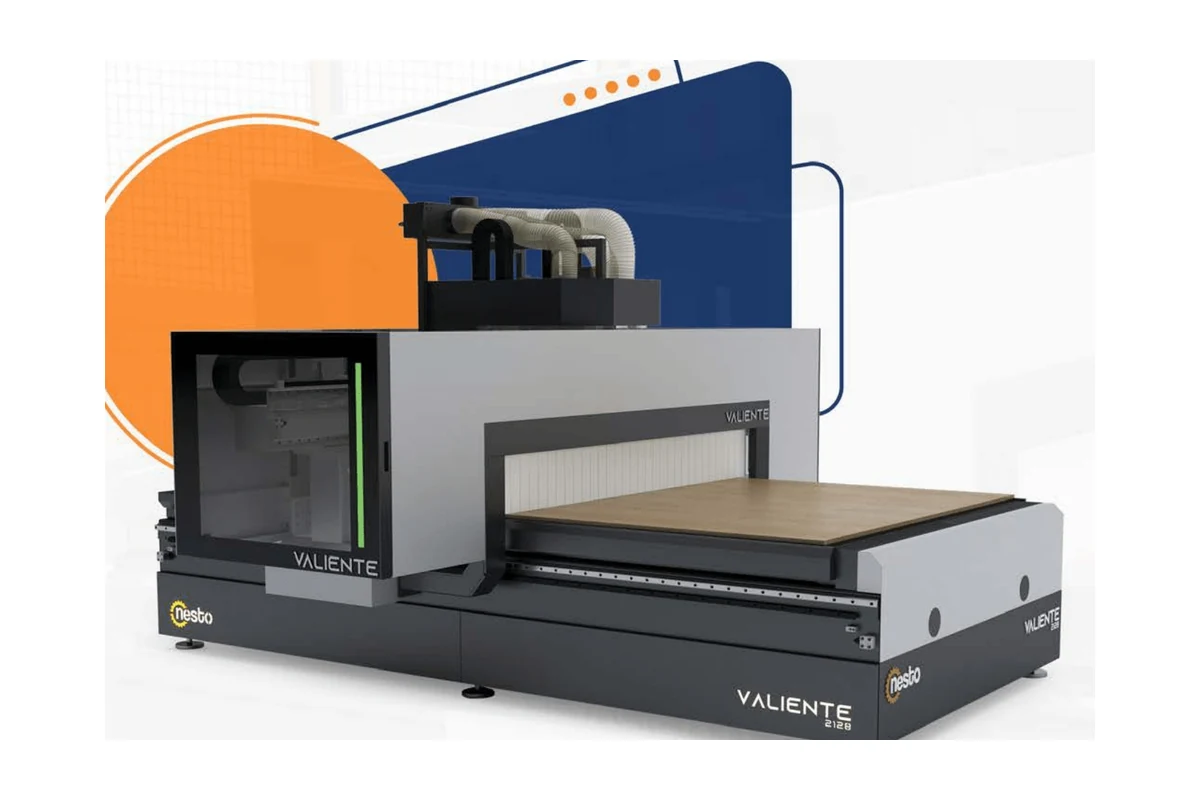

Valiente 3-Axis CNC Machining Center
Plan loading, machining and unloading as one production flow
A 2,100 × 2,800 mm work area, moving 14-tool magazine, TPA control and modular automation options support scalable panel production.
- 24,000 rpm Hiteco HSK F63 spindle
- Moving 14-position magazine under the bridge
- Loading lift, unloading conveyor and safety options
Add panel size, material, target capacity and the required automation level to the quote form.
General Features and Production Capabilities
Scalable three-axis CNC panel production
Valiente combines routing, sizing, drilling, grooving and 3D surface machining with a 2,100 × 2,800 mm standard work area. Its modular structure can grow from a stand-alone machining center into a loading, machining and unloading cell.
Furniture and panel applications
Designed for furniture, tables, chairs, accessories, sofa frames, kitchen units and similar wood-based components that require repeatable panel machining.
- Nesting and sizing
- Routing and grooving
- Drilling and 3D surfaces
Rigid chassis and zoned vacuum table
A reinforced body combines 10 mm steel plate construction with a 12 mm compact worktable. Six selectable vacuum zones adapt the holding area to the panel size.
Servo-controlled precision axes
Panasonic servo drives, precision linear guides and rack-and-pinion transmission support controlled acceleration and stable motion across the working area.

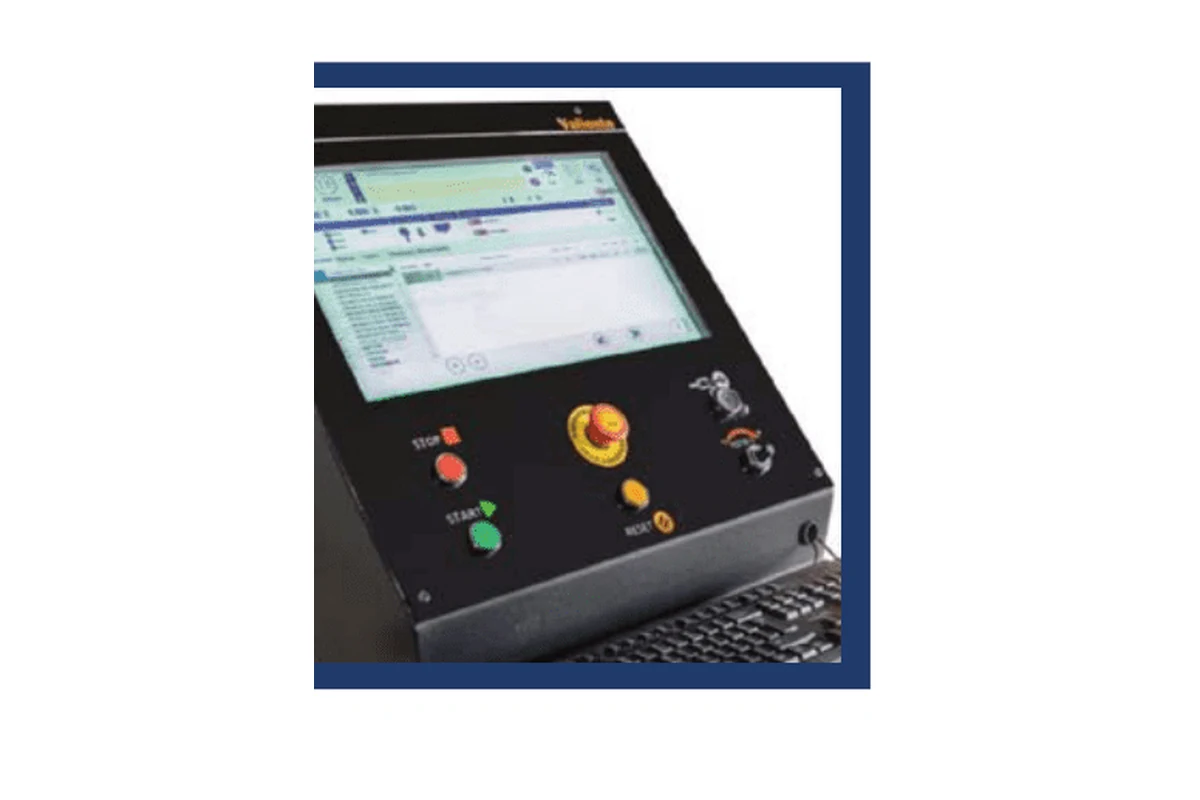

TPA industrial CNC control
The Windows-based TPA control provides EtherCAT communication, detailed production reporting, an application-specific interface and secure remote service support.
Moving 14-position tool magazine
Mounted below the bridge, the magazine changes tools without sending the bridge back to a fixed parking point, shortening transitions in multi-operation programs.

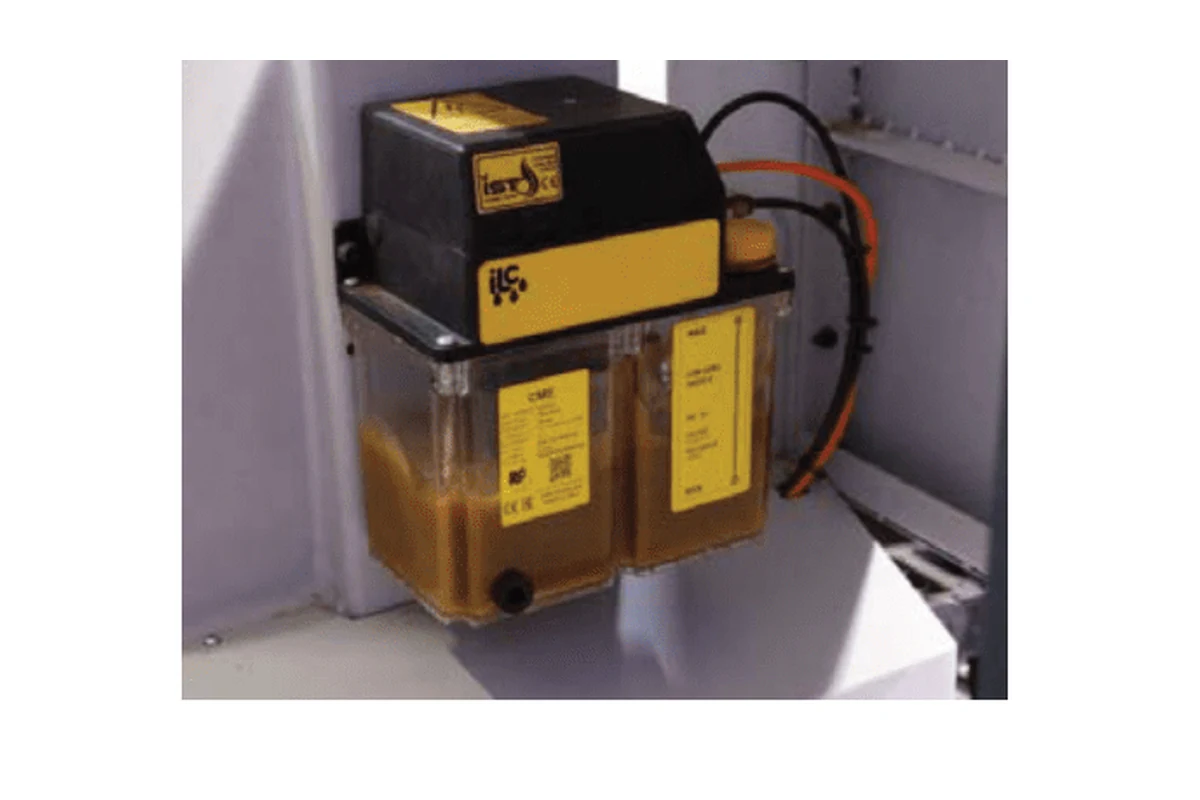

Automatic lubrication and tool measurement
The ILC unit lubricates moving components at adjustable intervals, while automatic tool measurement records tool length to maintain the correct Z reference after changes.
Technical Specifications
| Specification | Standard model |
|---|---|
| Working area | 2,100 × 2,800 mm82.68 × 110.24 in |
| Control unit | TPA industrial PC (Italy) |
| X-axis motor | 1.5 kW Panasonic |
| Y1 / Y2-axis motors | 1.5 kW Panasonic |
| Z-axis motor | 0.75 kW Panasonic |
| Tool changer | 14-position moving magazine under the bridge |
| Gear reducer | Neugart |
| Pinion | 24 × 22 · M2 · Z30 |
| Linear motion group | TBI / Staf |
| Spindle motor | Hiteco 9.5–11 kW · 24,000 rpm · HSK F63 (Italy) |
| Vacuum system | VPS 250 m³/h dry type · 6 zones |
| Servo motors and drives | Panasonic |
| Rapid feed speed | 70 m/min |
| Lubrication system | ILC automatic lubrication unit (Italy) |
| Machine dimensions (L × W × H) | 4,440 × 4,000 × 2,600 mm174.80 × 157.48 × 102.36 in |
| Total weight | 4,500 kg |
Standard Main Equipment

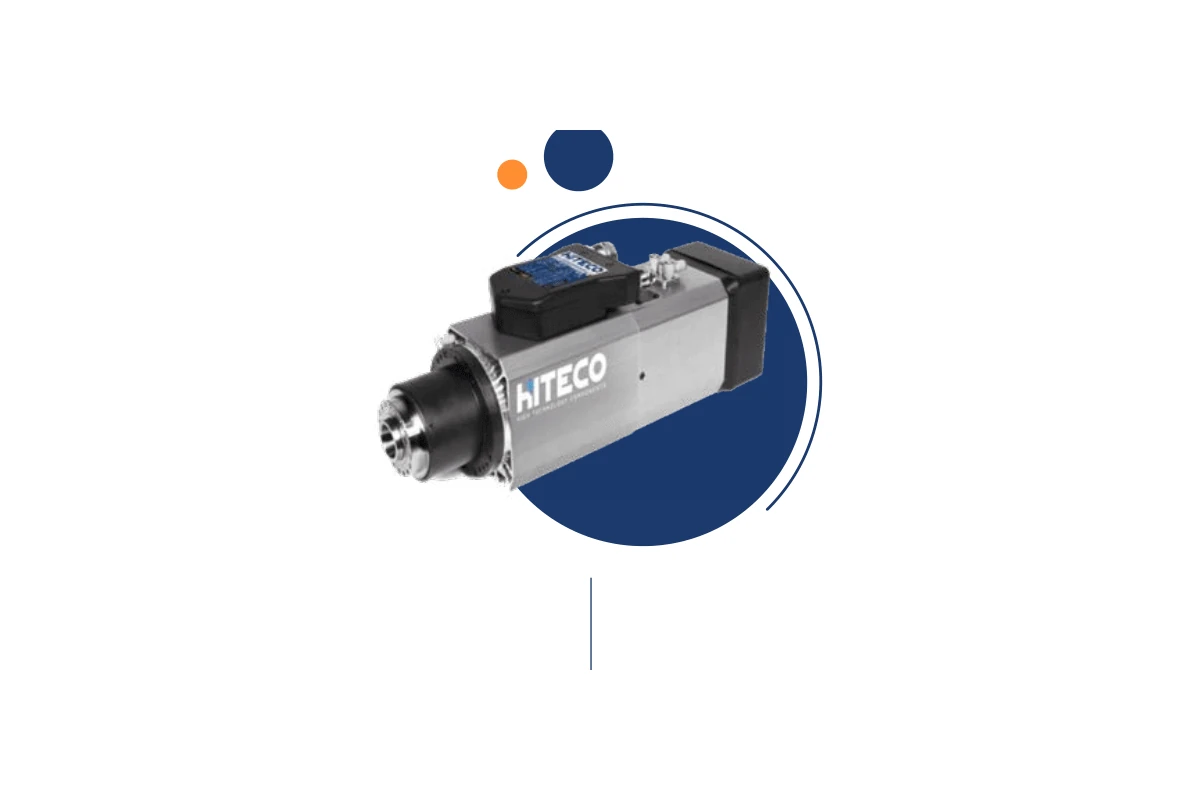

Hiteco HSK F63 spindle
The Italian spindle provides 9.5–11 kW, up to 24,000 rpm and automatic tool changing for routing, sizing, grooving and 3D surface work.
- 9.5–11 kW
- 24,000 rpm
- HSK F63
TPA industrial control unit
Windows-based CNC control with EtherCAT communication, reporting, an application-specific interface and remote service support.

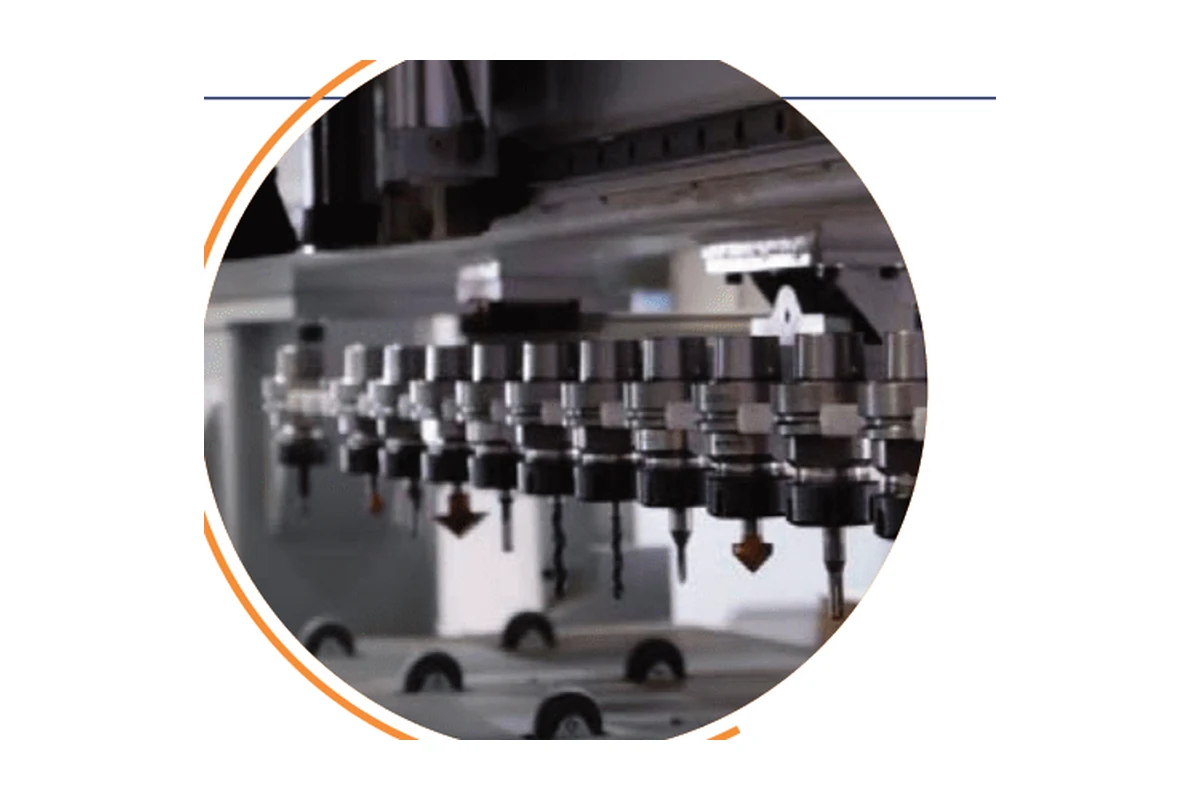

14-position moving tool magazine
The under-bridge magazine keeps multiple tools ready and shortens tool-change travel in multi-step programs.
- 14 tool positions
ILC central automatic lubrication
Automatically lubricates moving components; the interval can be adjusted from the control screen for planned maintenance.
Automatic tool measurement
Measures and stores tool length to help maintain the correct Z-axis reference after a tool change.

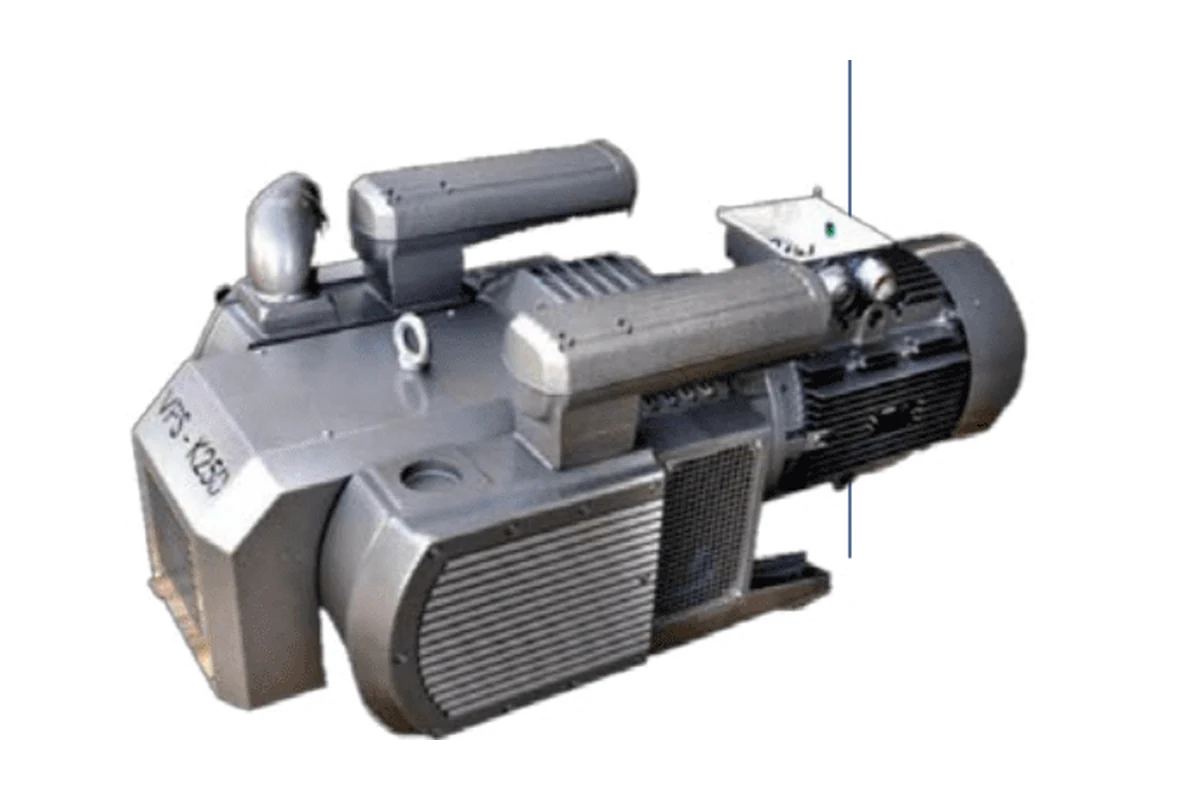

VPS 250 m³/h dry vacuum pump
Supplies the six-zone worktable for dry vacuum workholding in continuous panel-machining applications.
- 250 m³/h
- 200 mbar
- 7.5 kW
- 1,000 rpm
- 77–79 dB

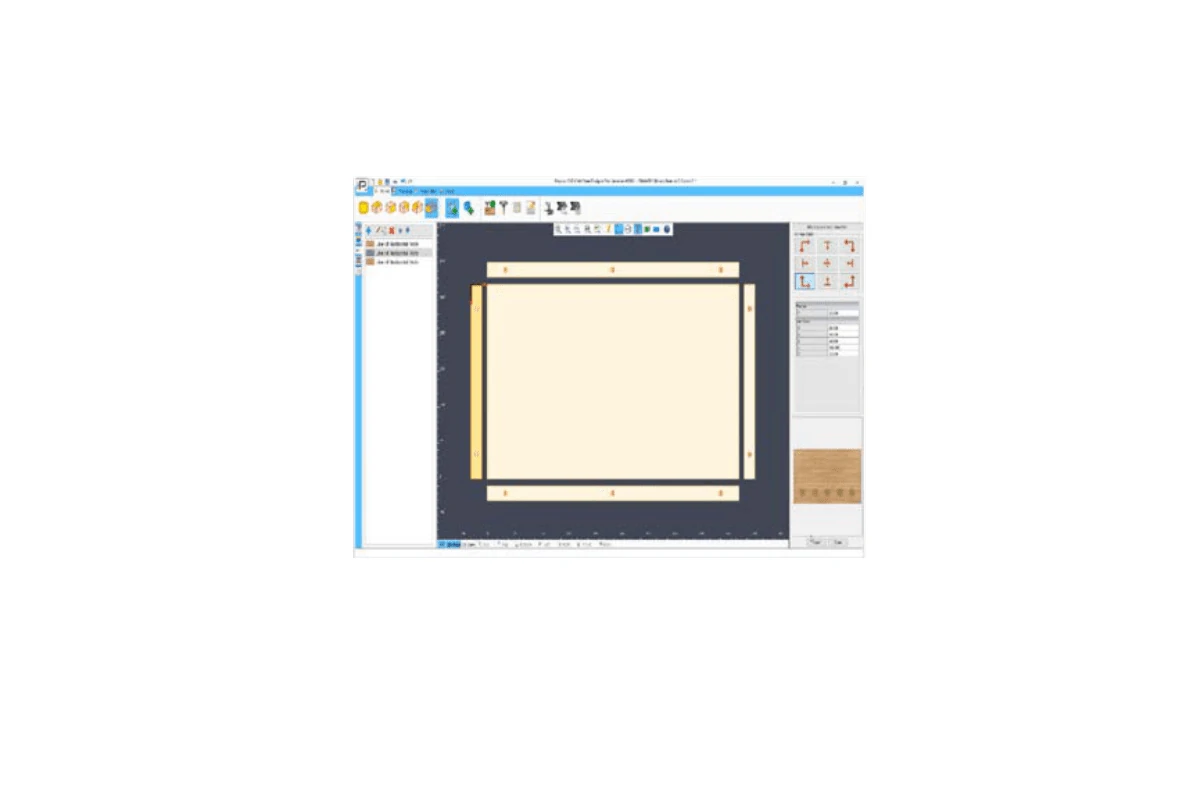

Pegasus CAD/CAM workflow
Supports 3D part preparation, review and simulation before machining code is transferred to production.
Sweeping and unloading unit
After machining, dragging elements move the processed panel off the table while suction elements clean the surface. Bridge-cover and under-bridge layouts are supported.
Options for Production Requirements
Extended 2,100 × 3,660 mm working area
Extended table capacity for manufacturers processing longer panel formats.
- 2,100 × 3,660 mm
- 82.68 × 144.09 in

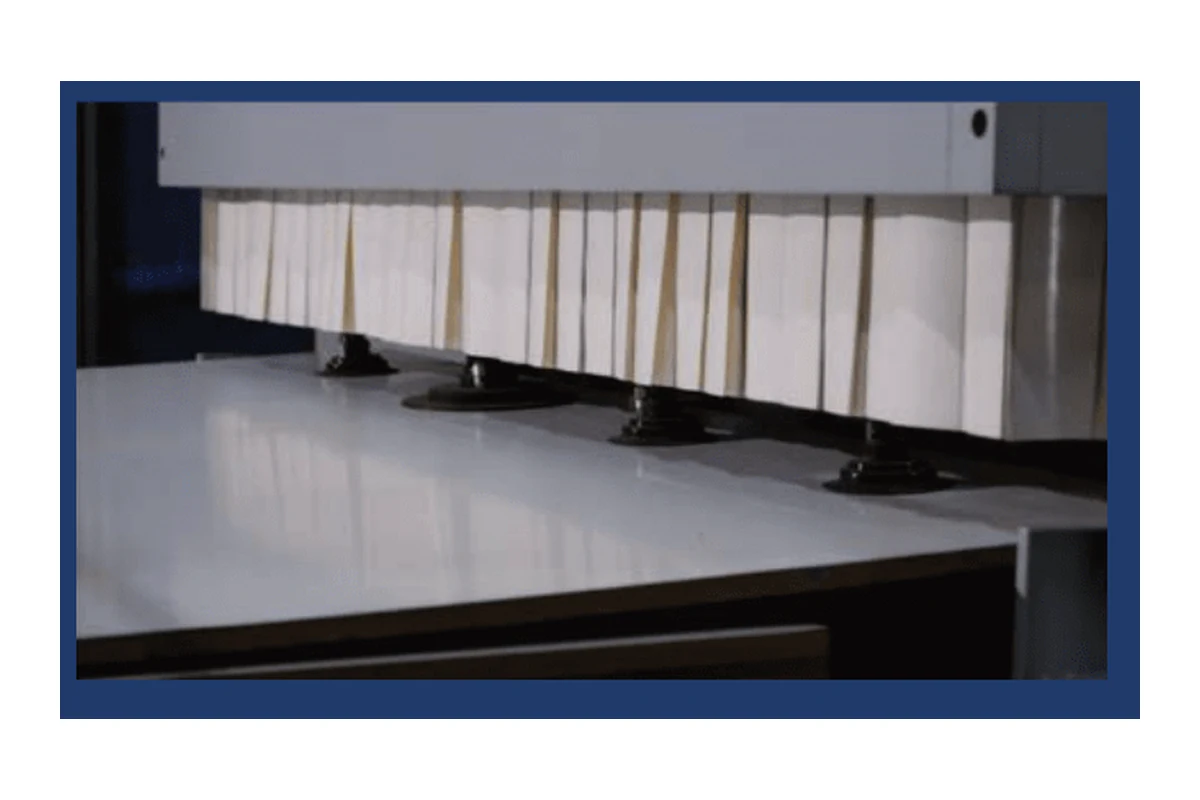

Automatic loading vacuum unit
Vacuum pads move the next panel from the loading lift to the machining area as part of an automated production flow.

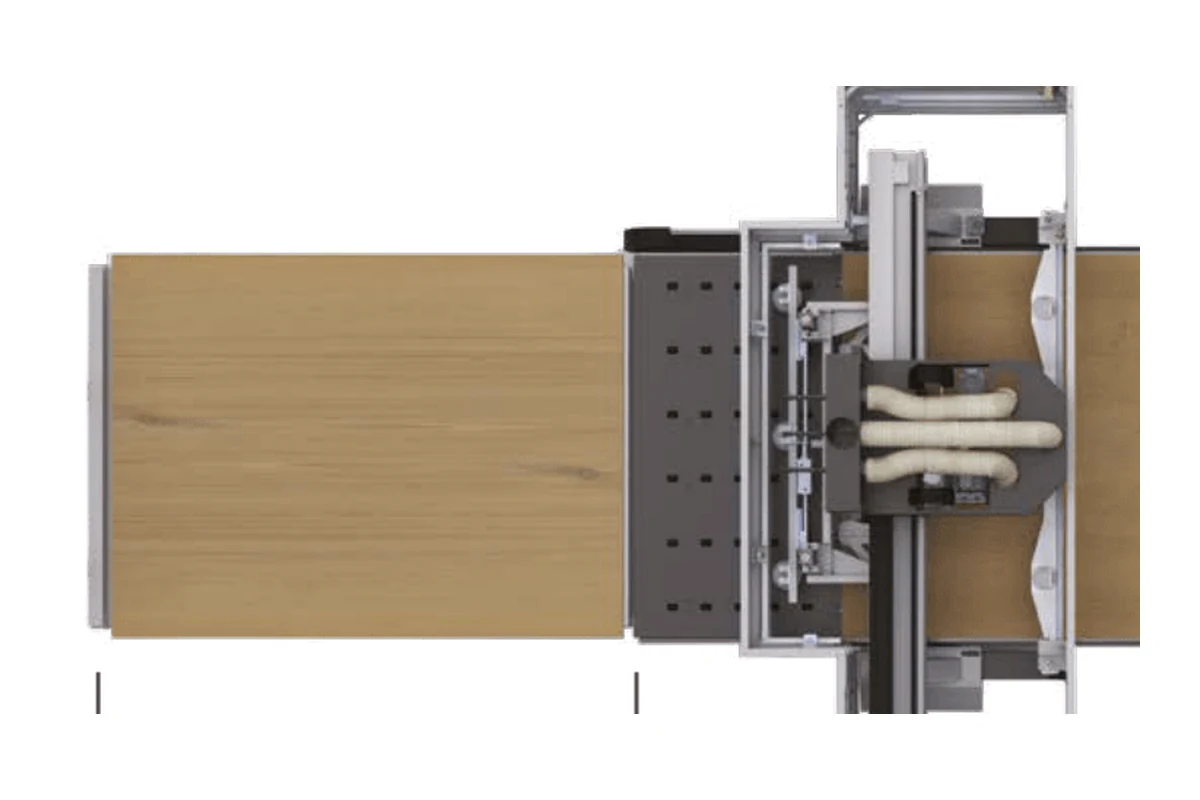

Automatic loading lift
Raises panel stacks to the loading height and supports flat or forklift-gap platforms for automated feeding.
- 2,000 × 3,000 mm
- 5,000 kg
- 2.2 kW
- 430–1,100 mm

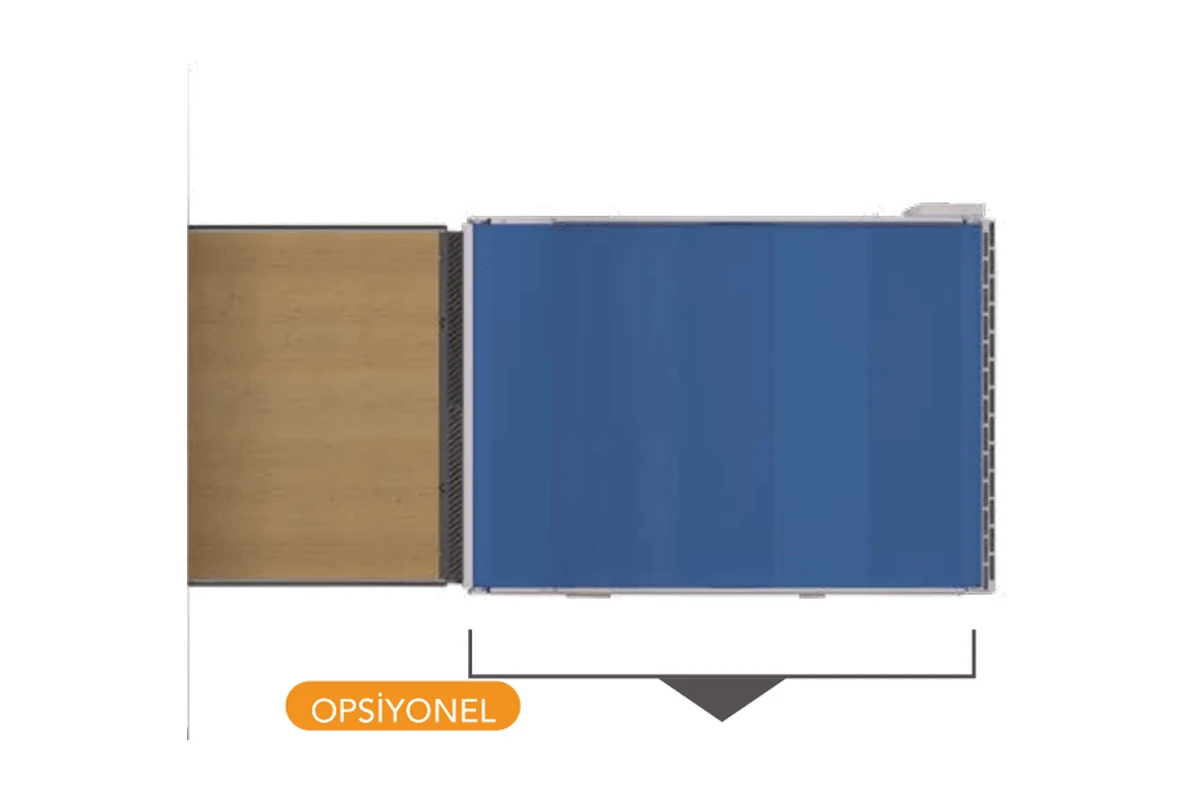

Motorized unloading conveyor
Receives processed panels from the worktable and carries them out of the machining cell at a controlled speed.
- 2,200 mm
- 3,700 mm
- 850 ± 50 mm
- 10 m/min

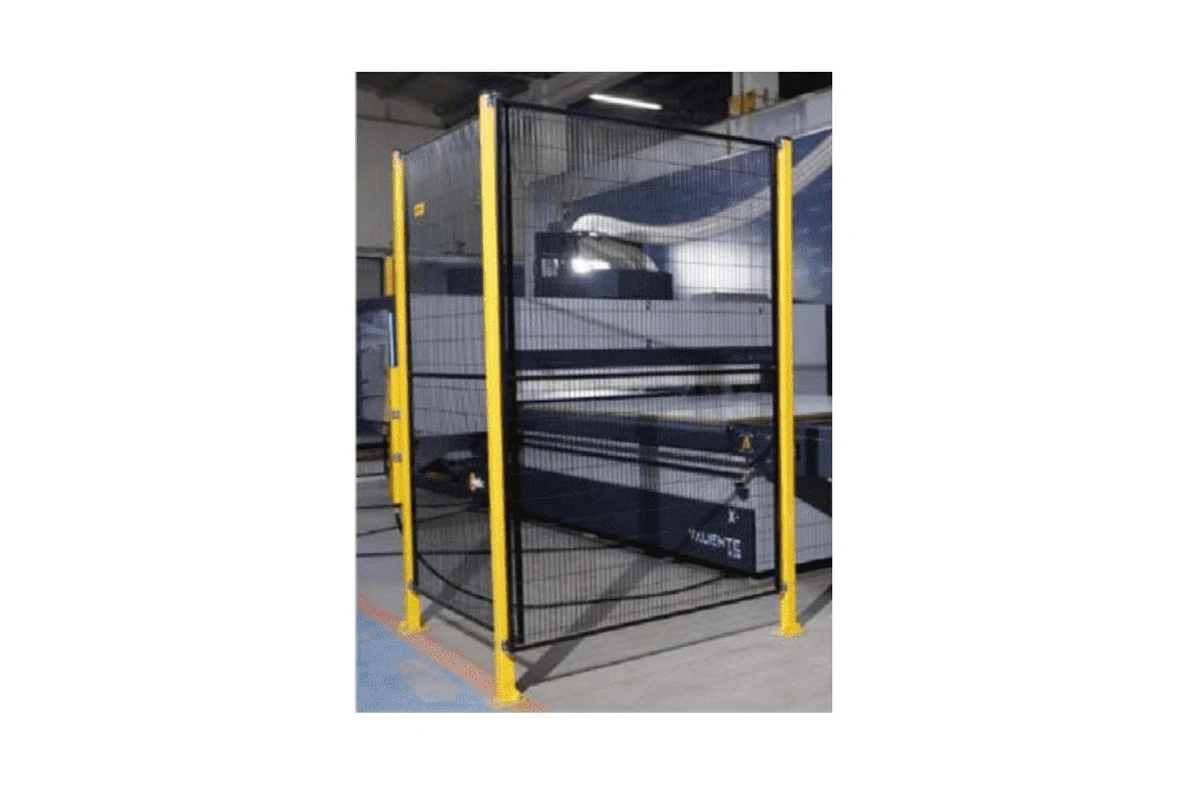

Perimeter safety fence
Wire fencing and light-barrier integration define the automated cell boundary and support safer material handling around the machine.

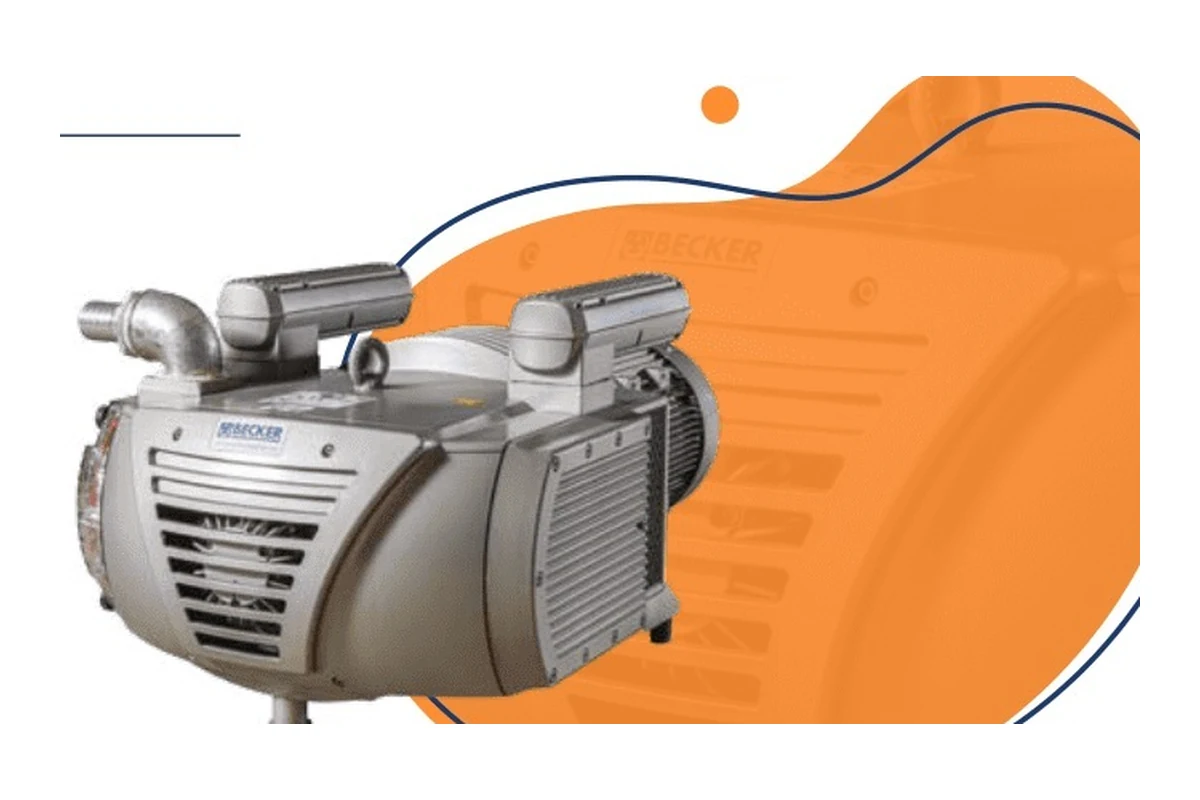

Becker 250 m³/h dry vacuum pump
A 5.5 kW Becker dry vacuum-pump alternative for the workholding system.
- 250 m³/h
- 5.5 kW

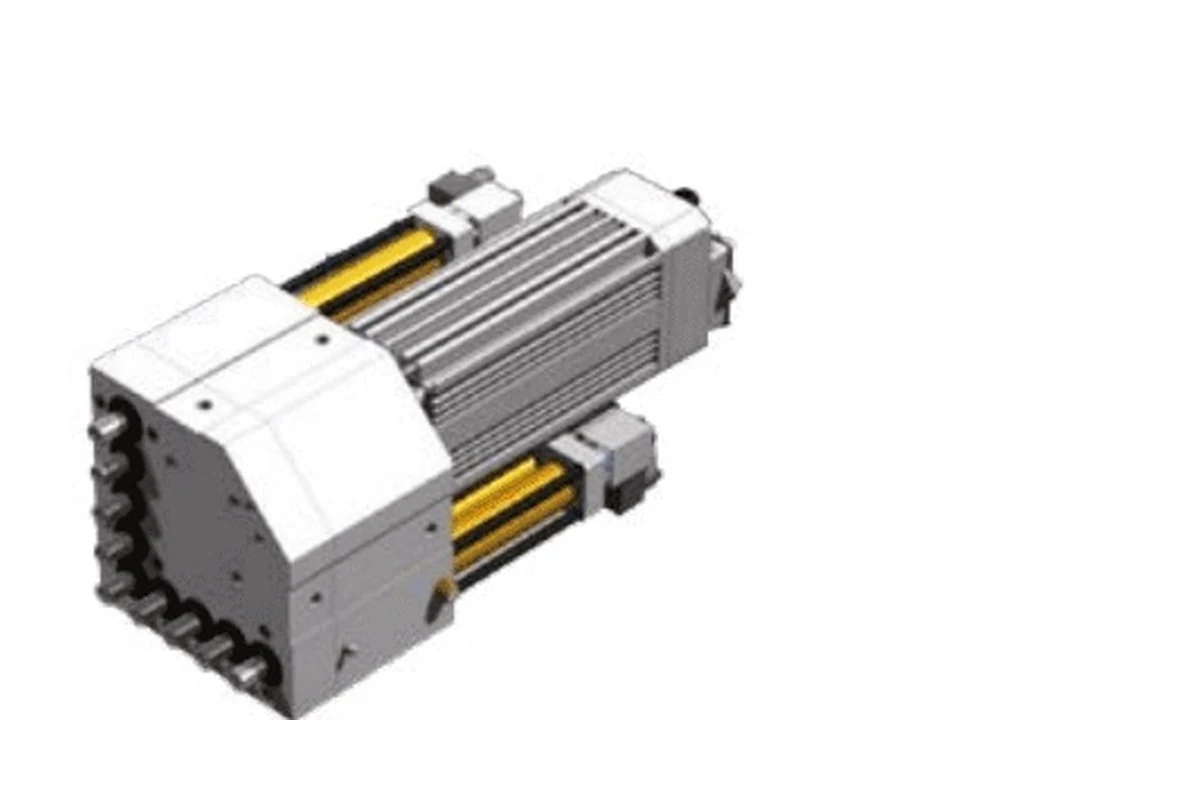

FAM 9-spindle vertical drilling unit
Adds vertical drilling for Minifix, hinge, shelf-hole and similar patterns in MDF and particleboard components.

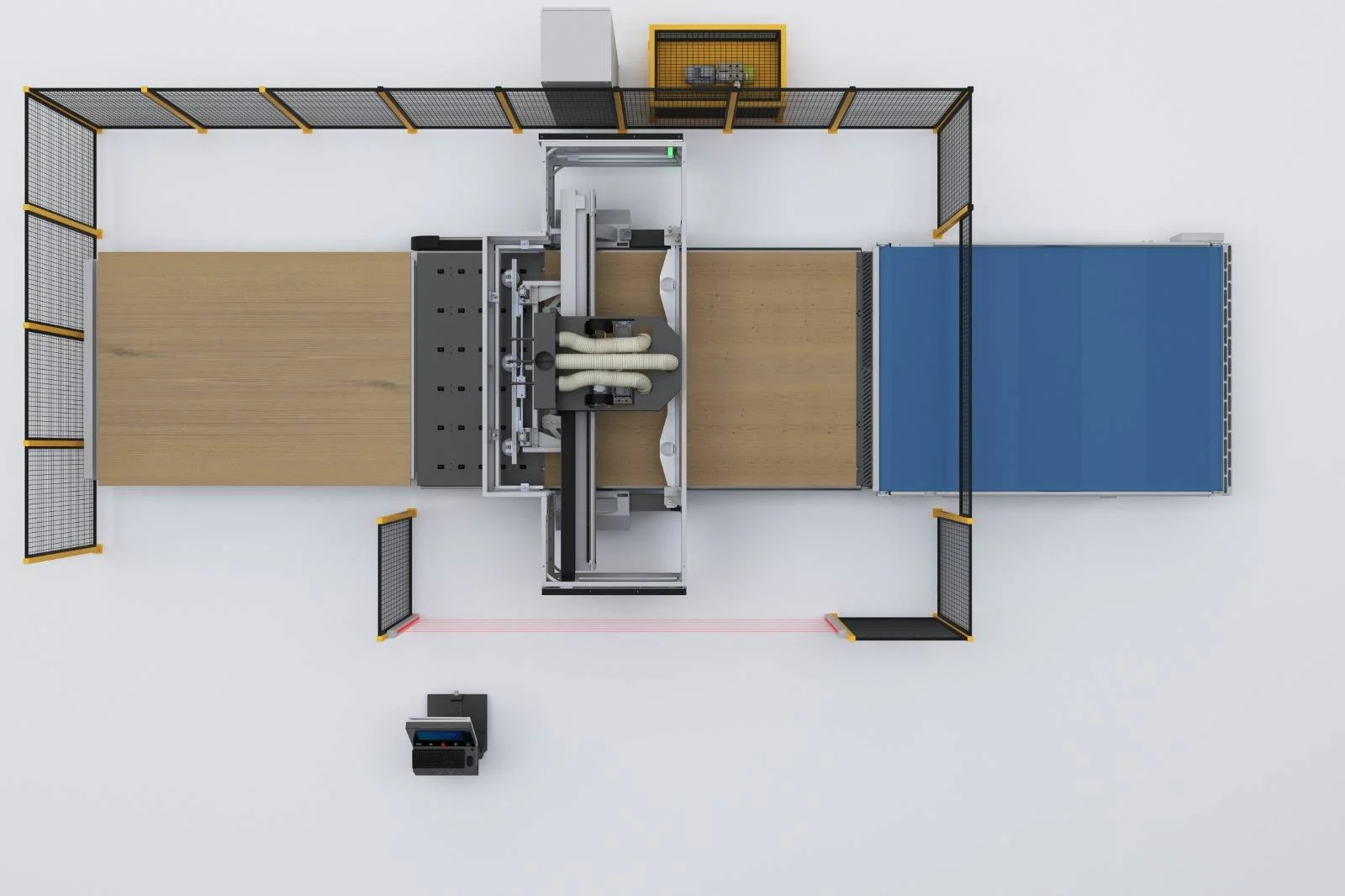

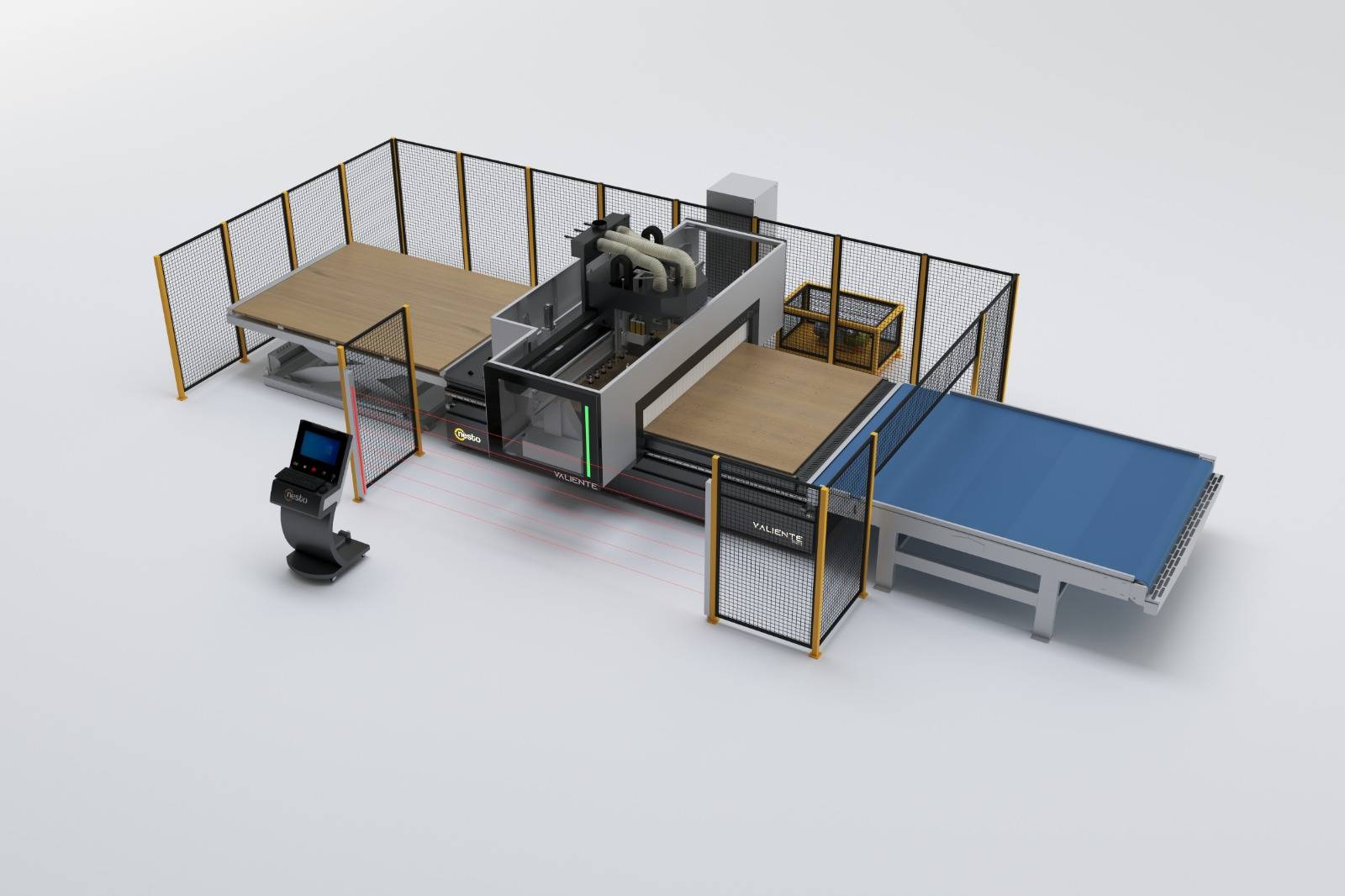

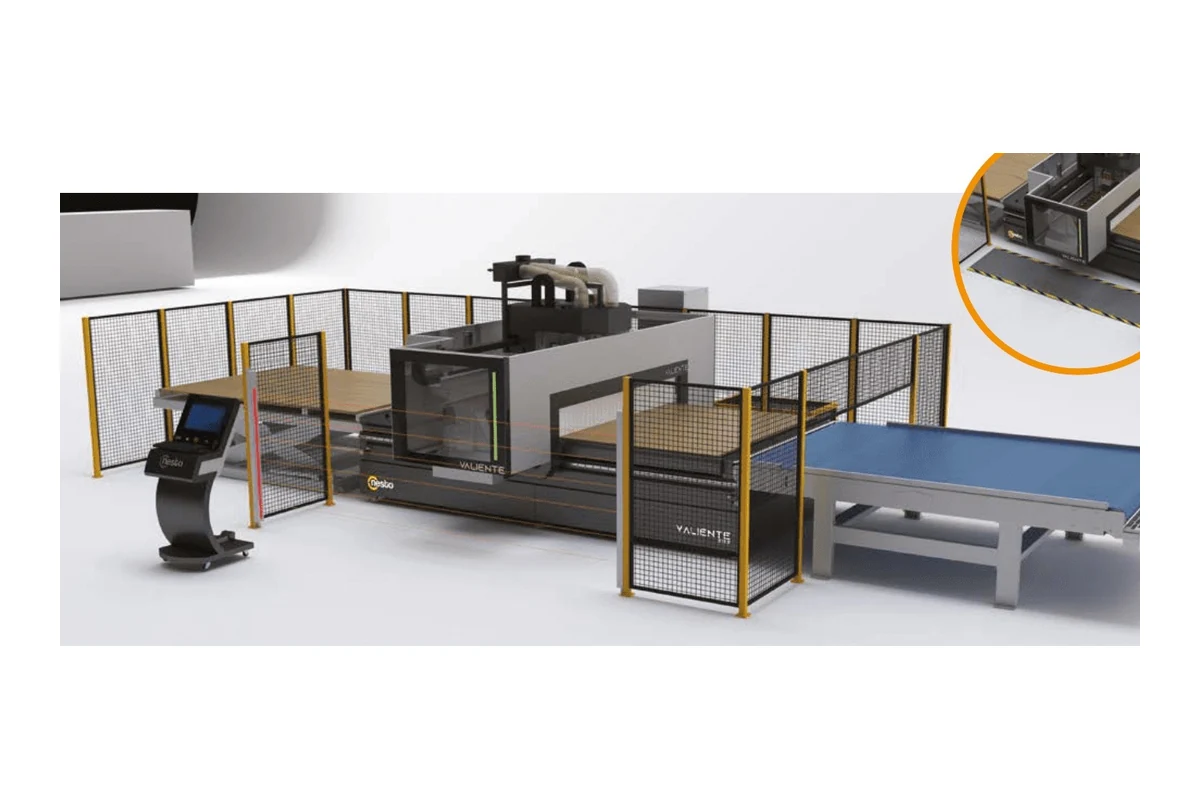

Automated loading and unloading cell
Combines the loading lift, vacuum transfer, machining center, sweeping, unloading conveyor and safety boundary in a coordinated panel-production flow.
Typical applications
- Furniture-panel routing and drilling
- Cabinet and casework production
- Nesting and sheet optimization
Model selection
Frequently asked questions
What production is the Valiente 3-axis CNC machining center designed for?
Valiente is designed for repeatable processing of panel furniture, kitchen units, tables, chairs, accessories, sofa frames and similar wood-based components. It combines routing, sizing, drilling, grooving, nesting and 3D surface machining on one platform.
What are Valiente’s work area, machine dimensions and weight?
The standard work area is 2,100 × 2,800 mm (82.68 × 110.24 in). Machine dimensions are 4,440 × 4,000 × 2,600 mm (174.80 × 157.48 × 102.36 in), and total weight is 4,500 kg (9,921 lb).
Which machining operations can Valiente perform?
The Hiteco spindle supports routing, sizing, grooving, nesting and 3D surface machining. Vertical drilling can be added with the optional FAM 9 unit for Minifix, hinge, shelf-hole and similar patterns.
What do the HSK F63 spindle and moving 14-position tool magazine provide?
The Hiteco HSK F63 spindle delivers 9.5–11 kW at up to 24,000 rpm with automatic tool changing. The moving 14-position magazine travels under the bridge, reducing tool-change travel in multi-operation programs.
How does Valiente hold panels during machining?
A six-zone vacuum table lets the operator activate the holding area according to panel size. The standard VPS dry-type pump supplies 250 m³/h vacuum capacity, while a Becker pump can be selected for different production requirements.
Which equipment is standard and which options are available for Valiente?
Standard equipment includes the Hiteco spindle, TPA industrial control, moving 14-tool magazine, ILC automatic lubrication, automatic tool measurement, VPS dry vacuum pump, Pegasus CAD/CAM and sweeping/unloading. Options include a 2,100 × 3,660 mm table, automatic loading, lift table, unloading conveyor, safety fence, Becker vacuum and FAM 9 drilling.
Can Valiente be integrated into an automated production line?
Yes. Automatic vacuum loading, a 5,000 kg lift table, unloading conveyor, safety fencing and transfer modules can be combined around Valiente. TPA control and Pegasus CAD/CAM connect design, machining and reporting in one production workflow.
