Maestro 5 Axis CNC Machining Center
Configure the right machine for your production
Share your part, material and capacity requirements. Our team will help you determine the suitable machine configuration.
- Application-focused configuration
- Technical sales guidance
- Installation and service planning
You can include part drawings and production expectations in the quote form.
General Features and Production Capabilities

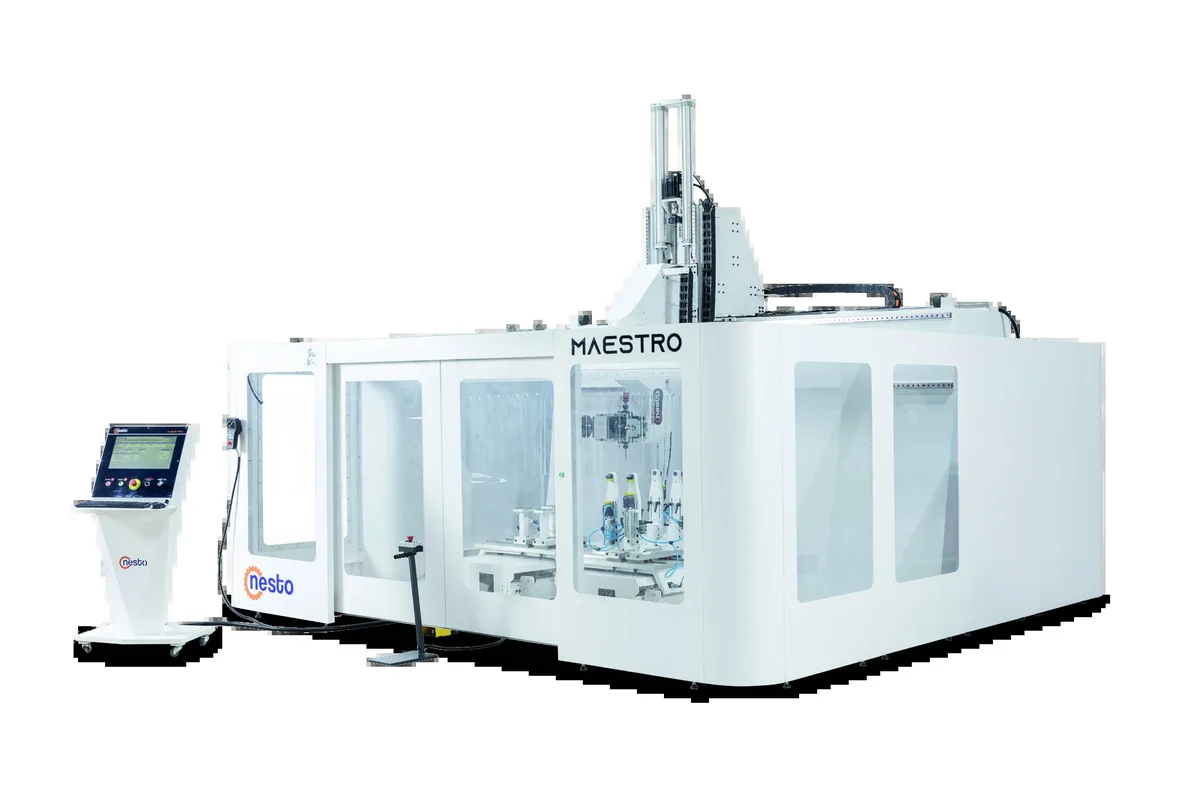

Five-axis machining for solid-wood furniture components
Maestro combines multi-face milling, drilling, shaping and angled machining for complex chair, table, sofa and decorative furniture components in one controlled production platform.

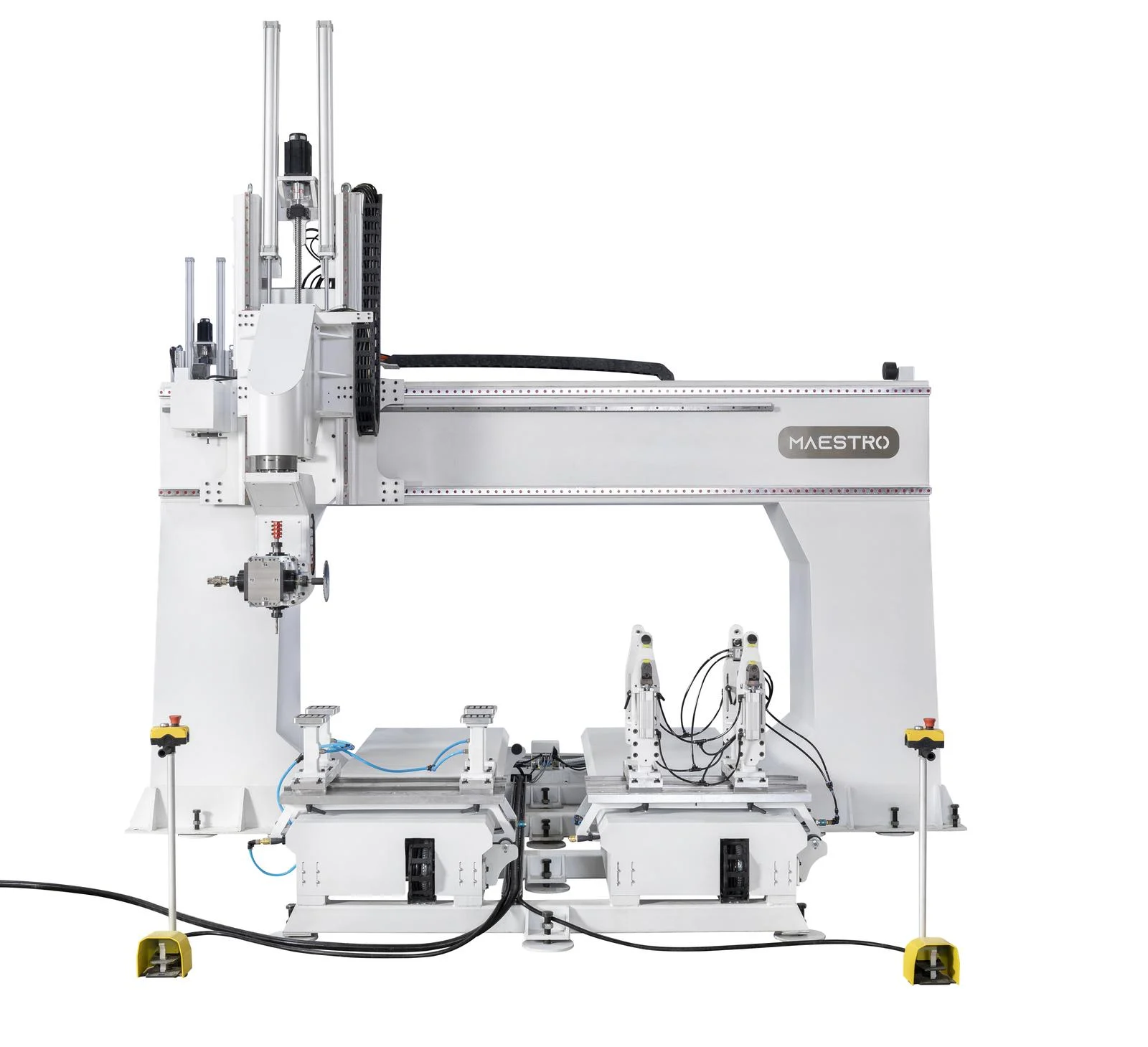

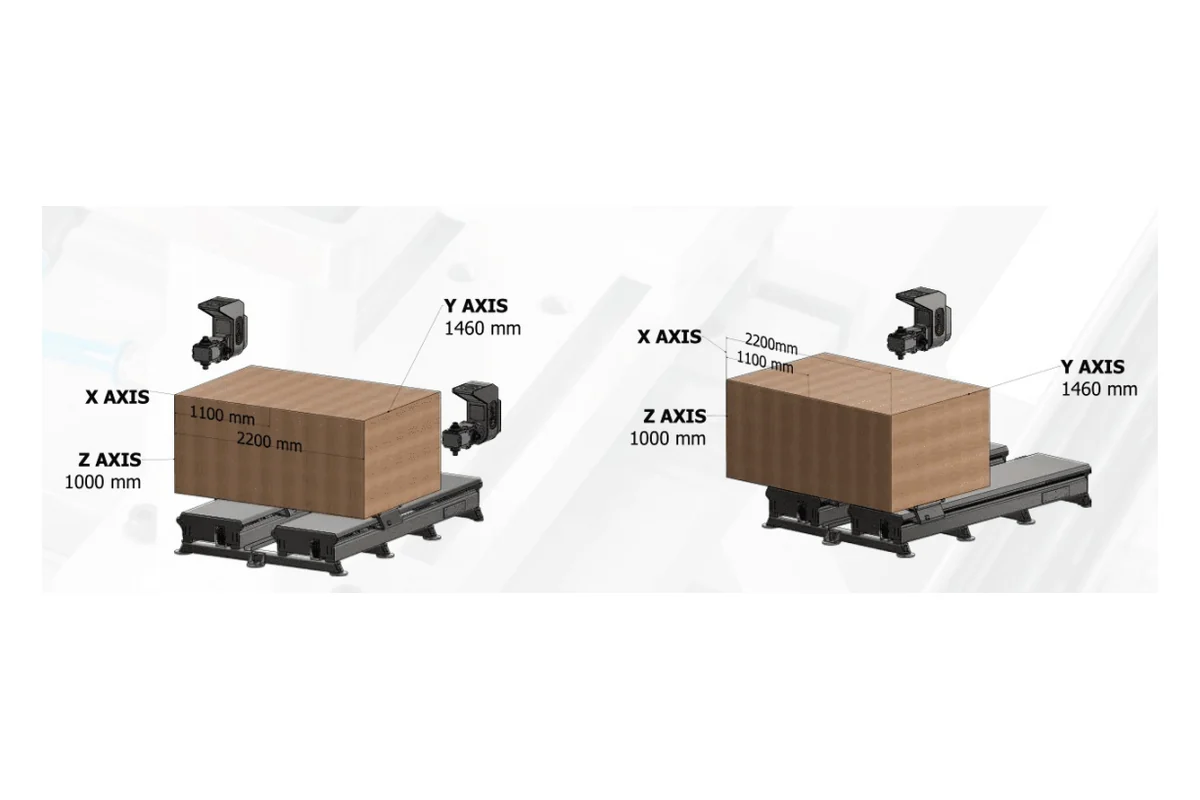

Twin X zones for a continuous production rhythm
Two 1,100 mm X zones provide a combined 2,200 mm envelope. One area can be prepared while the other is in cycle, subject to the workholding and safety plan.
- 1,100 + 1,100 mm X
- 1,460 mm Y
- 1,000 mm Z

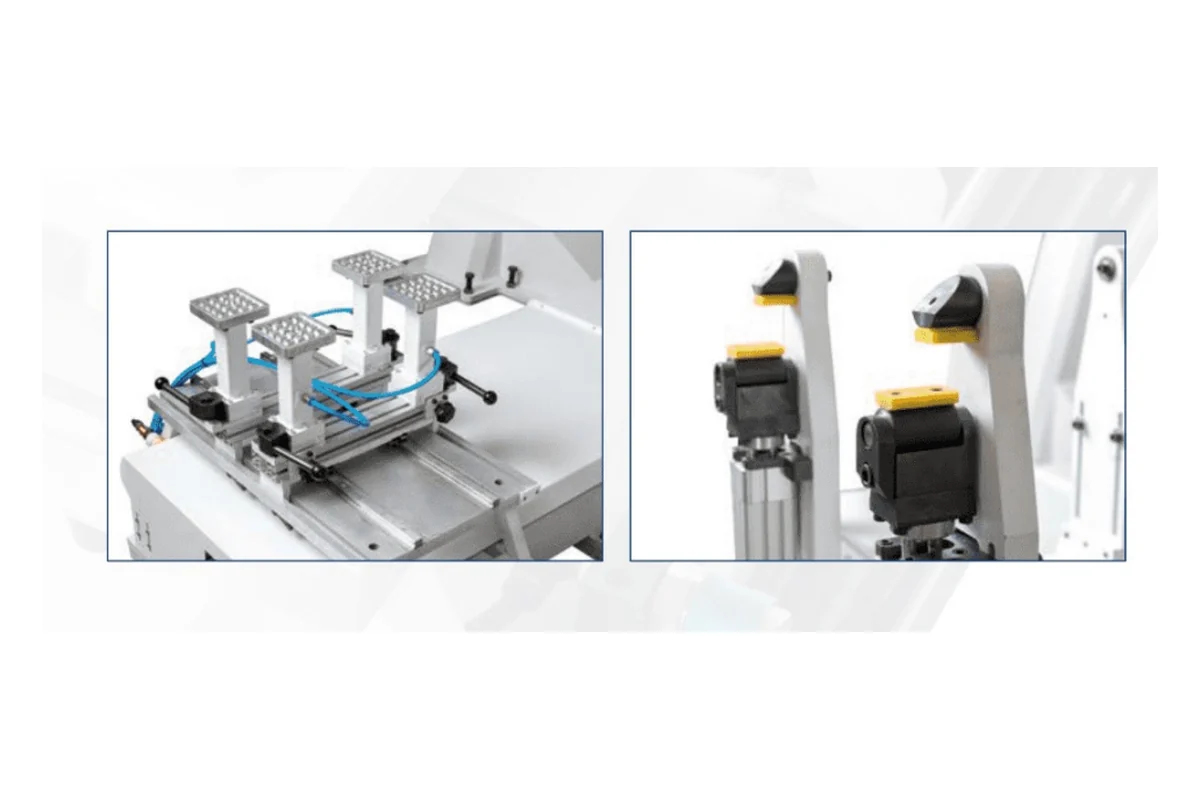

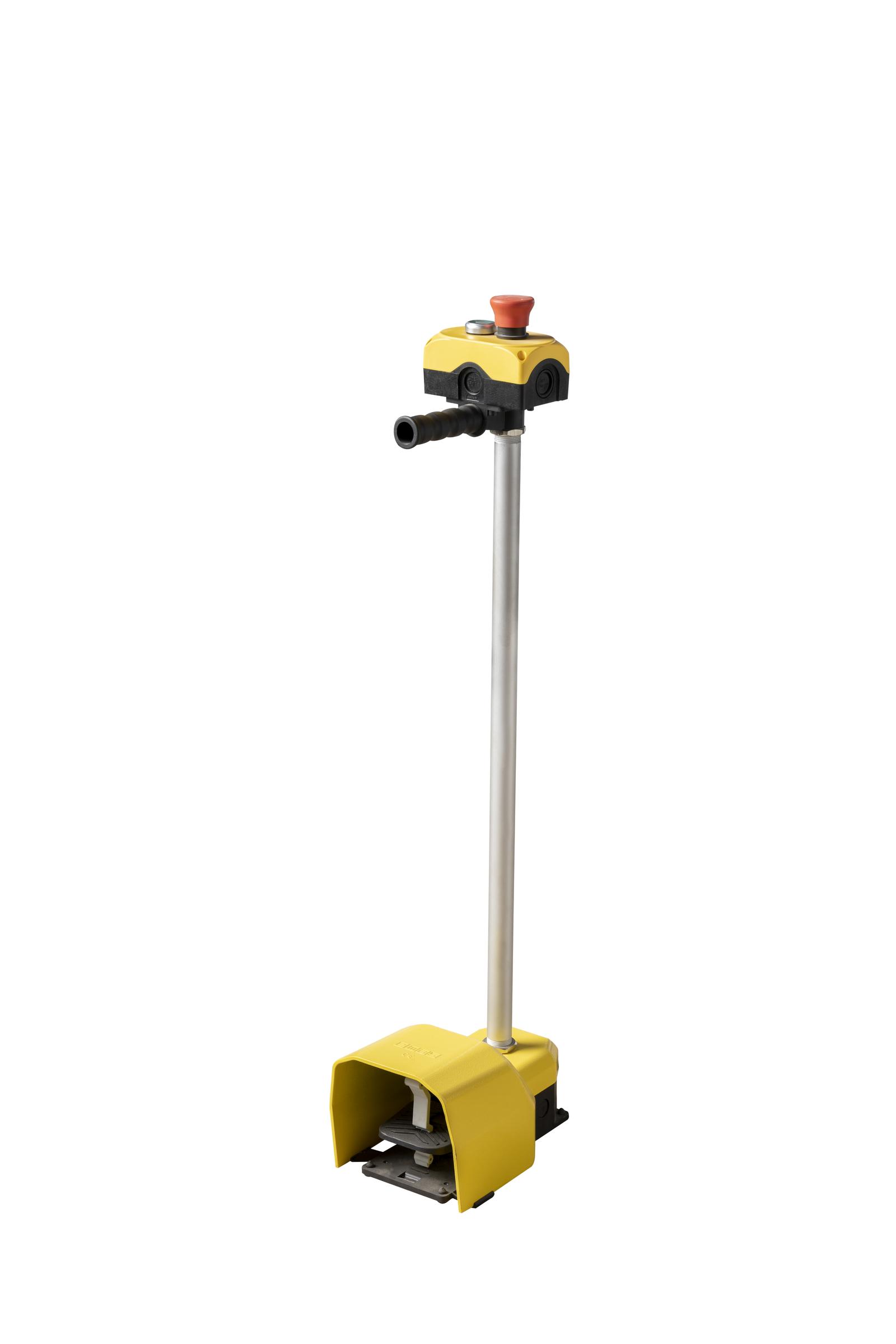

Flexible workholding for different part geometries

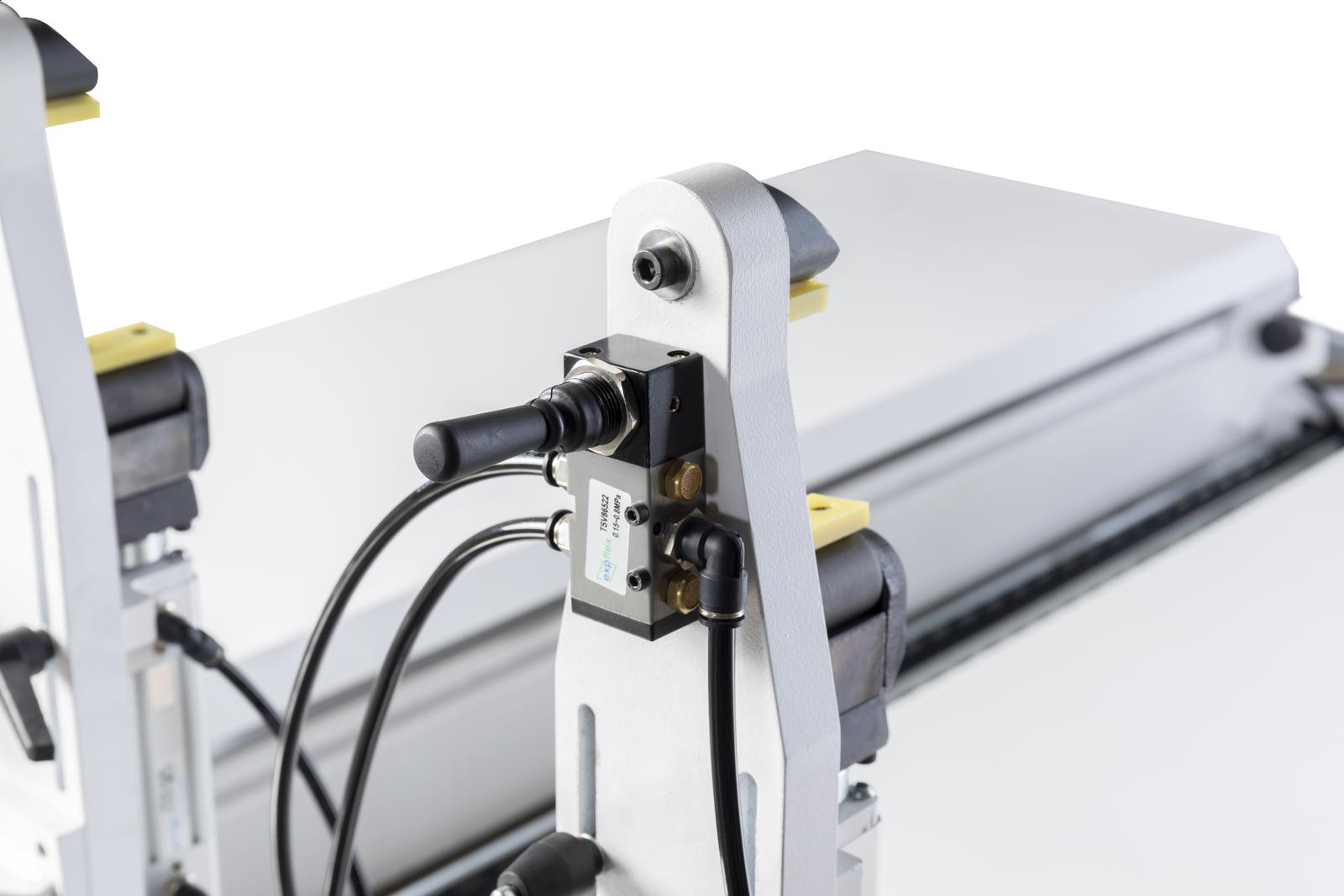

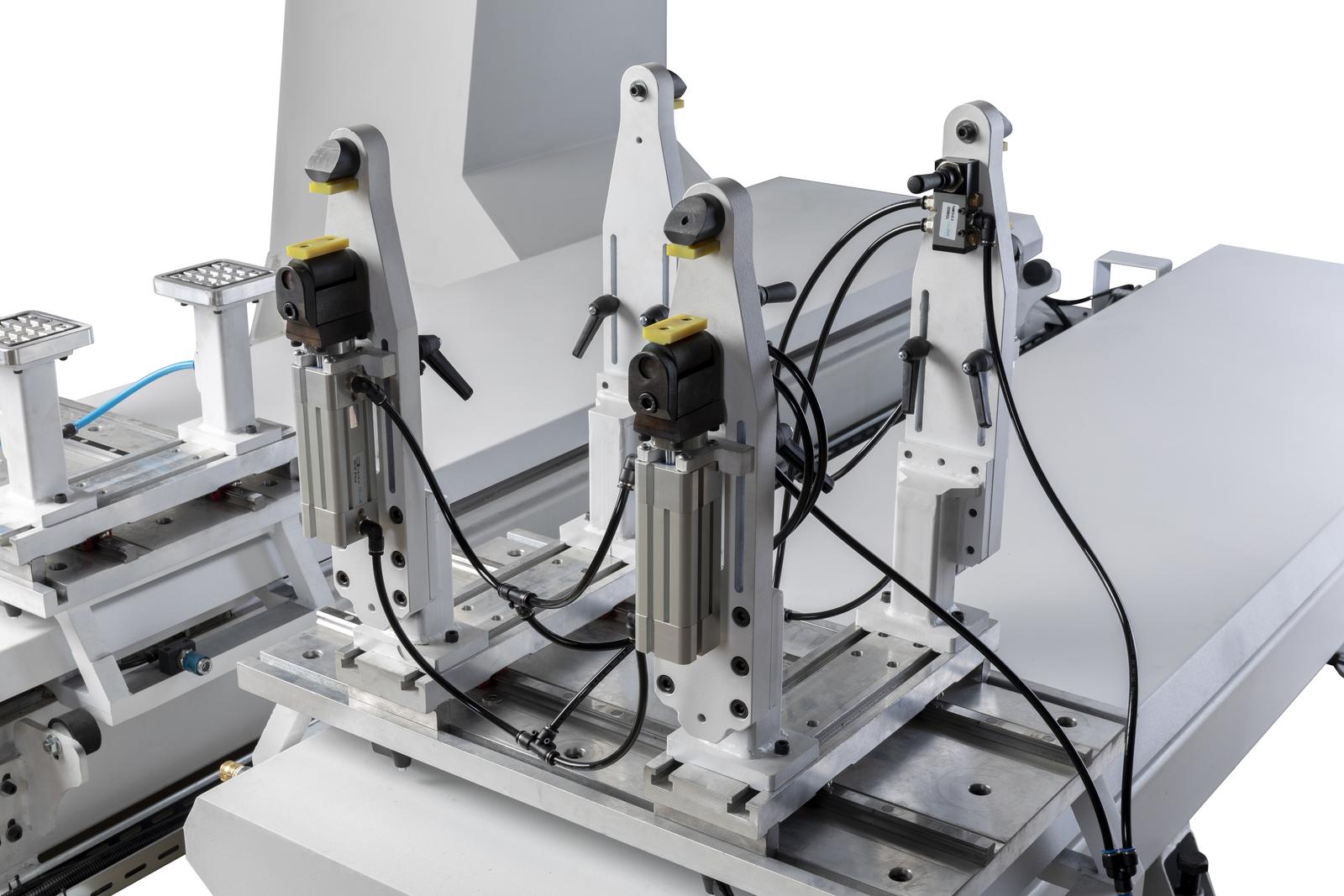

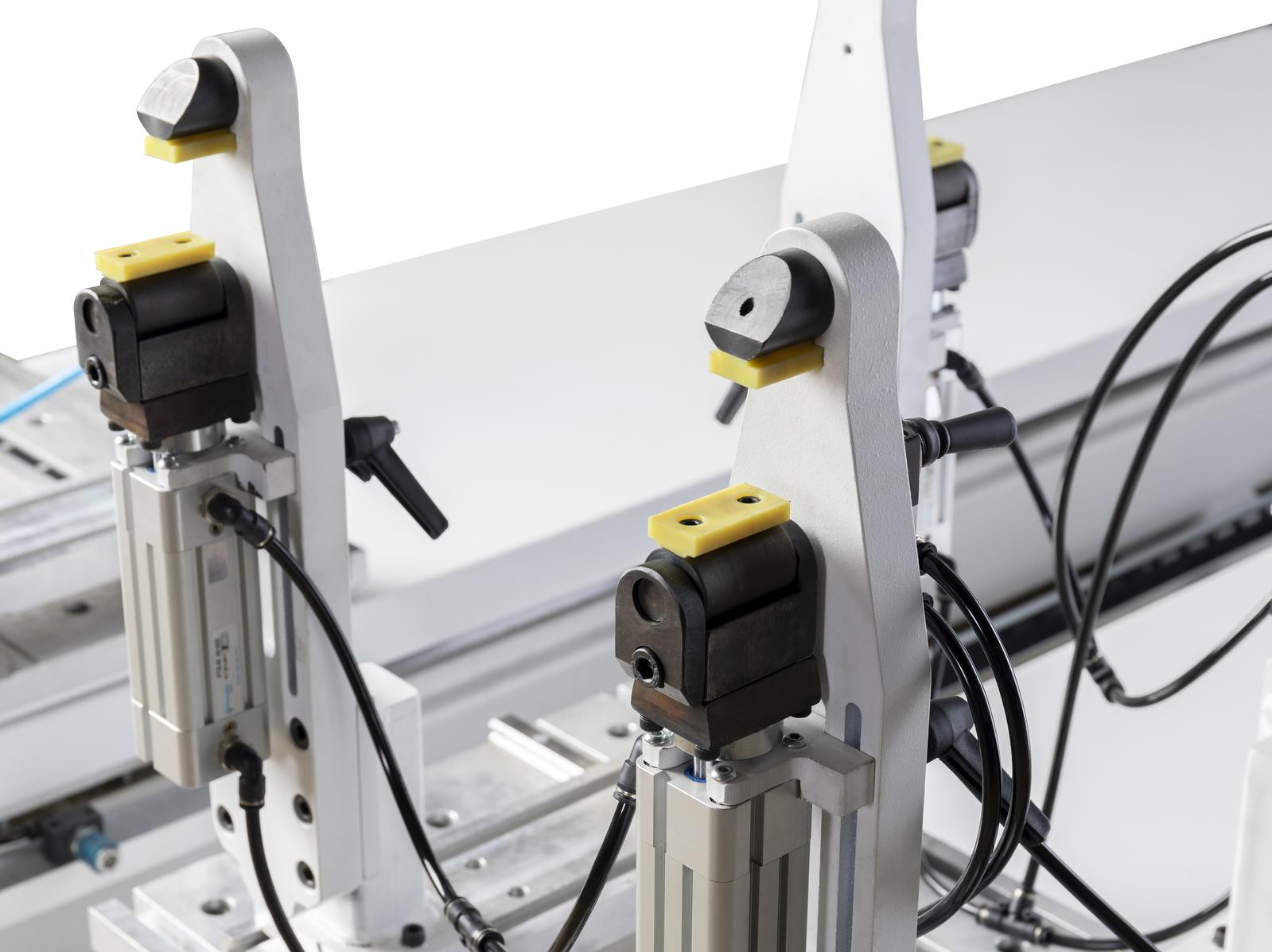

Adjustable pneumatic supports and clamps help position solid-wood components for repeatable multi-face machining. The final fixture plan is prepared around the blank, finished geometry and tool access.

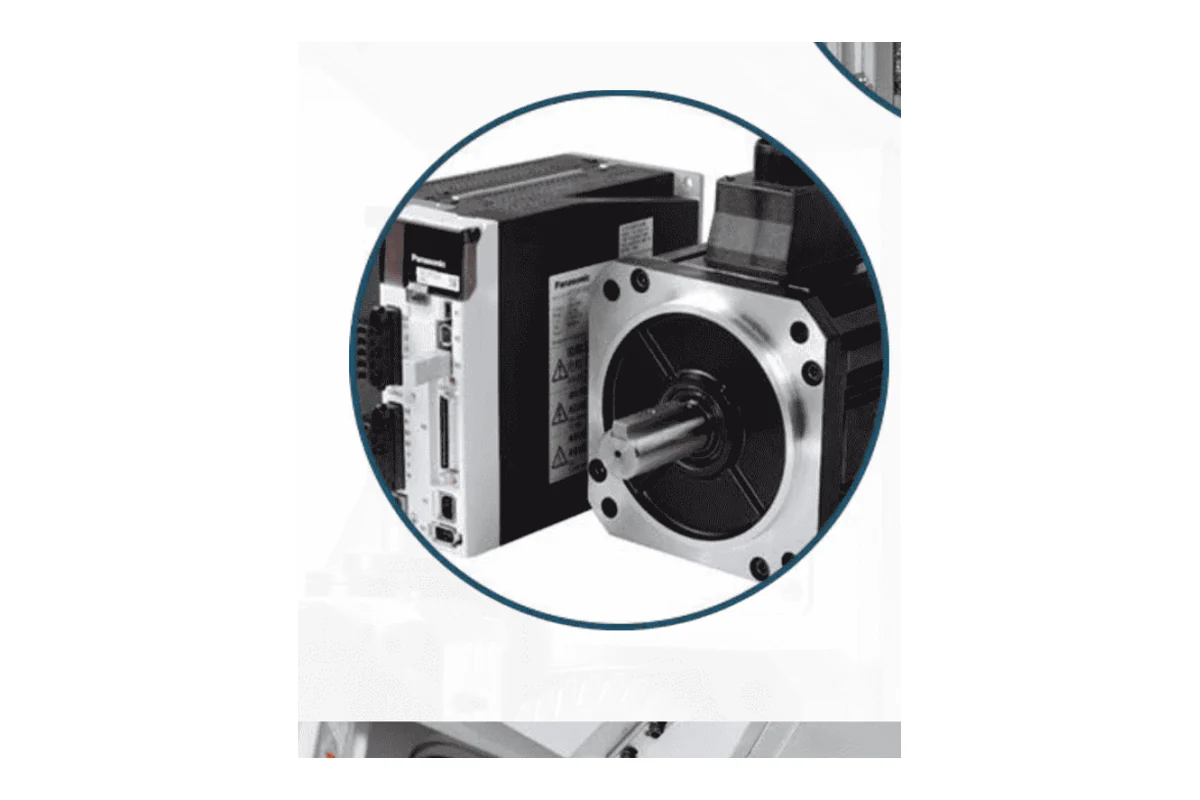

Servo-driven precision axis movement

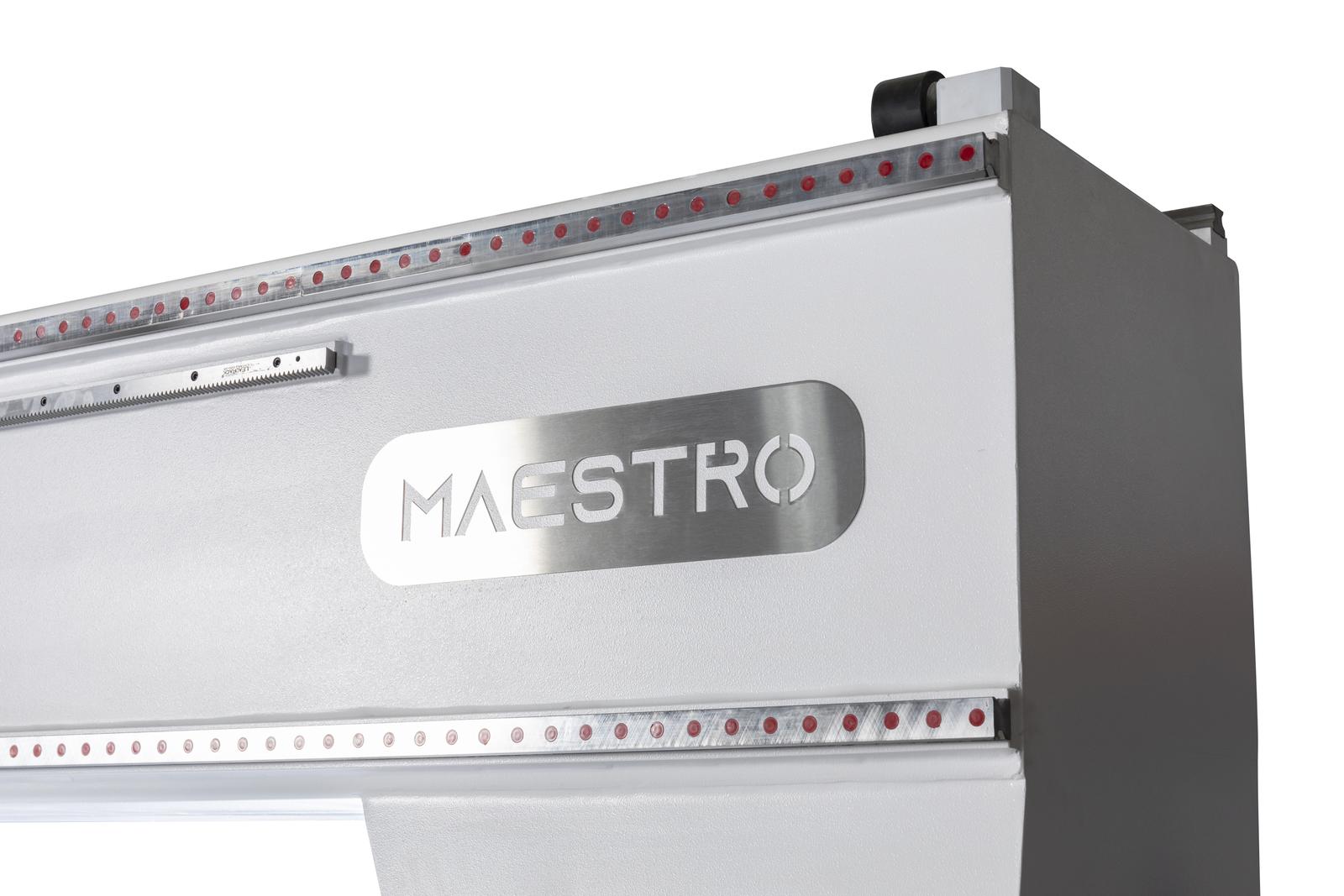

Panasonic servo motors, rack-and-pinion transmission and Schneeberger linear-motion components support controlled acceleration and stable positioning across the machining envelope.

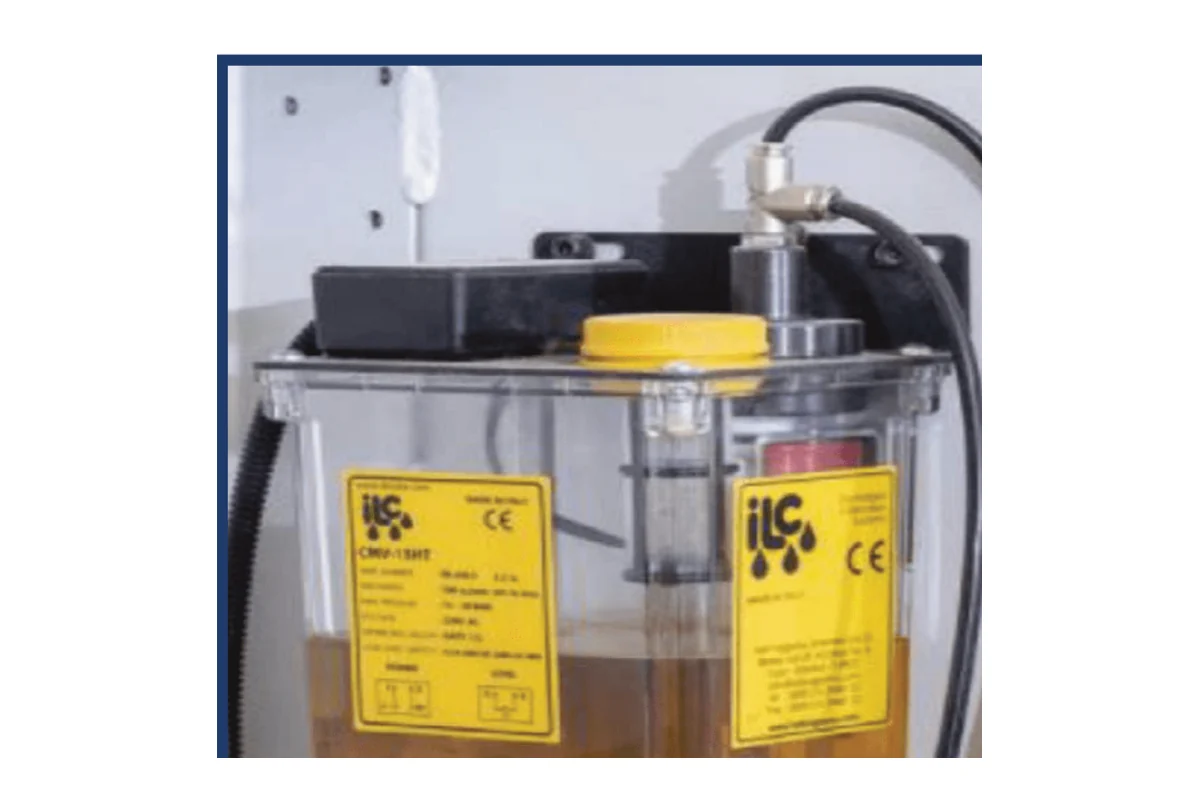

Central automatic lubrication with adjustable intervals
The ILC unit distributes lubricant to motion components at operator-defined intervals, helping maintain a consistent maintenance routine and reduce avoidable stoppages.
TPA industrial control and remote diagnostics
The Windows-based industrial control provides EtherCAT communication, production reporting and a purpose-built operator interface. Integrated connectivity supports remote service diagnostics when required.

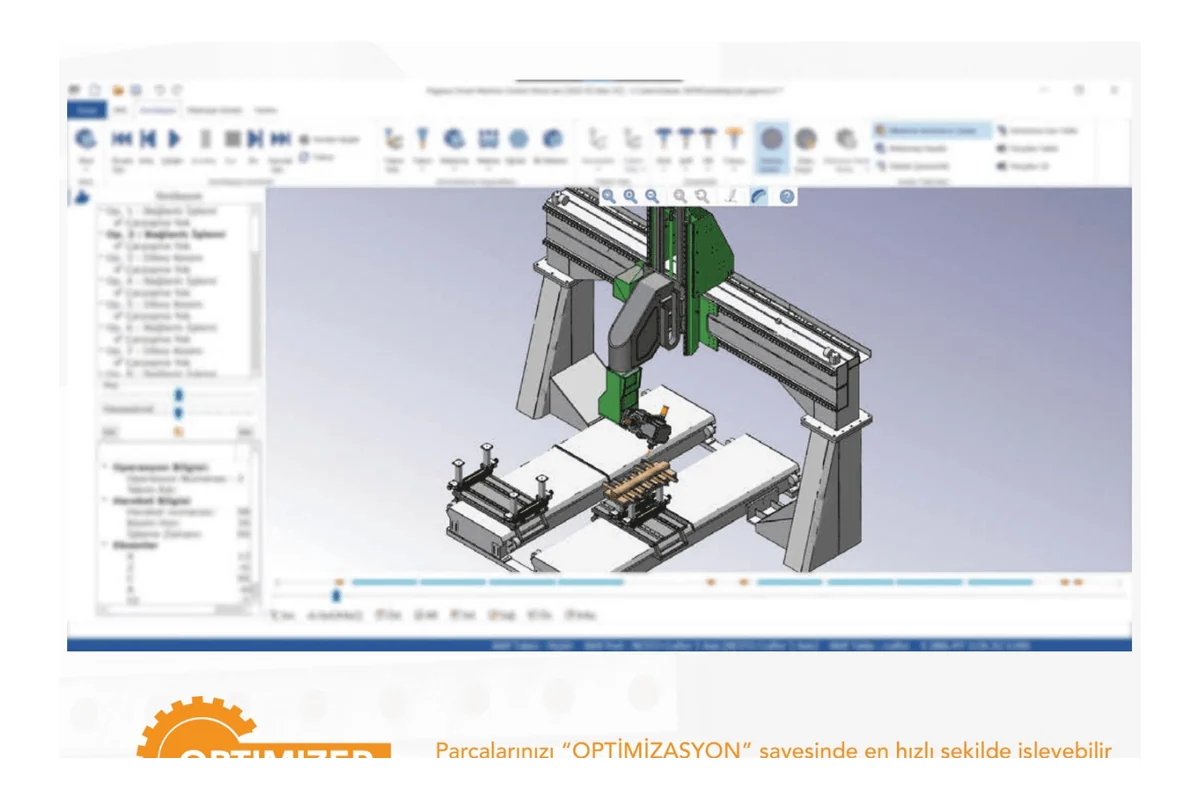

CAD/CAM, 3D simulation and production optimization
Pegasus supports 3D preparation, simulation and supported STL, DWG, DXF and IGES data workflows. SMC Wood Optimizer helps order machining steps for a more efficient digital path.

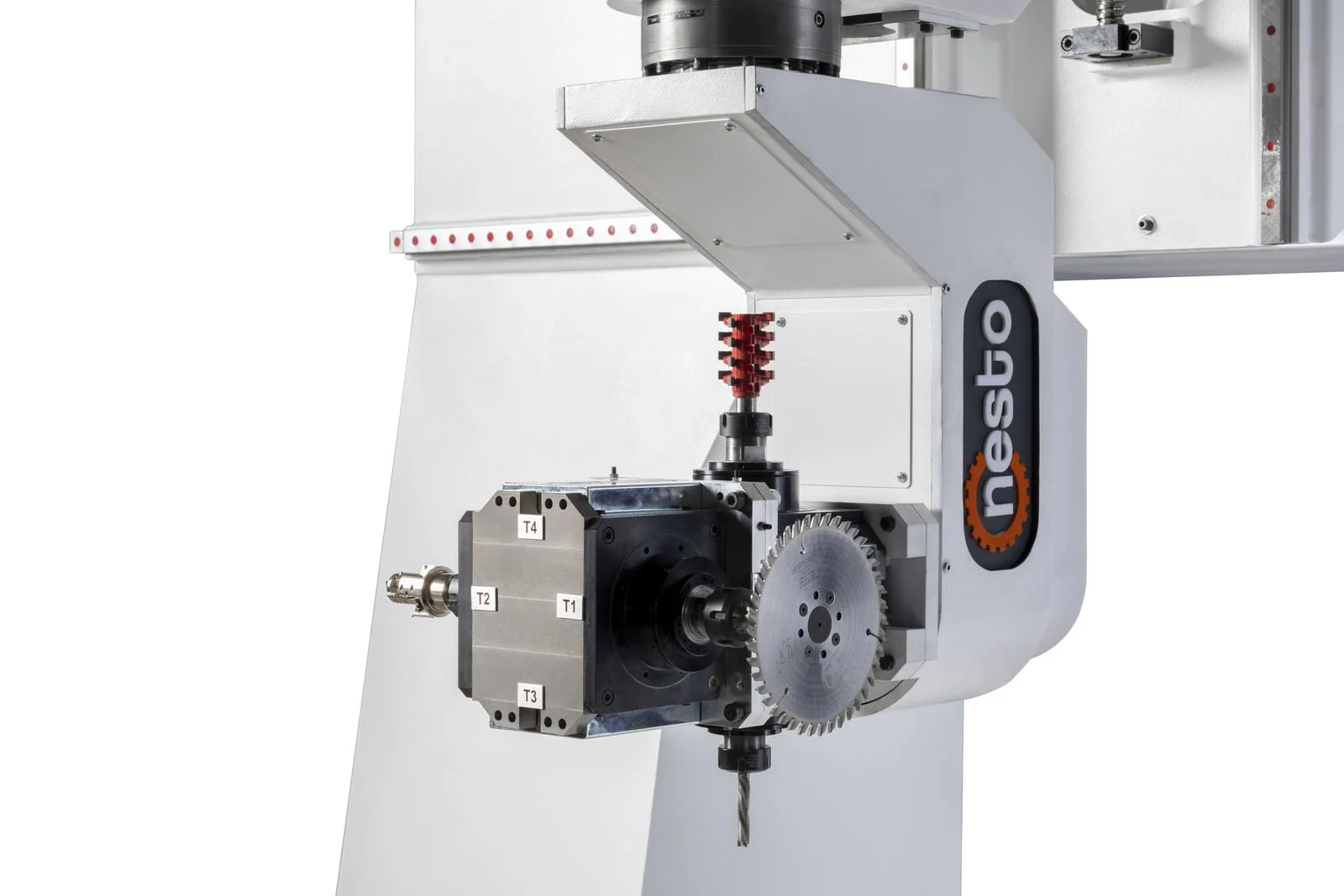

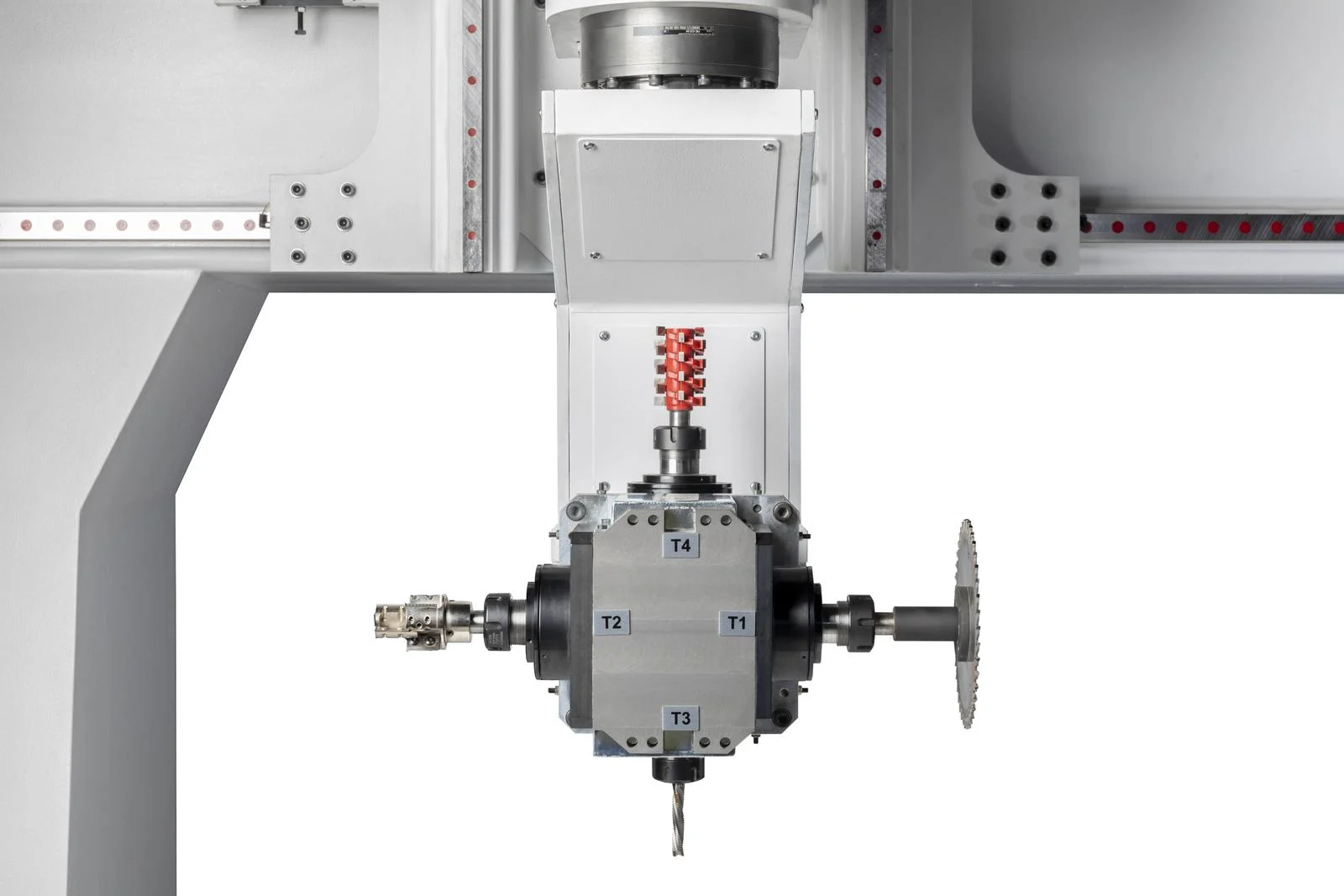

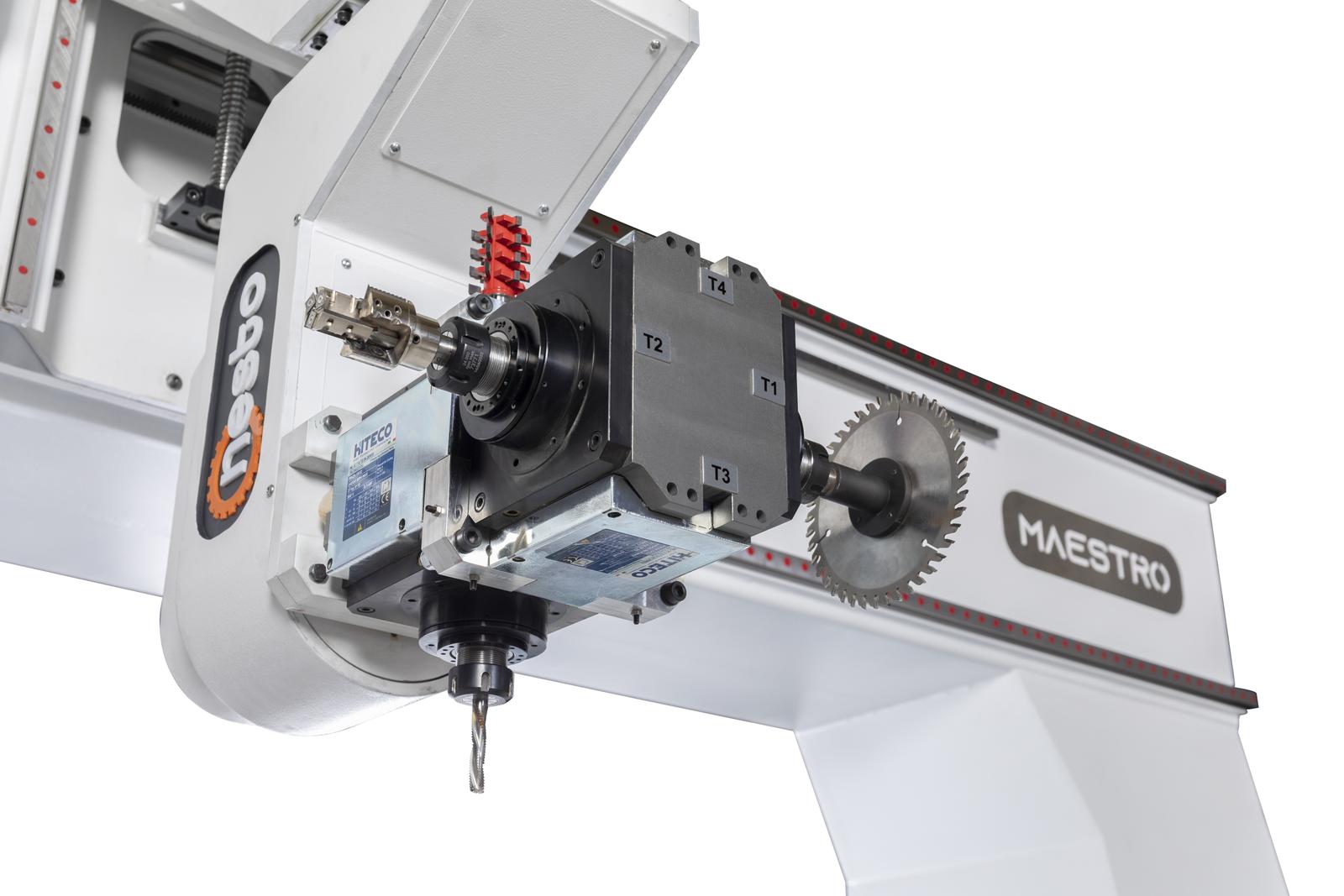

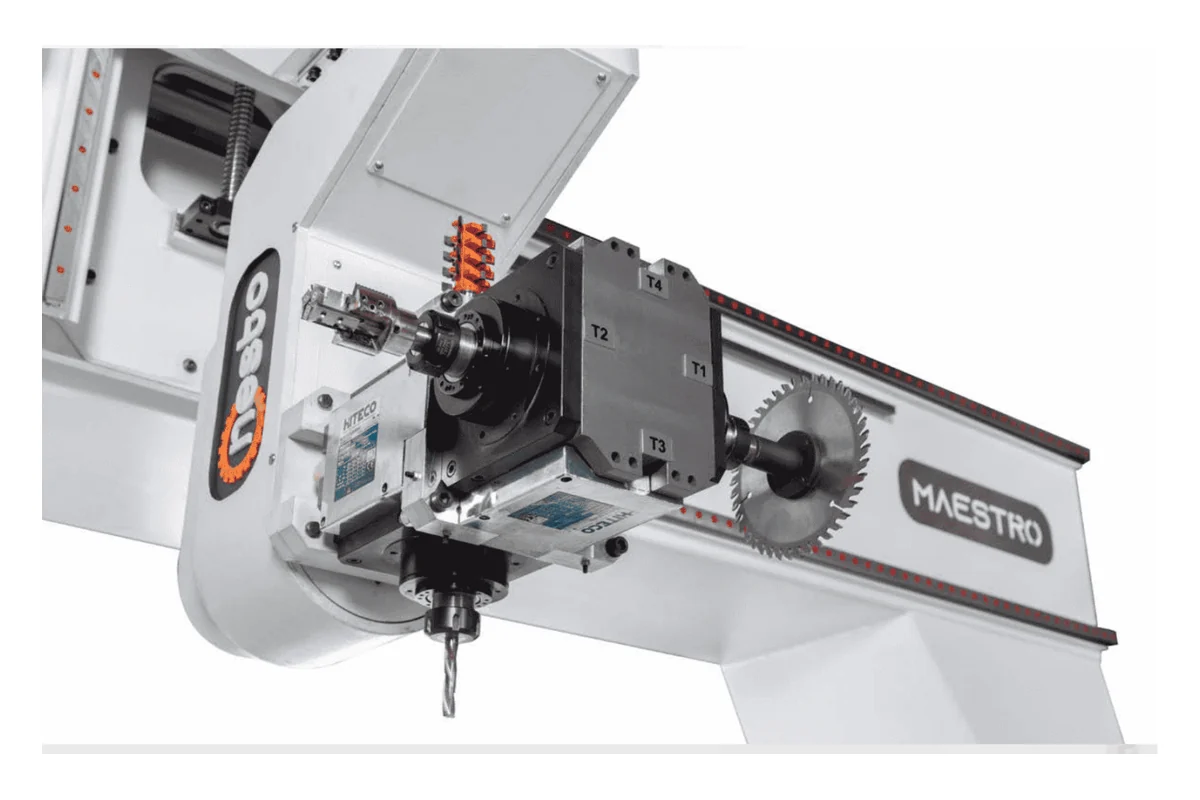

Hiteco 2+2 head for multi-direction machining
The 24,000 rpm Hiteco head combines vertical and cross-oriented tool outputs to reach different faces and details with fewer workholding changes.
Technical Specifications
| Specification | Standard machine |
|---|---|
| Control unit | TPA |
| Twin X-axis working zones | 1,100 + 1,100 mm43.31 + 43.31 in |
| Y-axis travel | 1,460 mm57.48 in |
| Z-axis travel | 1,000 mm39.37 in |
| Y1 / Y2-axis motors | 1.5 kW · rack-and-pinion |
| X-axis motor | 1.5 kW · rack-and-pinion |
| Z-axis motor | 3 kW · braked |
| Axis reducer | Liming FE Series |
| Spindle motor | Hiteco ML-1C · 7.5/12 kW · 24,000 rpm · ER32 Cross 2+2 Ends |
| Vacuum system | VPS dry type · 250 m³/h |
| Lubrication system | ILC central automatic lubrication |
| Machine dimensions (L × W × H) | 3,944 × 2,890 × 3,887 mm155.28 × 113.78 × 153.03 in |
| Total installed power | 31 kW |
| CAD/CAM software | Pegasus CAD/CAM Milling Wood Ultimate |
| Production optimization | Pegasus SMC Wood Optimizer |
| Linear motion group | Schneeberger recirculating ball system |
| Electrical components | Schneider Electric |
| Servo motors and drives | Panasonic |
Standard Main Equipment

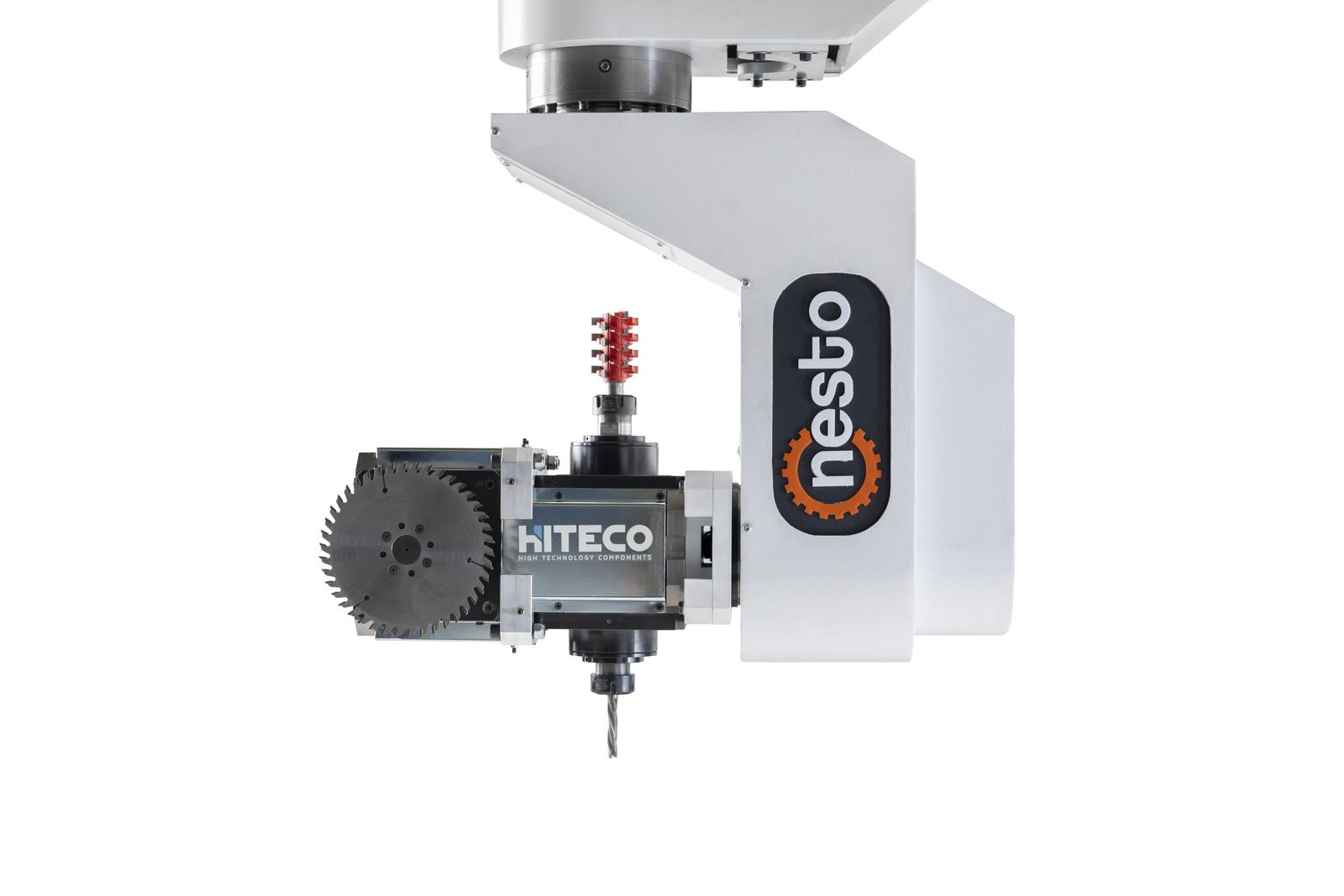

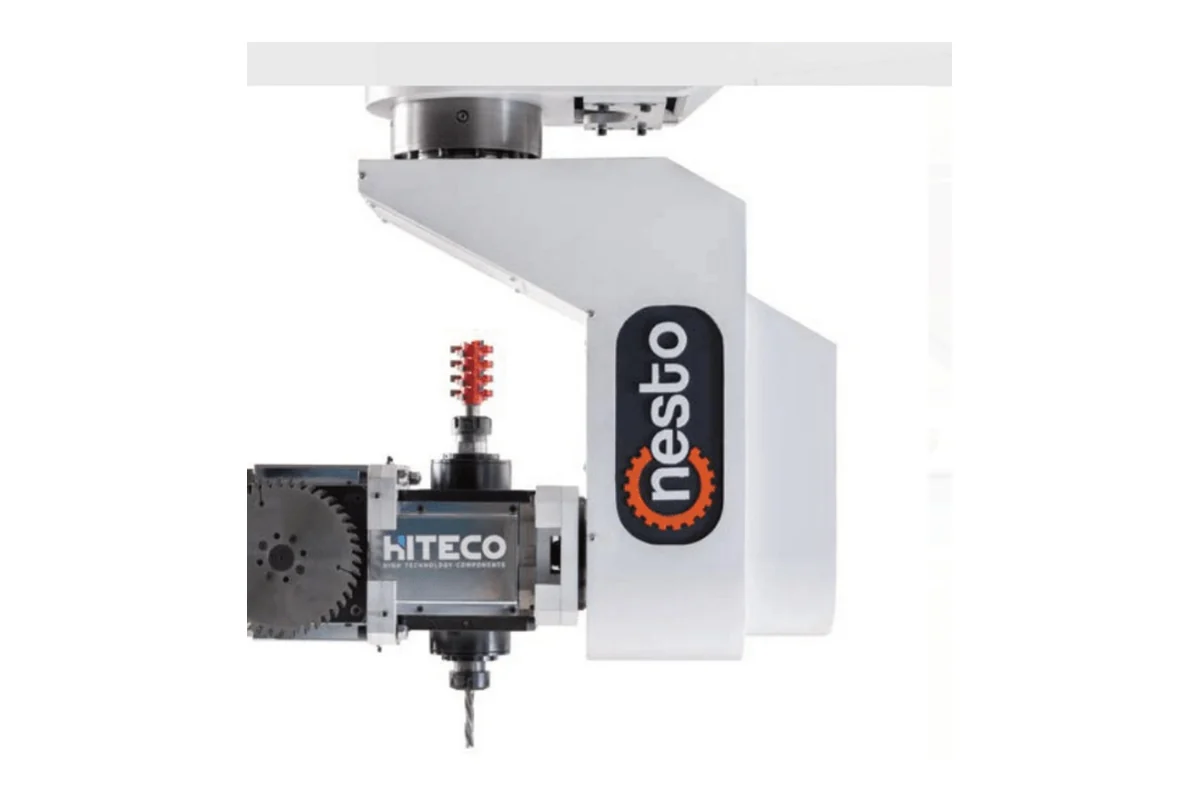

Hiteco ML-1C 2+2 machining head
The ER32 cross head operates at up to 24,000 rpm with ceramic-bearing construction for vertical and lateral machining operations.

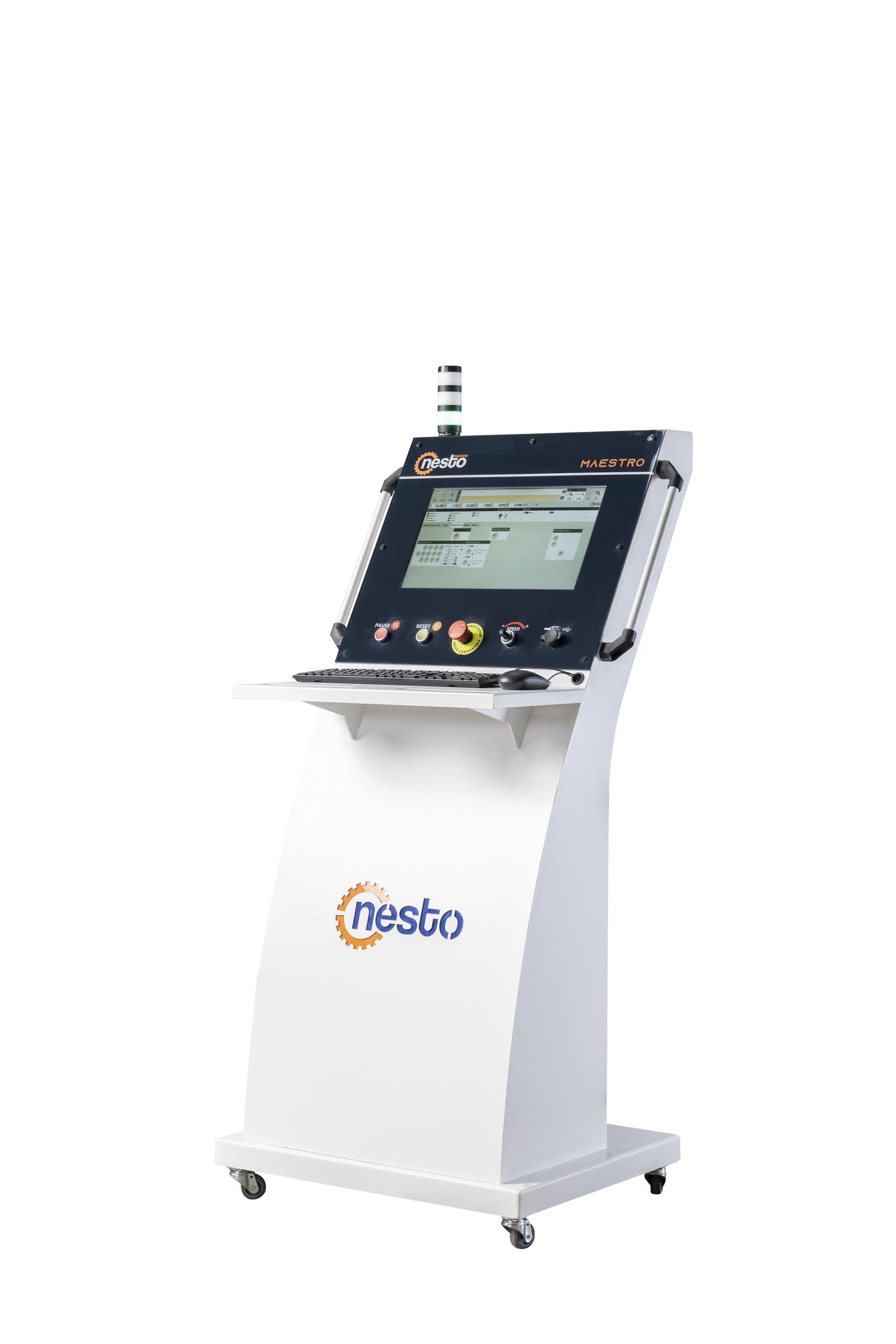

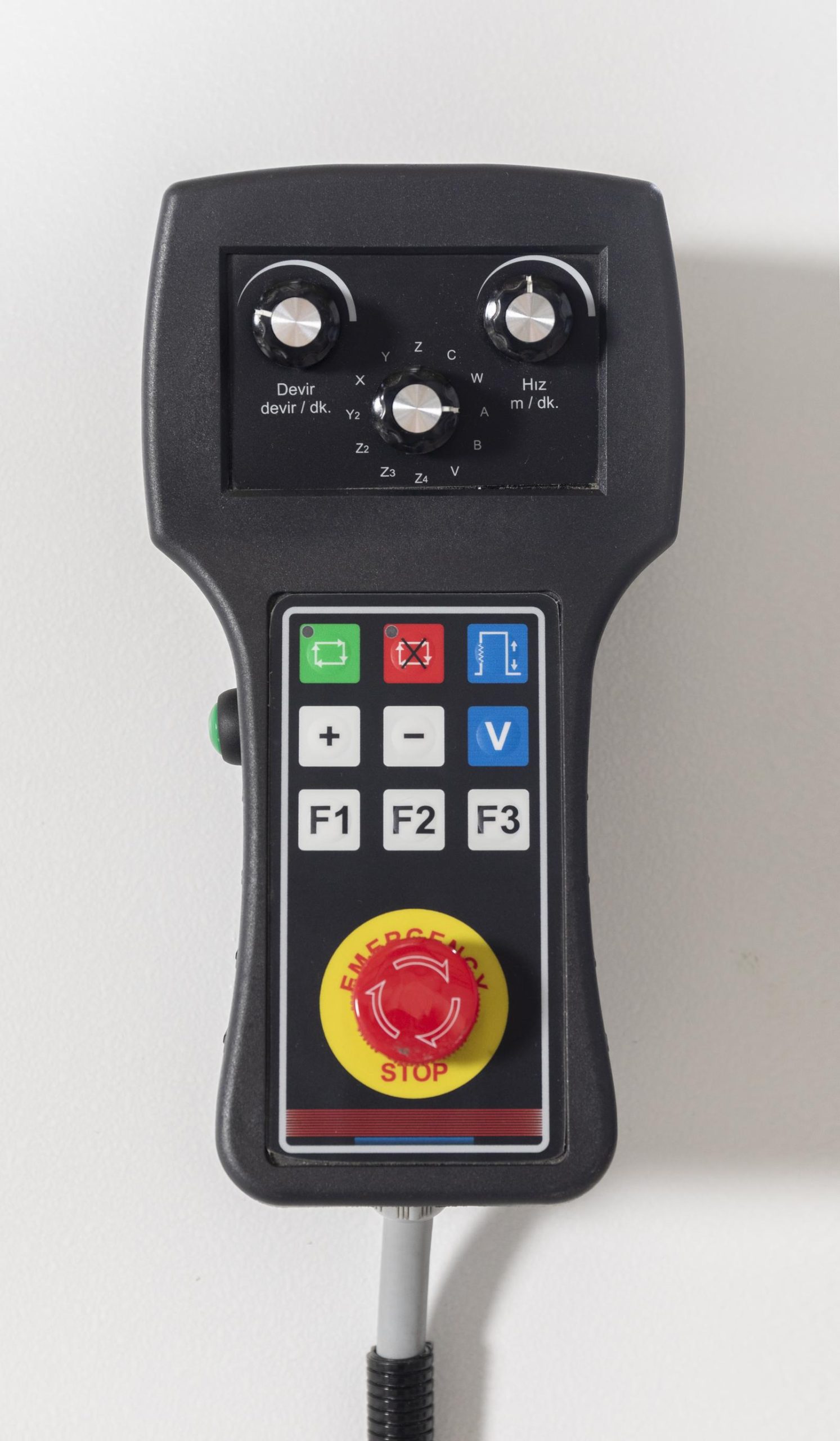

TPA industrial operator control
Windows-based control, EtherCAT communication, detailed production reporting and integrated connectivity are brought together in one operator station.
Pegasus CAD/CAM and SMC optimization workflow
The licensed digital workflow supports model preparation, 3D simulation, compatible file exchange and optimized machining sequencing.

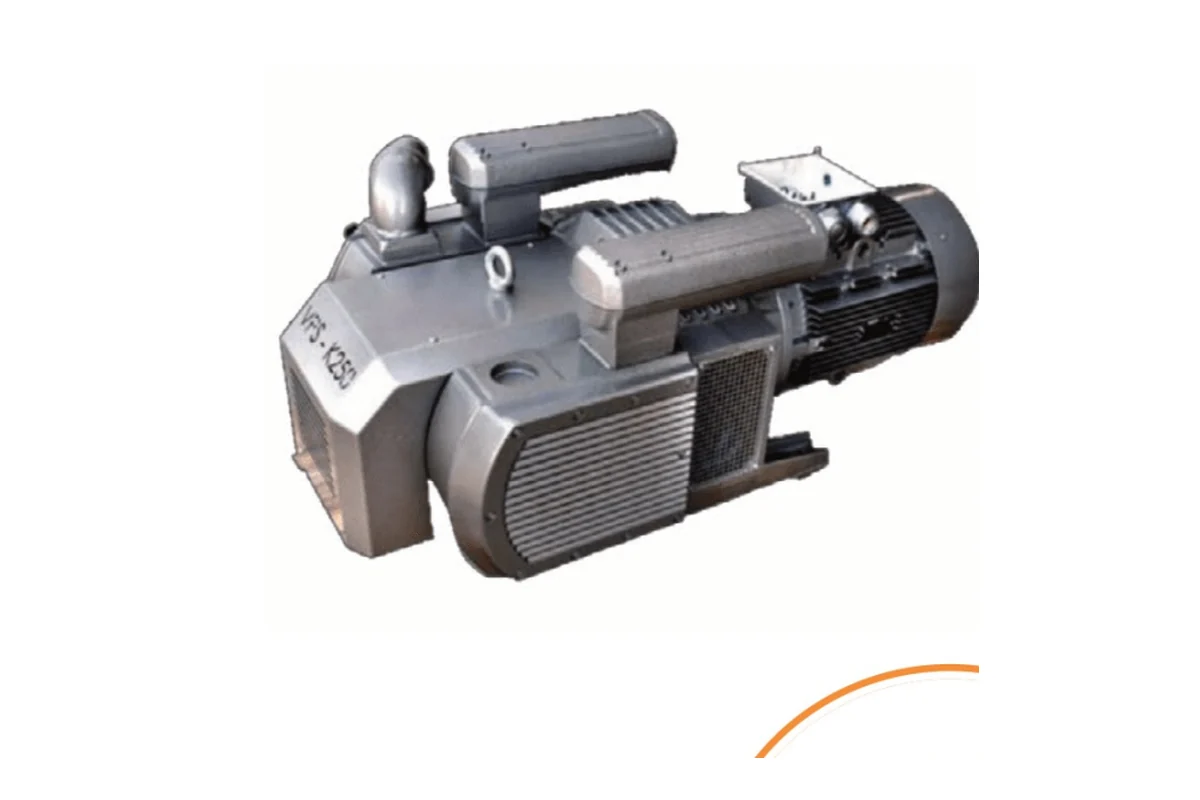

VPS 250 m³/h dry vacuum system
The 380 V, 7.5 kW pump is rated at 250 m³/h and 200 mbar, with a listed operating speed of 1,000 rpm and sound level of 77–79 dB.
- 250 m³/h
- 200 mbar
- 7.5 kW
- 77–79 dB
Schneeberger linear-motion components
Recirculating-ball linear components support low-friction, stable movement along the machining axes.

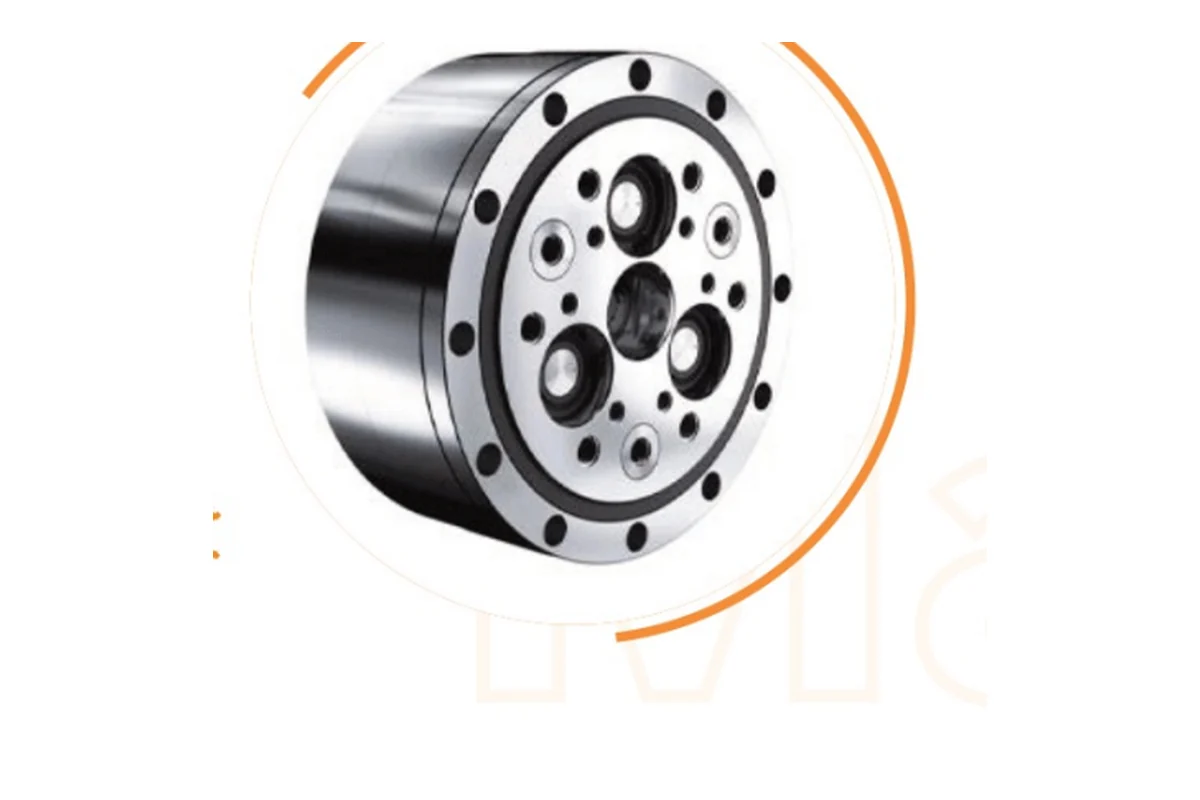

Precision reducer groups
Liming FE Series axis reducers and the Sumitomo reducer shown in the main-equipment configuration support controlled power transmission in their designated motion groups.

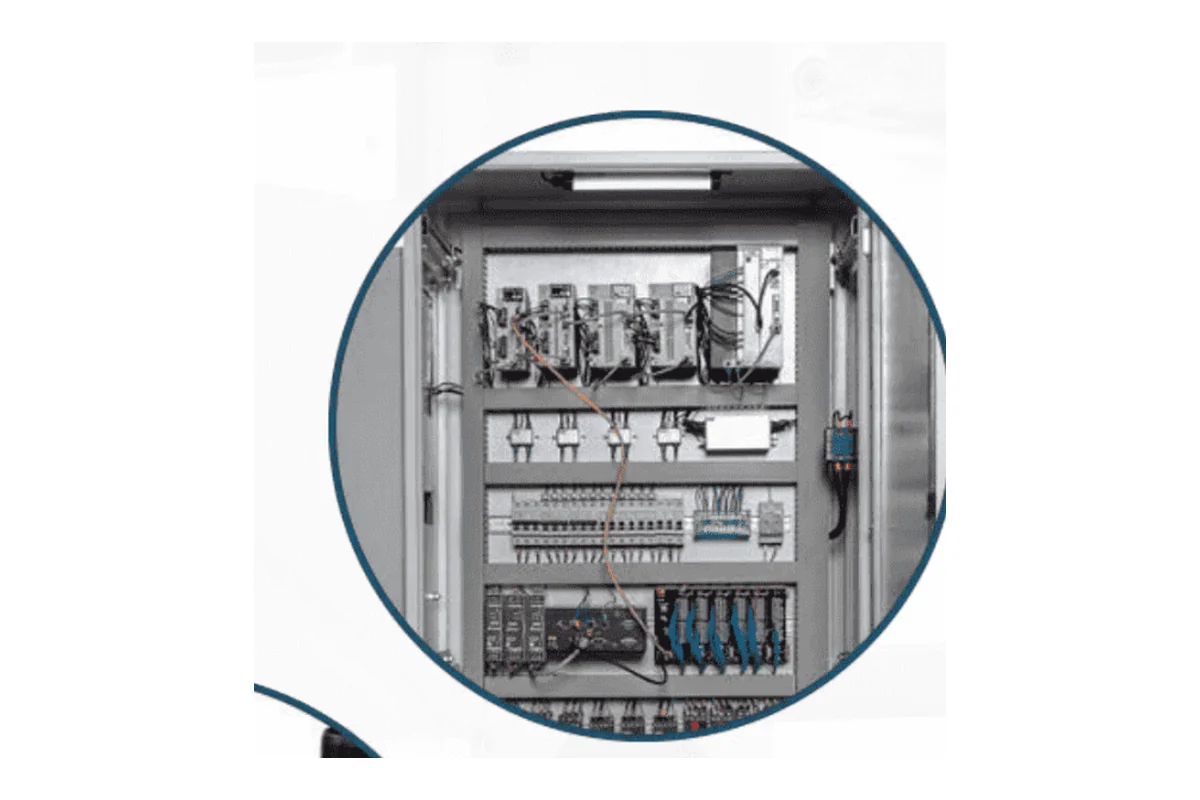

Schneider Electric control cabinet components
Industrial switching and protection components organize the machine electrical cabinet for controlled distribution and service access.
Panasonic servo motors and drives
Servo motors and matched drives control axis acceleration, positioning and repeatable motion in the programmed cycle.
Typical applications
- Multi-face solid-wood machining
- Complex furniture components
- Chair legs
- Table legs
- Decorative profiles and columns
Model selection
Frequently asked questions
Which parts can the Maestro 5-Axis CNC Machining Center produce?
It is designed for complex solid-wood furniture components such as chair, table, sofa and armchair parts, decorative profiles and other pieces requiring multi-face milling, drilling, shaping or angled machining. Final suitability is evaluated from the drawing, blank, workholding plan and required tool access.
What is the working envelope and how do the twin X zones work?
The X axis is divided into two 1,100 mm working zones for a combined 2,200 mm envelope. Y travel is 1,460 mm and Z travel is 1,000 mm. Depending on the fixture and safety plan, one area can be prepared while the other is machining to support a continuous production rhythm.
What machining operations does the Hiteco 2+2 head support?
The ER32 cross head combines vertical and lateral tool outputs at up to 24,000 rpm. This arrangement supports multi-face milling, drilling, shaping and angled details with fewer workholding changes; the exact tool path is verified in CAD/CAM for each part.
What do the TPA control and Pegasus software provide?
TPA provides a Windows-based industrial interface, EtherCAT communication, detailed reporting and remote diagnostic connectivity. Pegasus CAD/CAM supports 3D preparation, simulation and compatible STL, DWG, DXF and IGES workflows, while SMC Wood Optimizer helps sequence machining steps efficiently.
Which main equipment is standard on Maestro?
The documented standard configuration includes the Hiteco ML-1C 2+2 head, TPA control, Pegasus CAD/CAM and SMC optimization, VPS 250 m³/h dry vacuum system, ILC automatic lubrication, Schneeberger linear components, Panasonic servo motors and Schneider Electric cabinet components.
What are the machine dimensions and installed power?
The machine measures 3,944 × 2,890 × 3,887 mm (155.28 × 113.78 × 153.03 in) and has 31 kW total installed power. The installation plan should also allow for service access, extraction, electrical supply, vacuum equipment and safe material handling.
Which part data should be shared for a production evaluation?
Share the part drawing or 3D model, wood species, raw-stock dimensions, finished geometry, faces to be machined, required milling, drilling and shaping operations, expected daily quantity, surface target and preferred workholding method. A physical sample is useful when geometry or wood behaviour needs validation.
