3-axis panel machining

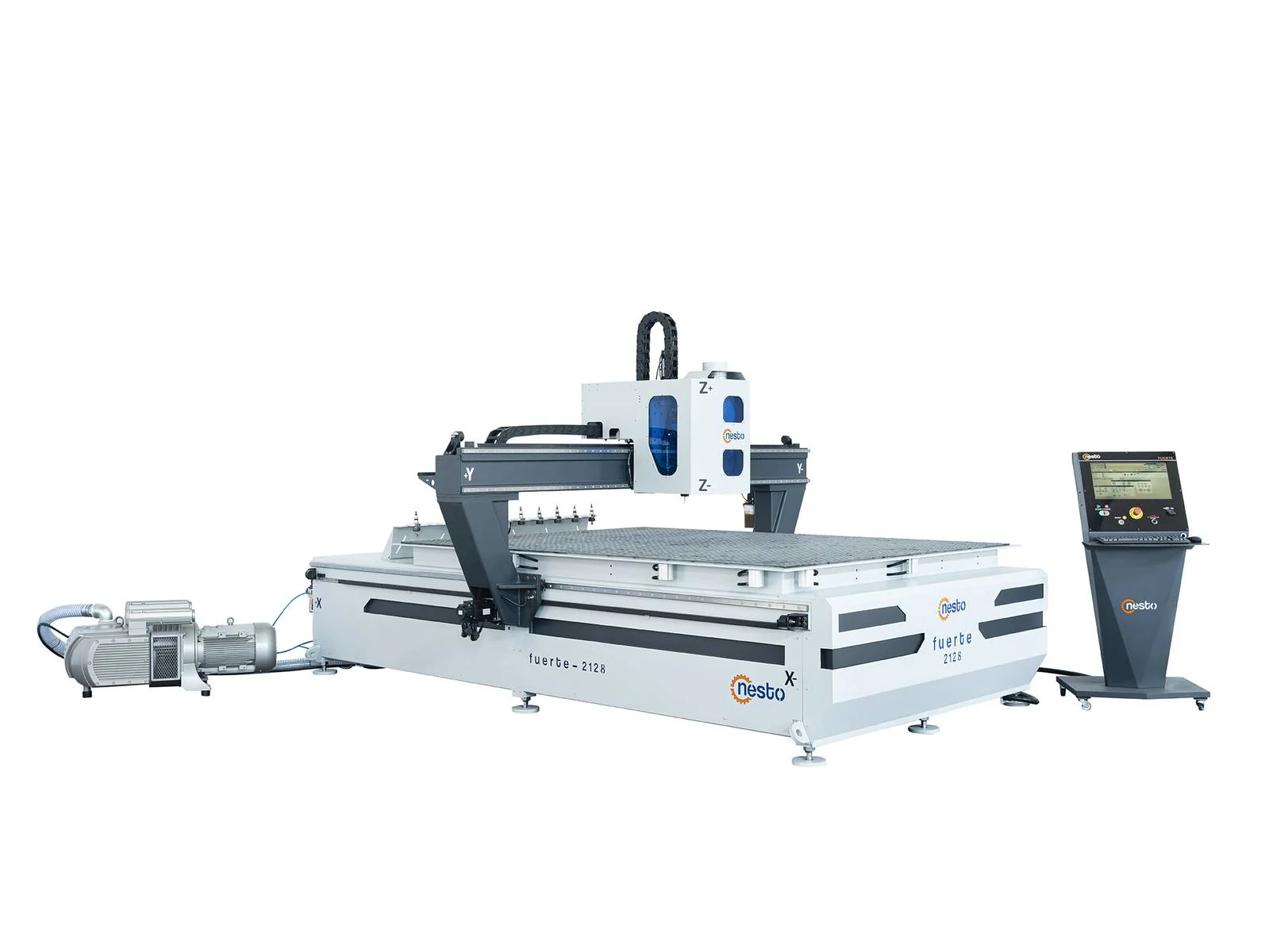

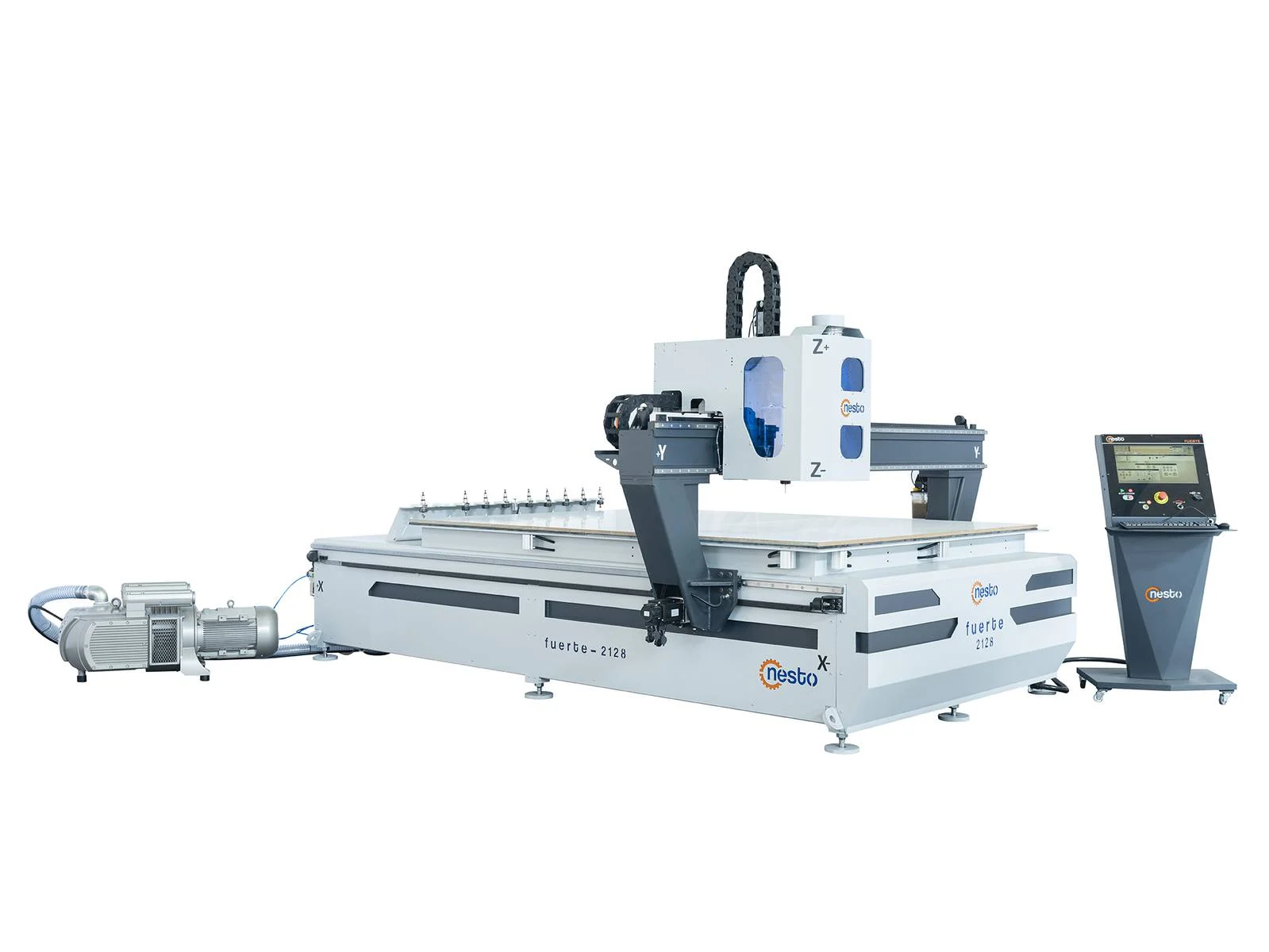

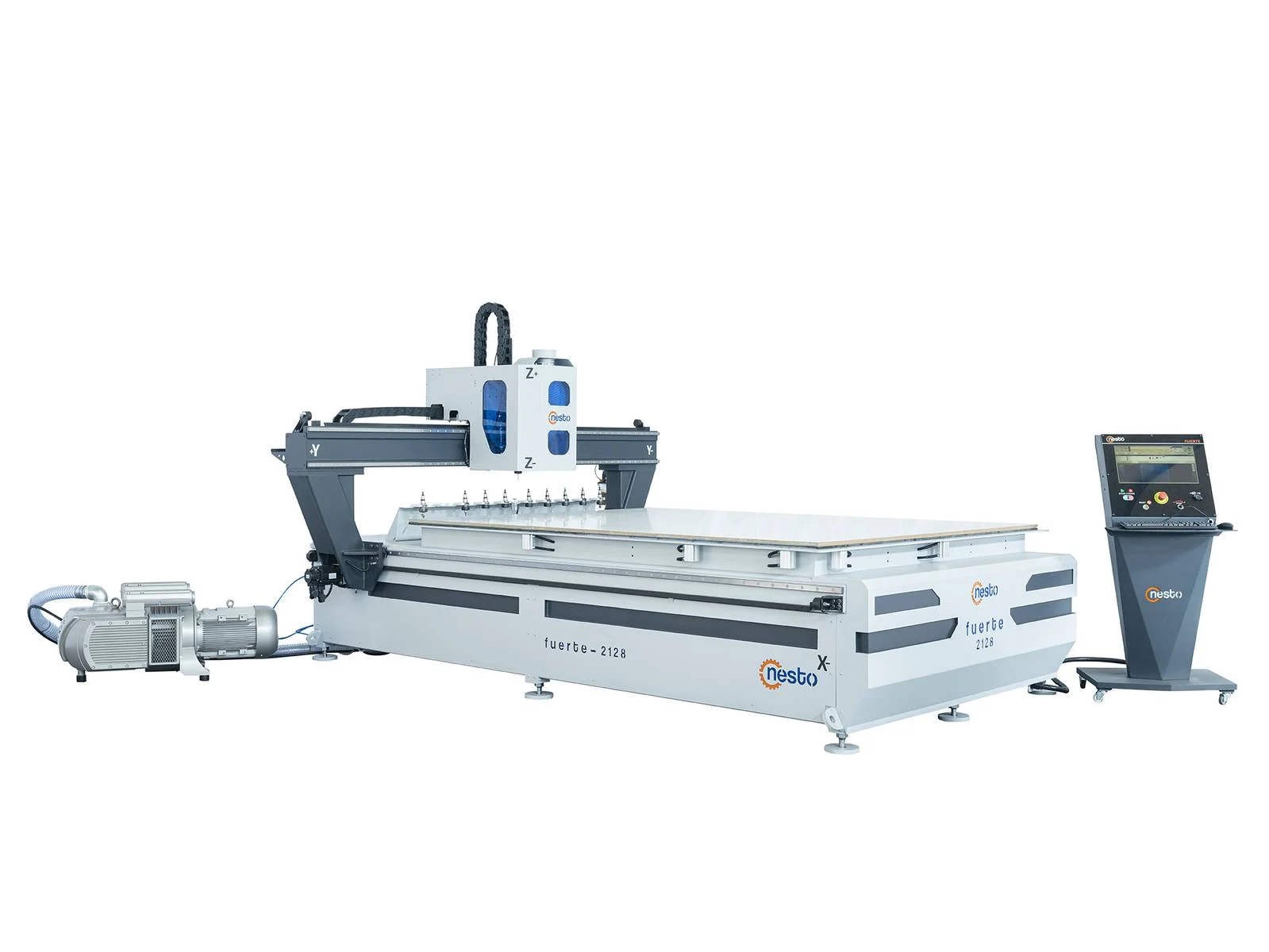

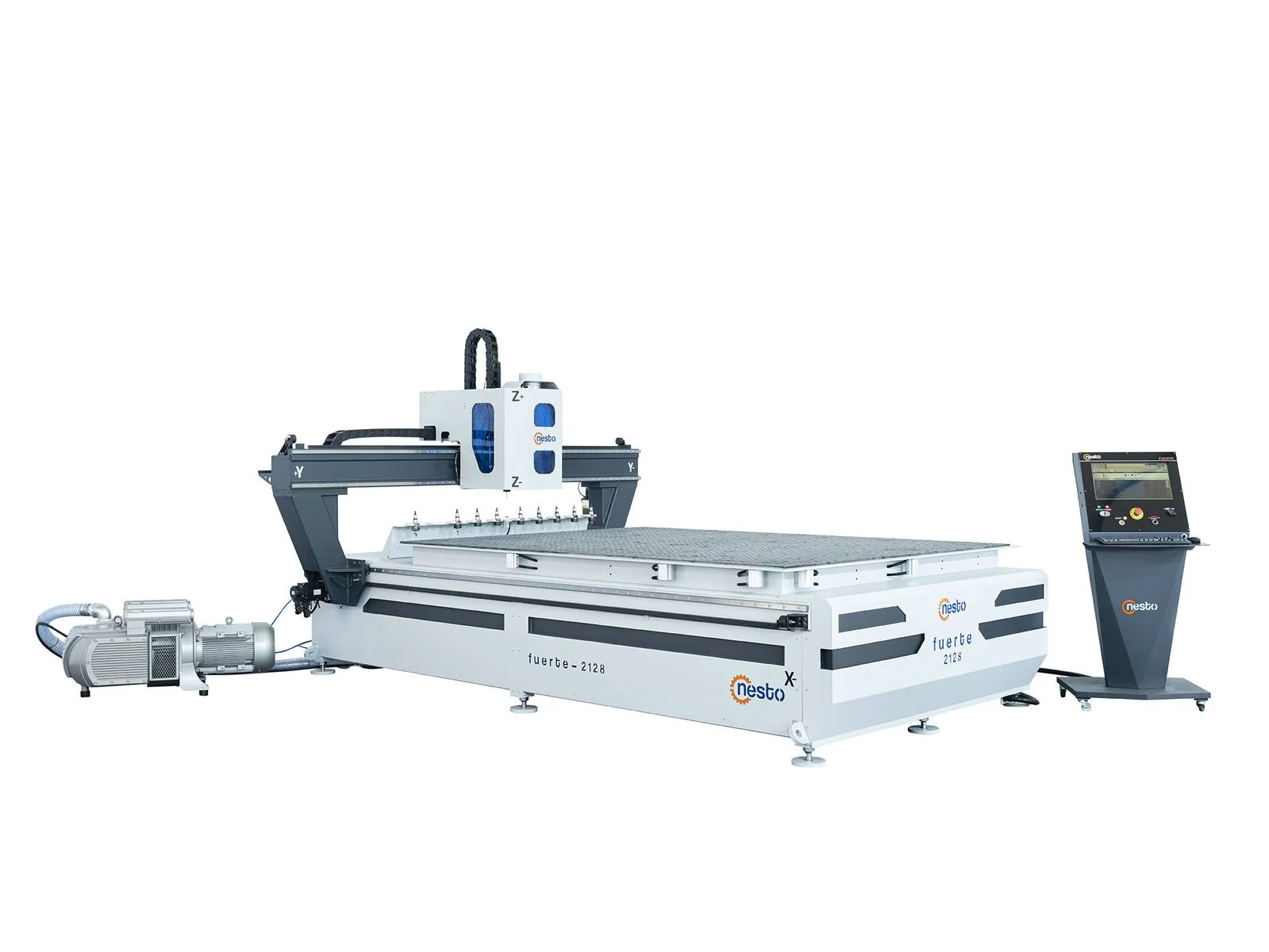

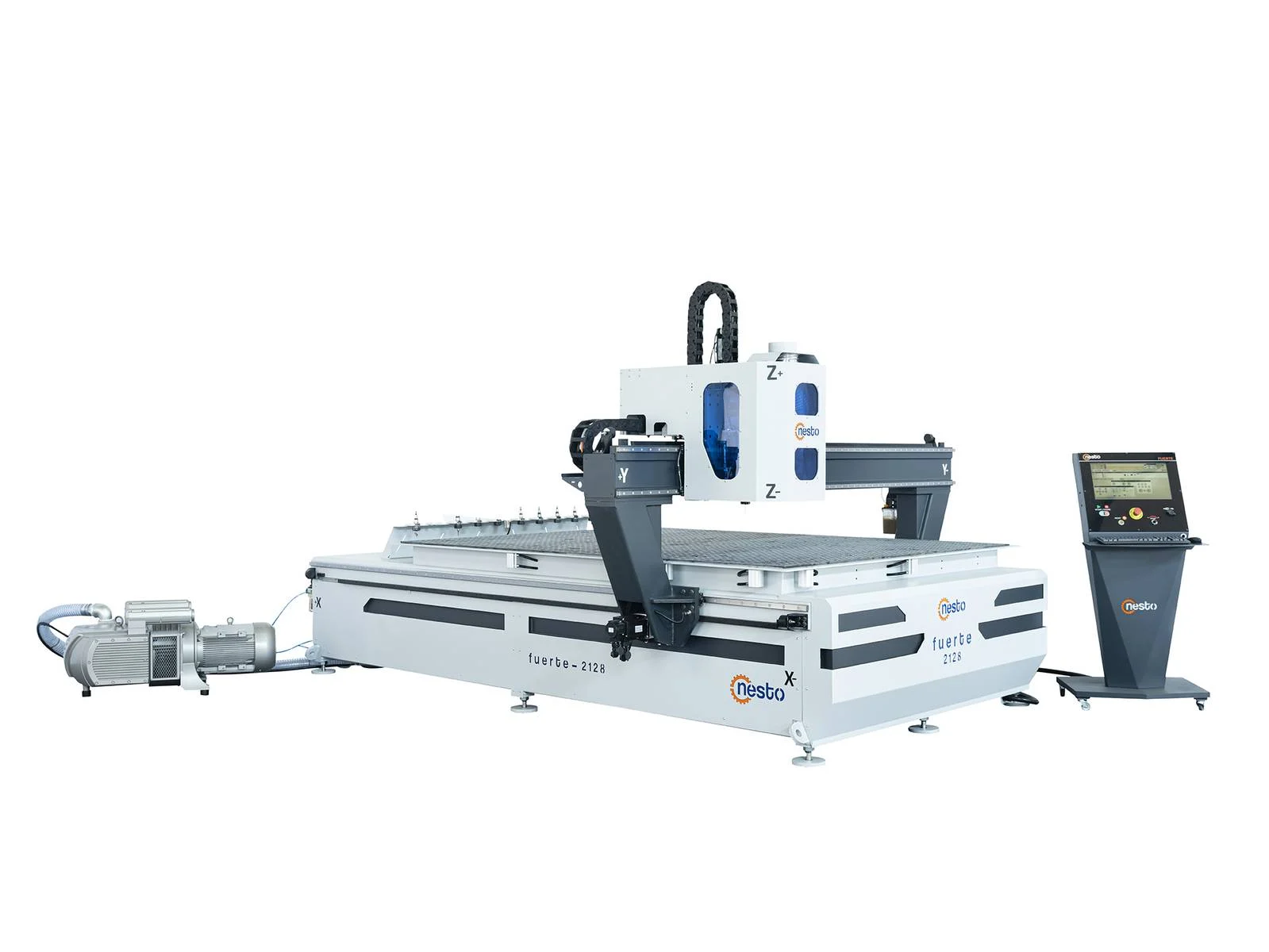

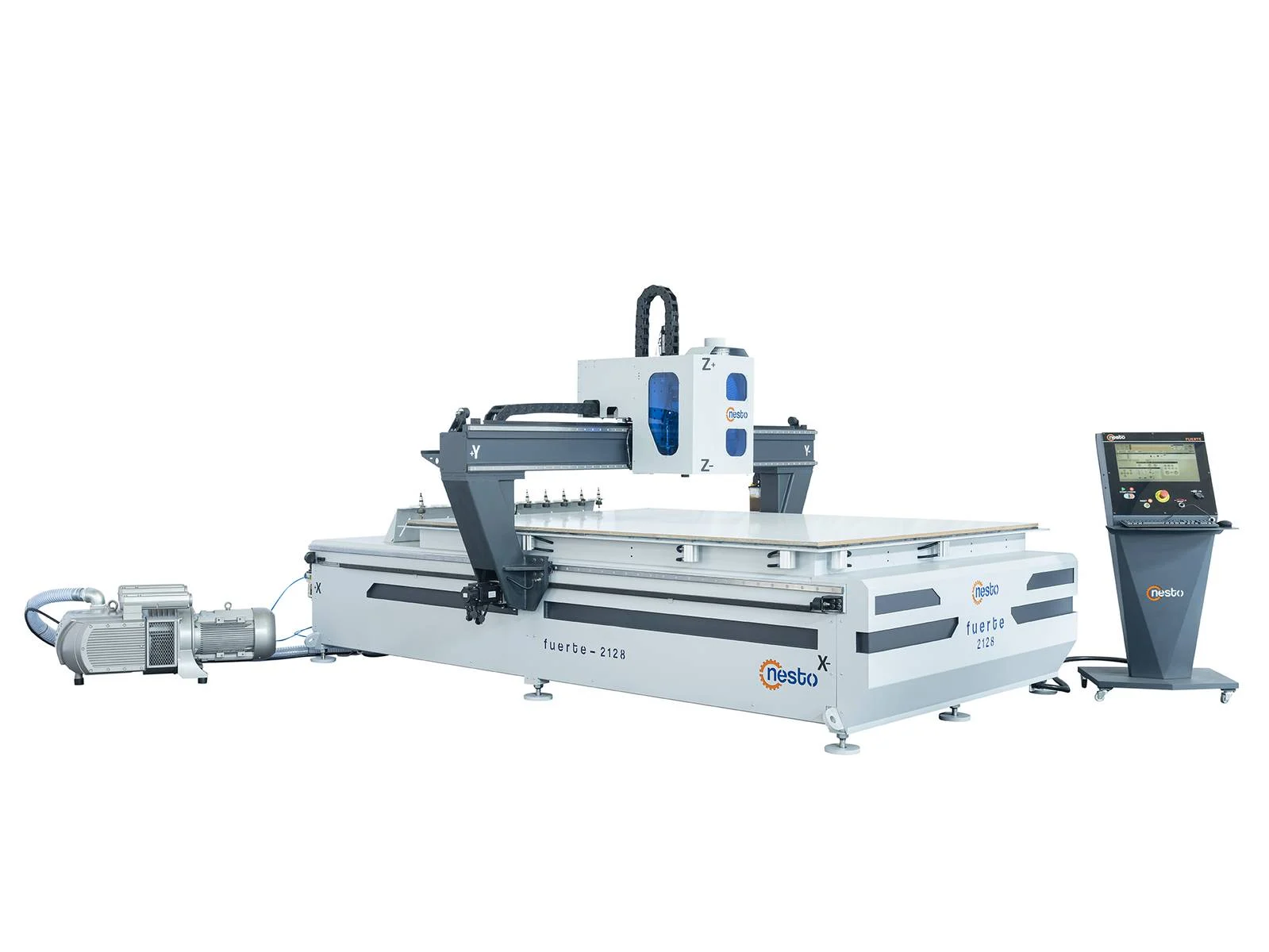

Fuerte CNC Machining Center
Controlled production from panel to finished furniture part
A 2,100 × 2,800 mm work area brings nesting, routing, grooving and 3D surface machining together on one platform.
- 24,000 rpm Hiteco ISO30 spindle
- Automatic 10-position tool changing
- Six-zone vacuum table with 250 m³/h VPS pump
Add panel dimensions, material type, target capacity and part drawings to the quote form.
Reinforced, vibration-free, rigid chassis, a 12mm compact table is applied in addition to the 10mm sheet metal plate on the chassis formed from the profile. This process provides long-term use. Thanks to the high quality spindle motor, you can get the best results quickly and precisely. All axes are driven by servo motors. Sensitive acceleration is provided with high speed. High quality and high precision rails, trolleys and racks are used so that the axis movements are affected by the least vibration. The tool changing magazine with 10 on the chassis allows you to do your operations faster.
General Features and Production Capabilities

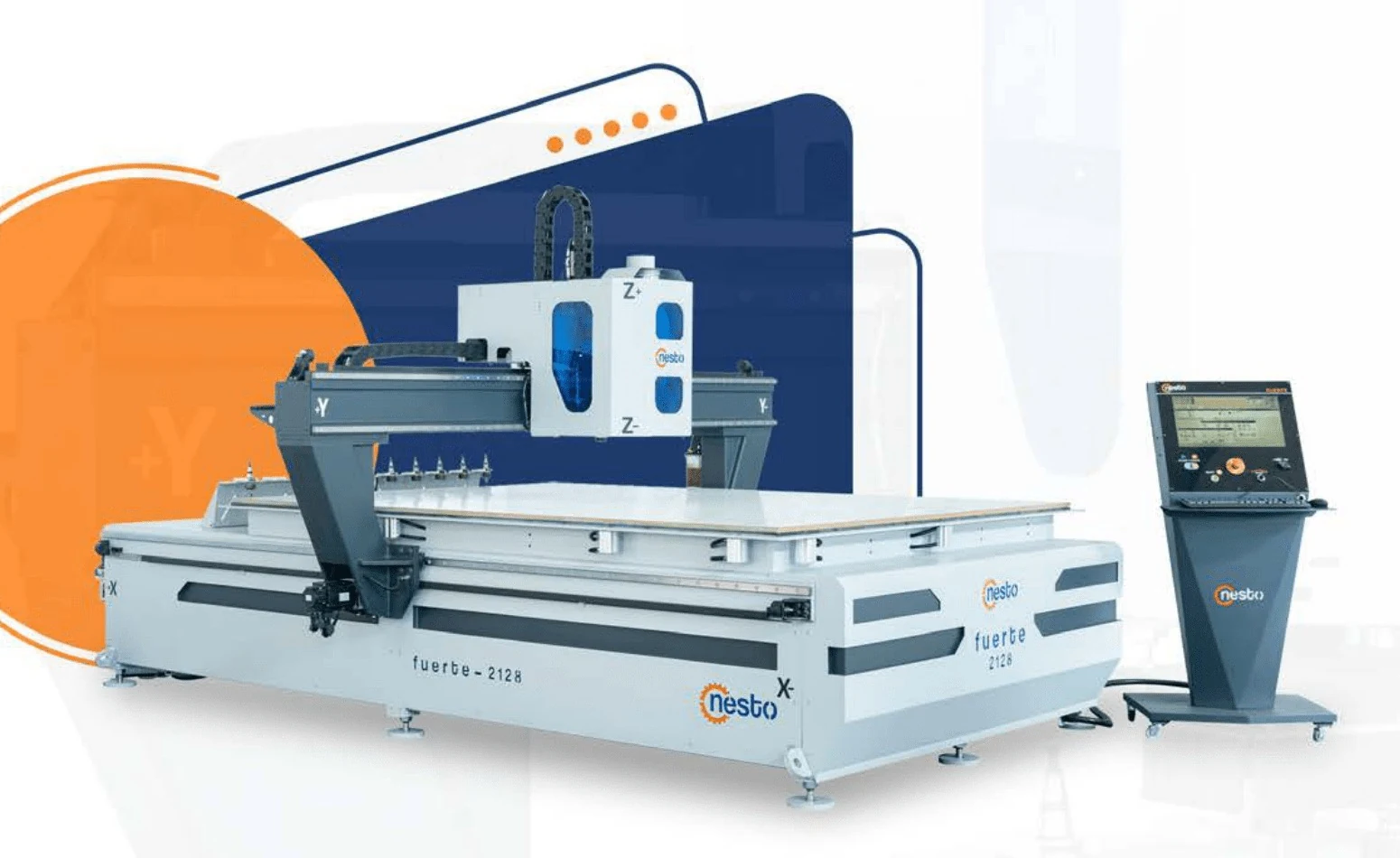

Versatile three-axis panel processing
Fuerte brings routing, sizing, drilling, grooving and three-dimensional surface machining together on one CNC machining center. The controlled workflow is designed for repeatable furniture-part production from digital model to finished panel.
Furniture production applications
The working range supports furniture, tables, chairs, accessories, sofa frames, kitchen furniture and similar wood-based components that require precise panel machining.
- Furniture and kitchen units
- Tables and chairs
- Sofa frames and accessories

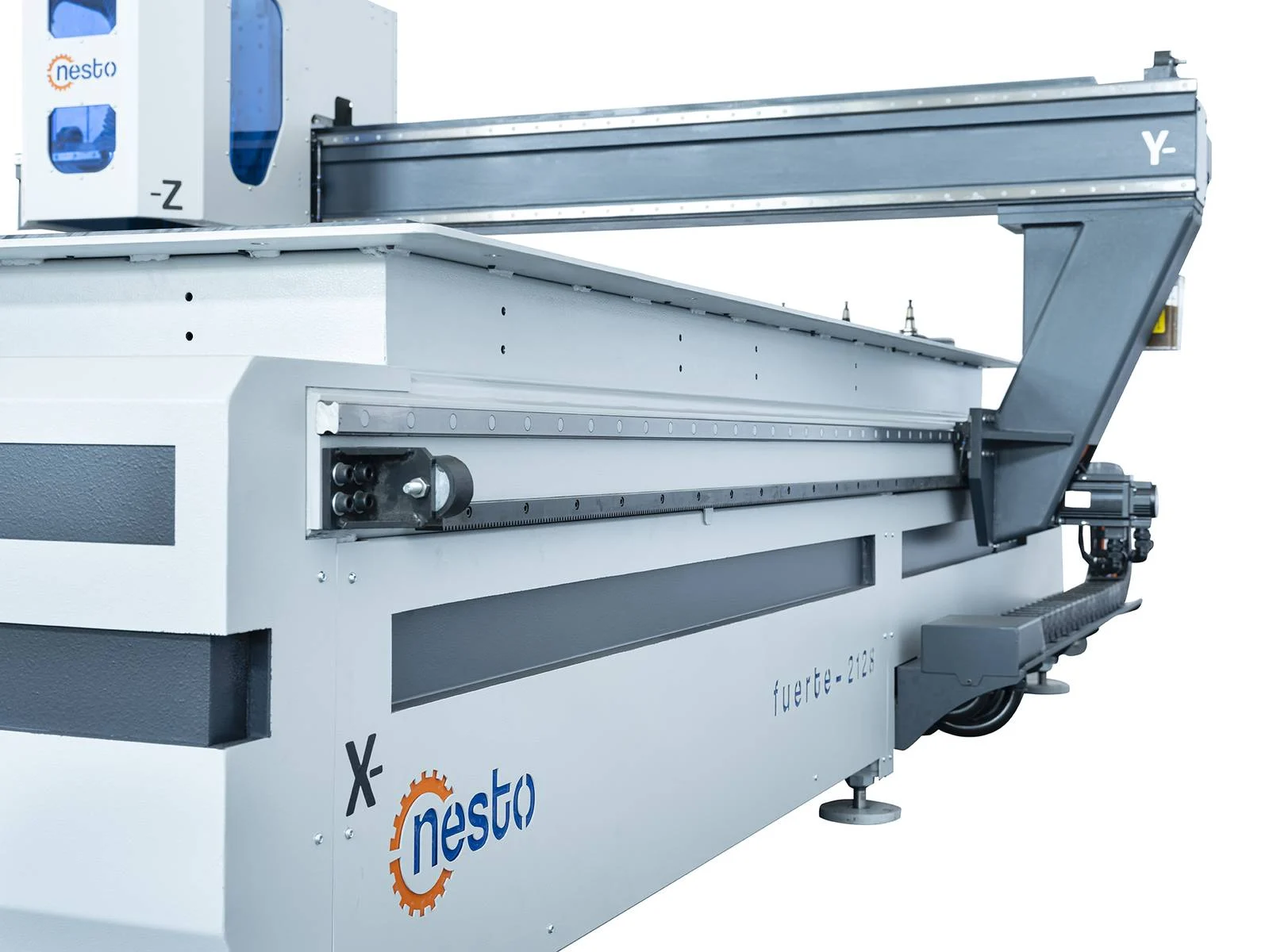

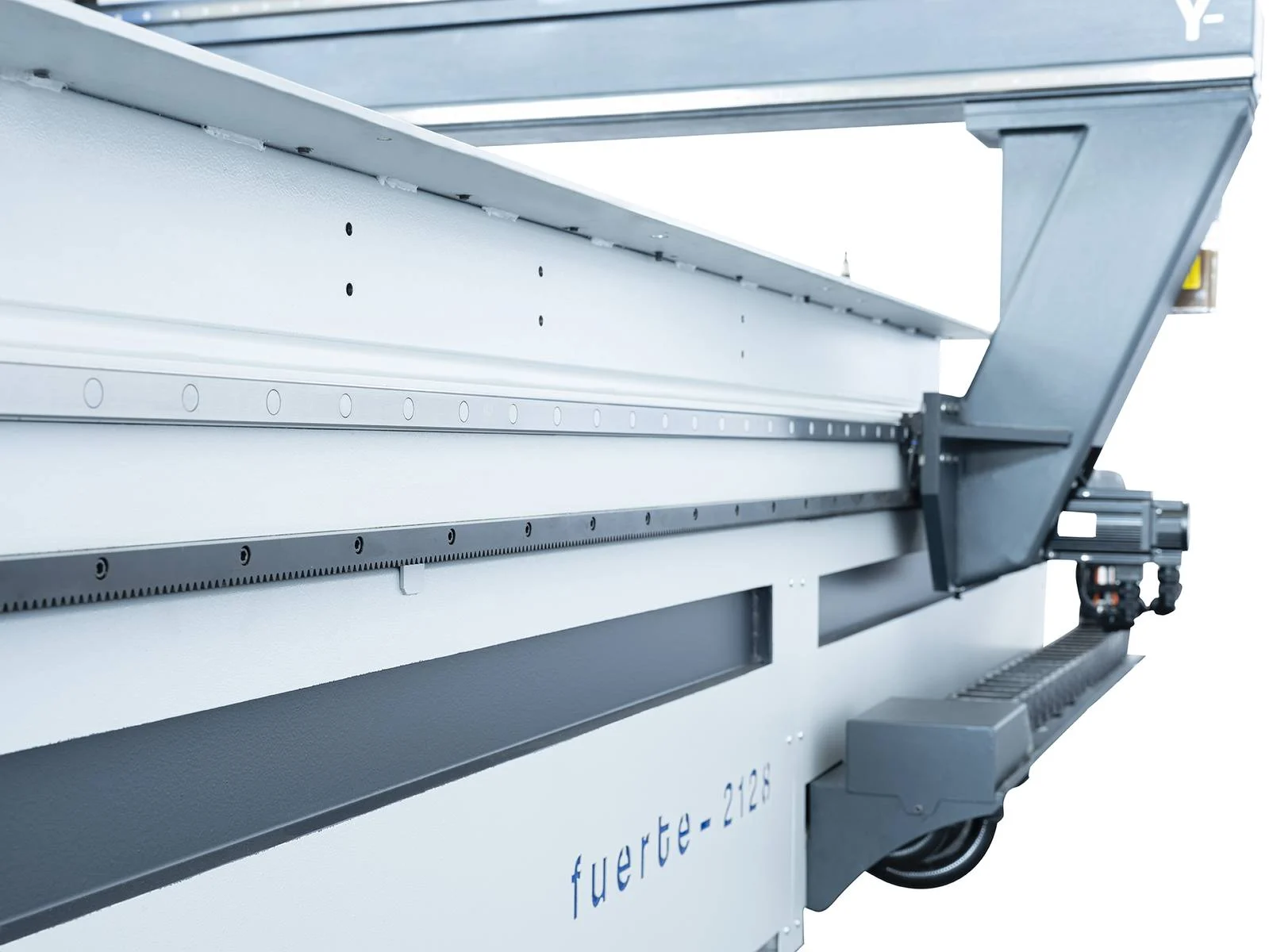

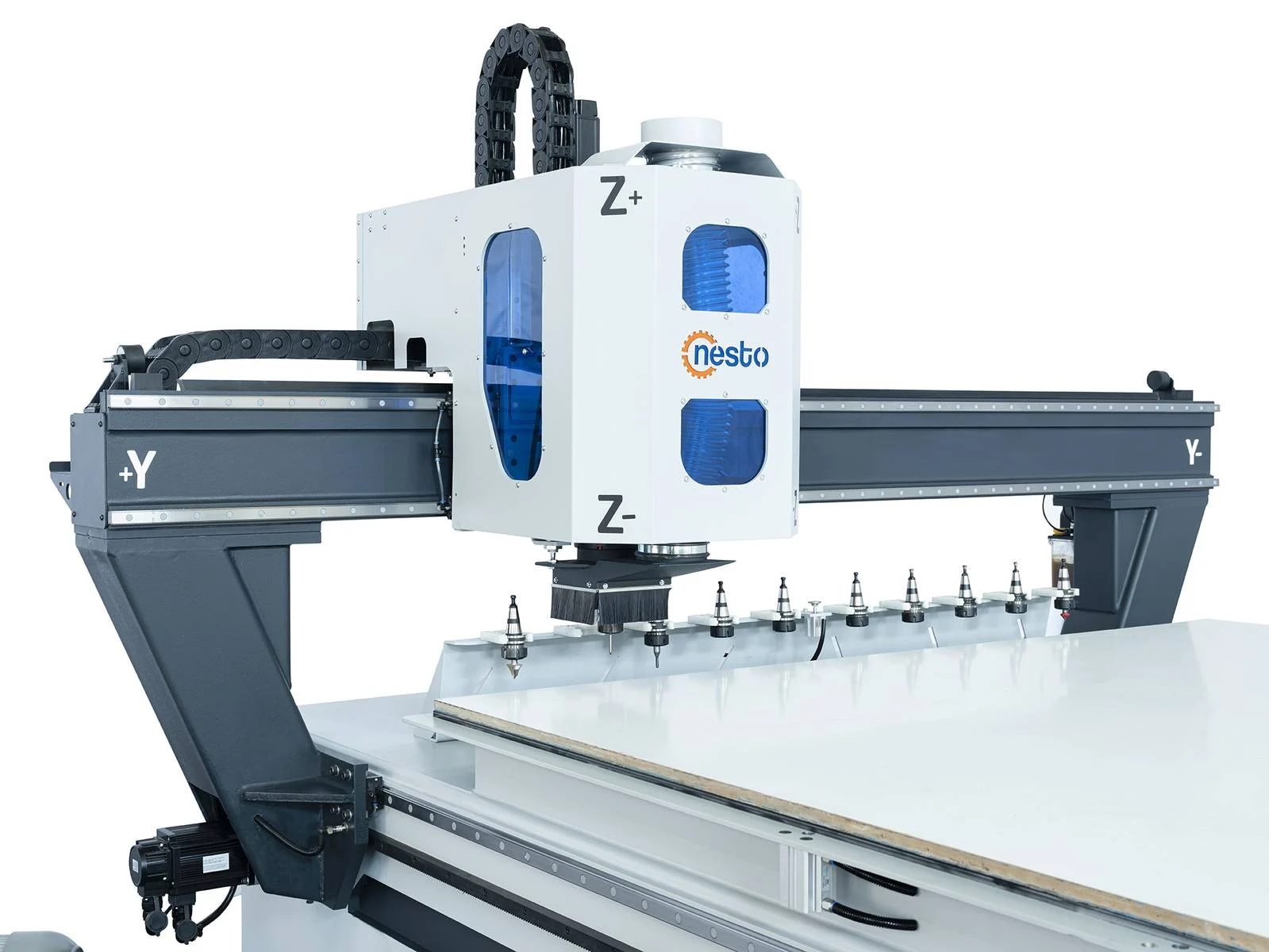

Servo-controlled axis movement
All axes use servo drives for fast, controlled acceleration. Precision rails, carriages and rack-and-pinion transmission help reduce vibration during demanding routing cycles.
Reinforced chassis and compact table
The rigid body combines 10 mm steel plate construction with a 12 mm compact worktable to support stable, repeatable panel processing over long production runs.

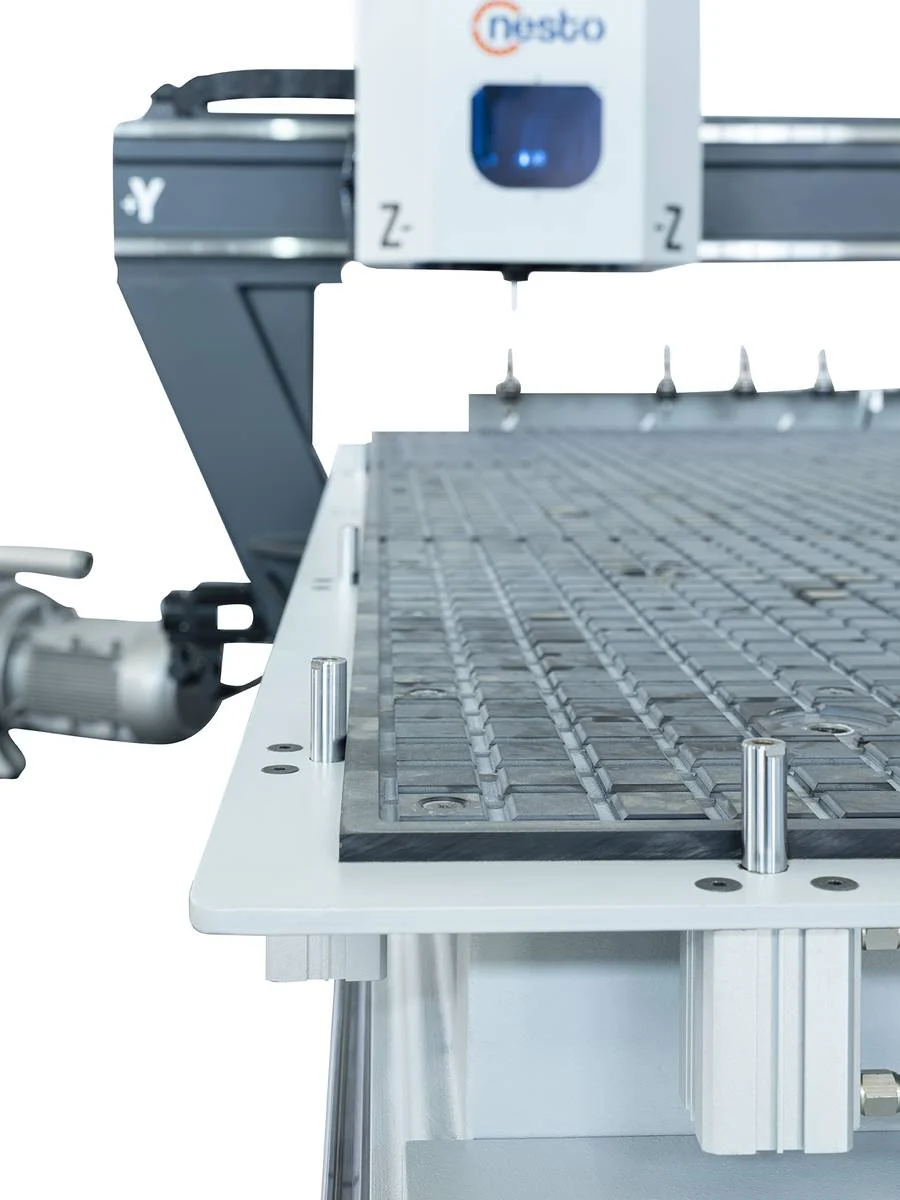

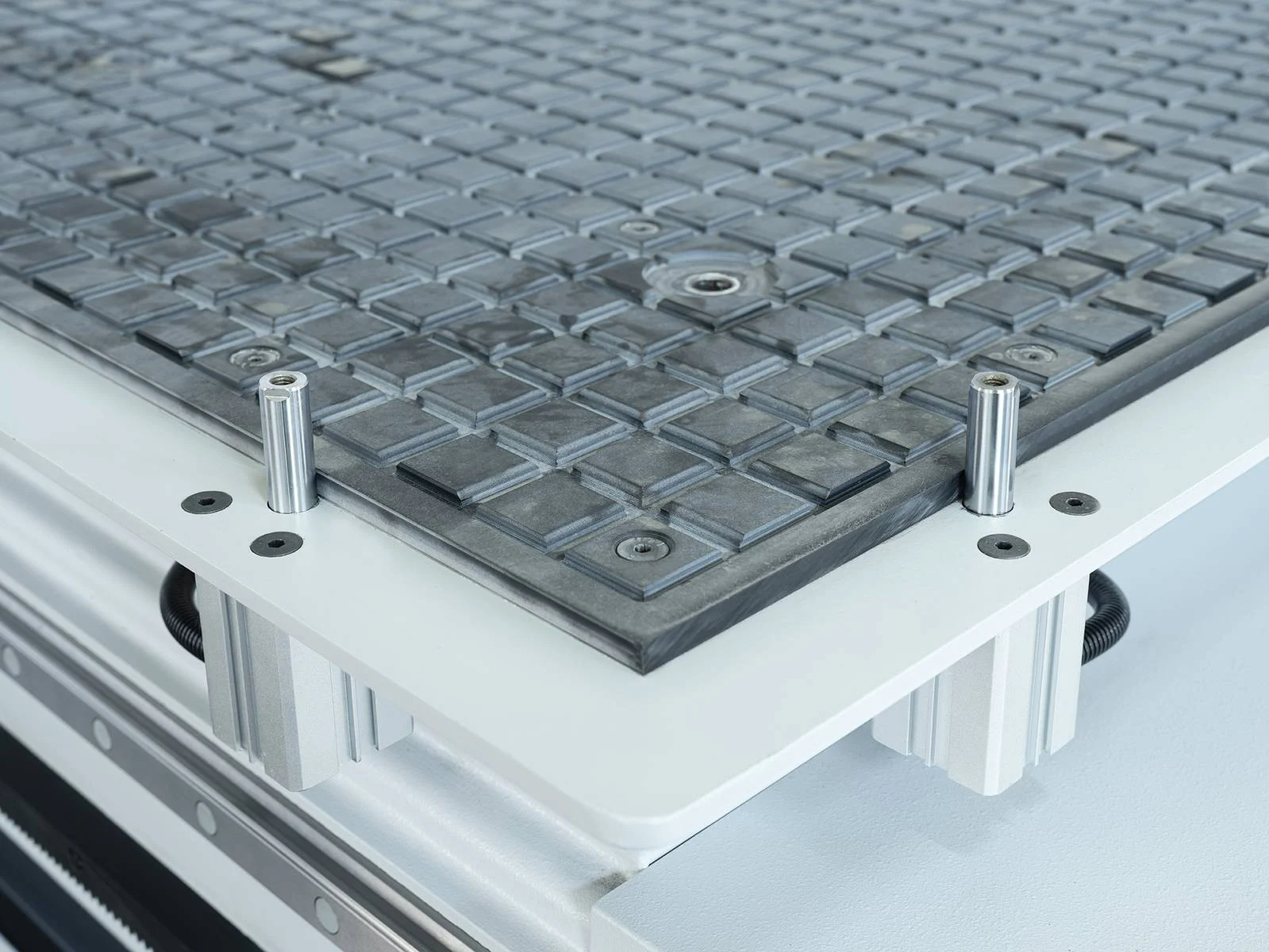

Six-zone vacuum worktable
Air channels distribute vacuum across the compact table. Six independently selectable zones let the operator match the holding area to the workpiece.

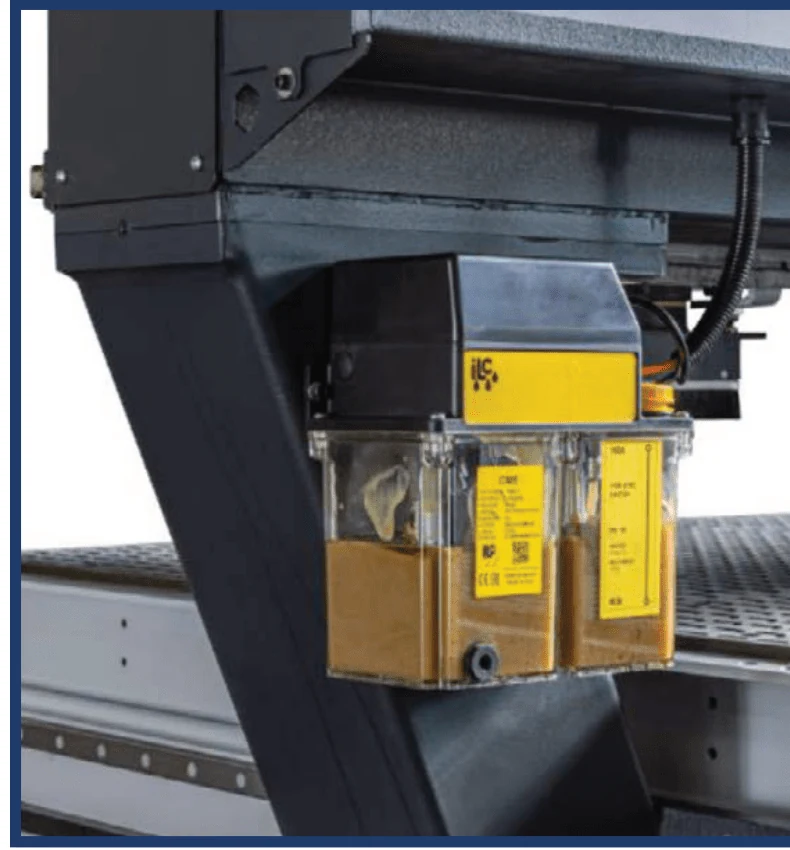

Central automatic lubrication
The ILC unit automatically lubricates moving components. Service intervals can be adjusted from the control screen to support lower wear and planned maintenance.

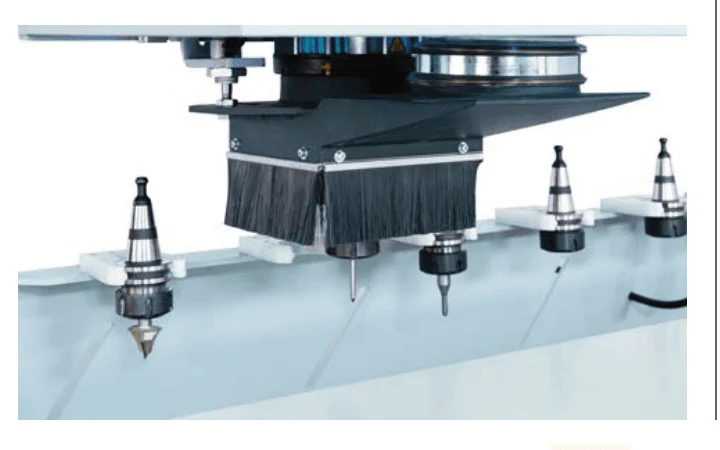

Automatic tool measurement
Tool length is measured and stored in the control system, helping maintain the correct Z reference after a tool change without repeated manual entry.
Technical Specifications
| Specification | Standard model |
|---|---|
| Working area | 2,100 × 2,800 mm82.68 × 110.24 in |
| Control unit | PC-based · remote connection · user-friendly interface |
| X-axis motor | 1.5 kW Panasonic |
| Y1 / Y2-axis motors | 1.5 kW Panasonic |
| Z-axis motor | 0.75 kW Panasonic |
| Tool changer | 10-position fixed magazine |
| Gearbox | Liming FE Series |
| Pinion | 24 × 22 · M2 · Z30 |
| Linear motion group | Staf |
| Spindle motor | Hiteco 9.5–11 kW · 24,000 rpm · ISO30 (Italy) |
| Vacuum system | VPS 250 m³/h dry type · 6 zones |
| Servo motors and drives | Panasonic |
| Rapid feed speed | 85 m/min |
| Lubrication system | ILC automatic lubrication unit (Italy) |
| Machine dimensions (L × W × H) | 3,820 × 3,000 × 1,995 mm150.39 × 118.11 × 78.54 in |
| Total weight | 3,500 kg |
Standard Main Equipment

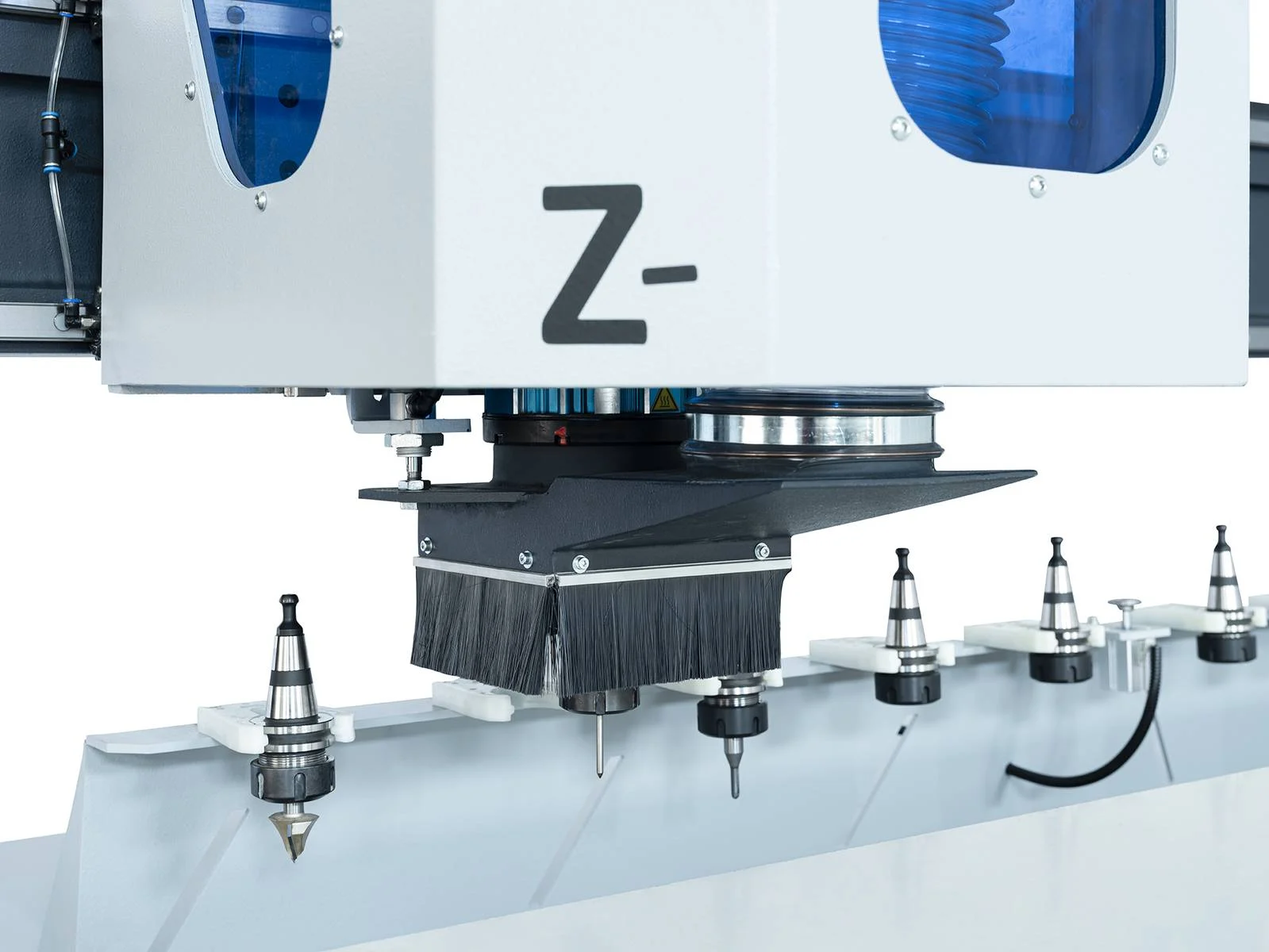

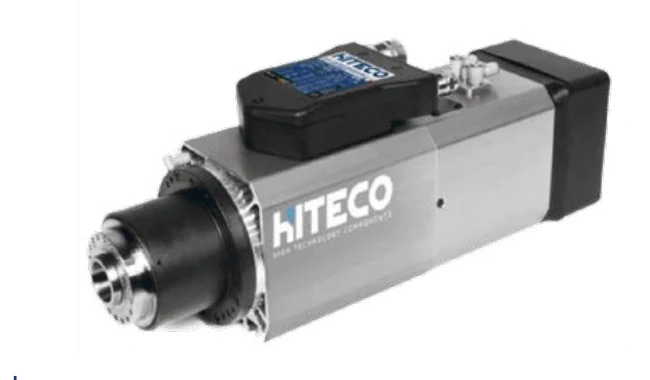

Hiteco ISO30 spindle
The Italian spindle supports automatic tool change and high-speed routing with ceramic bearings, electrofan cooling, compressed-air cooling and a double-acting pneumatic cylinder.
- 9.5–11 kW
- 24,000 rpm
- ISO30
- 220–380 V

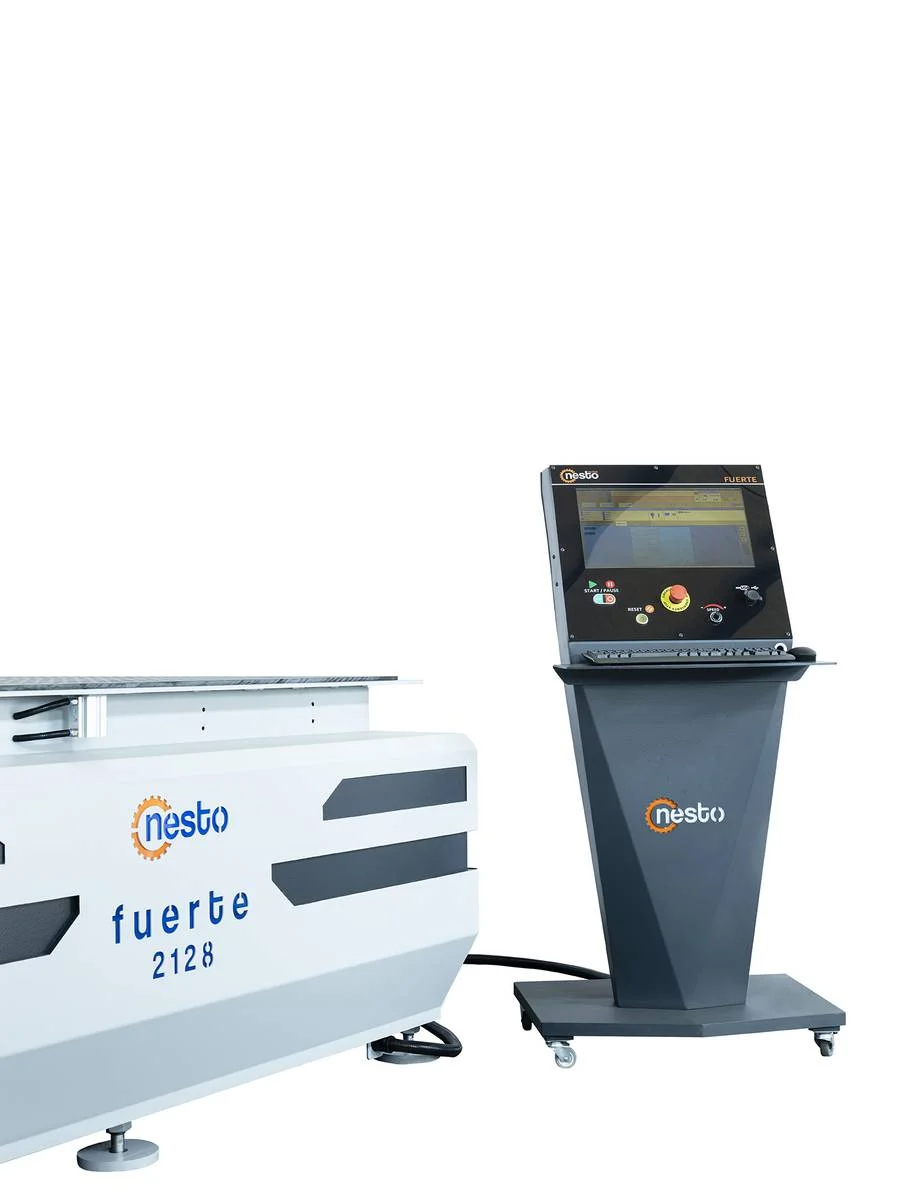

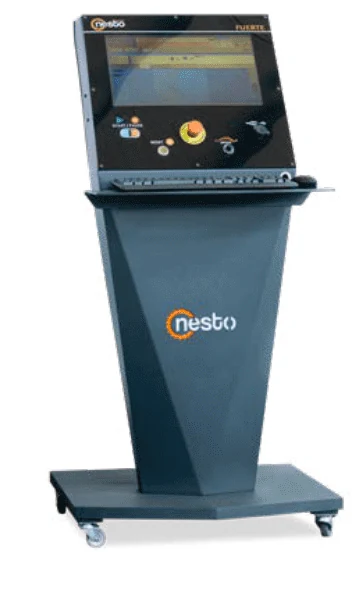

PC-based CNC control
The operator interface brings axis management, 3D part preview, production reports and secure remote service access together on one industrial control station.

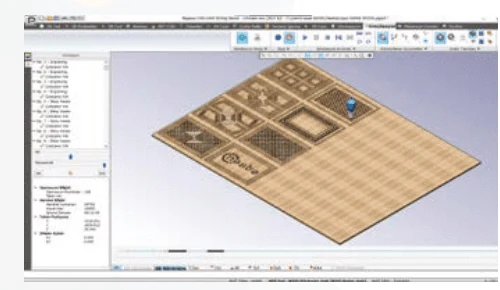

Pegasus CAD/CAM workflow
Parts can be designed, reviewed and simulated in 3D before generating the machining code, helping the operator move from model preparation to production in one workflow.

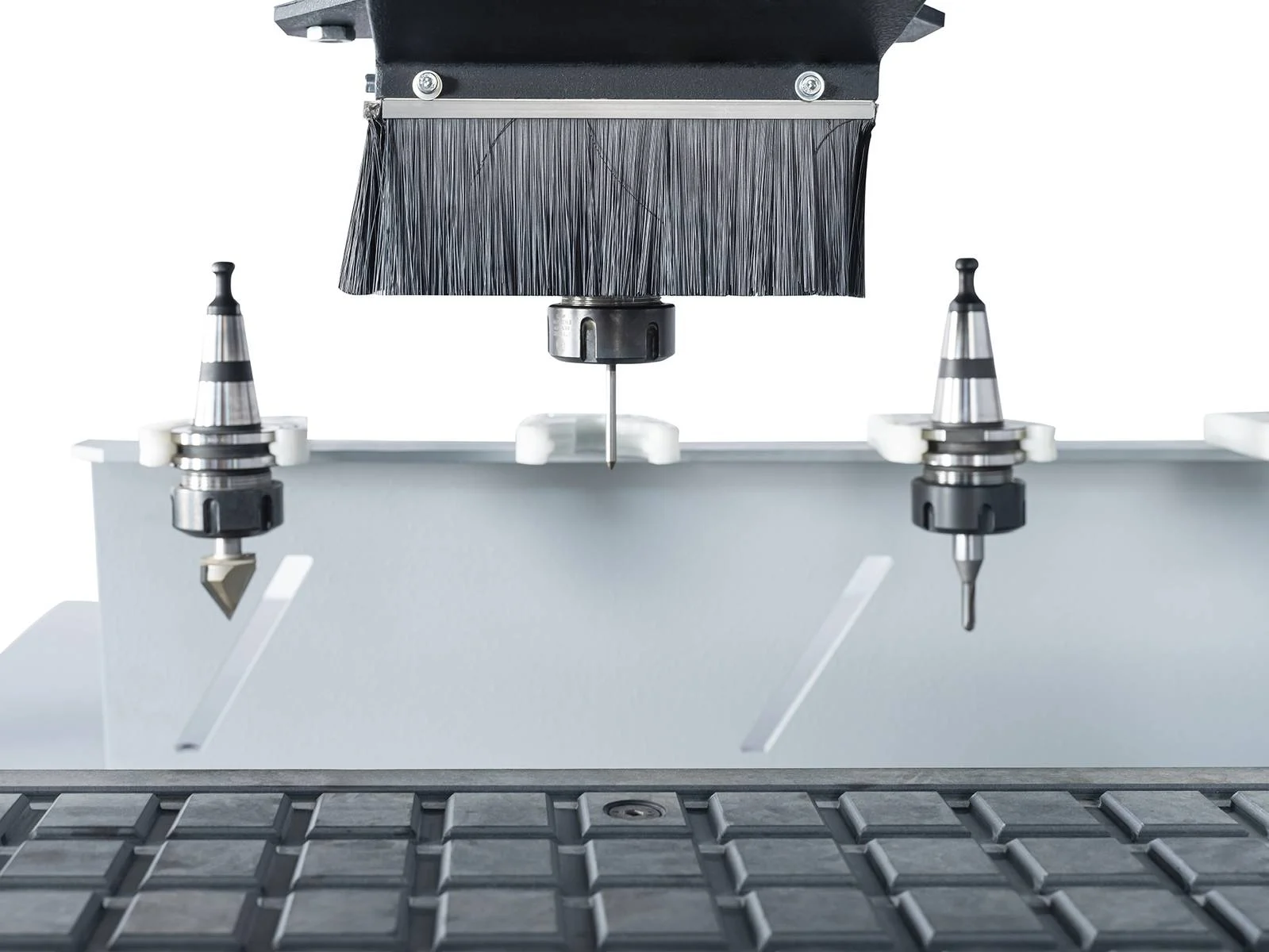

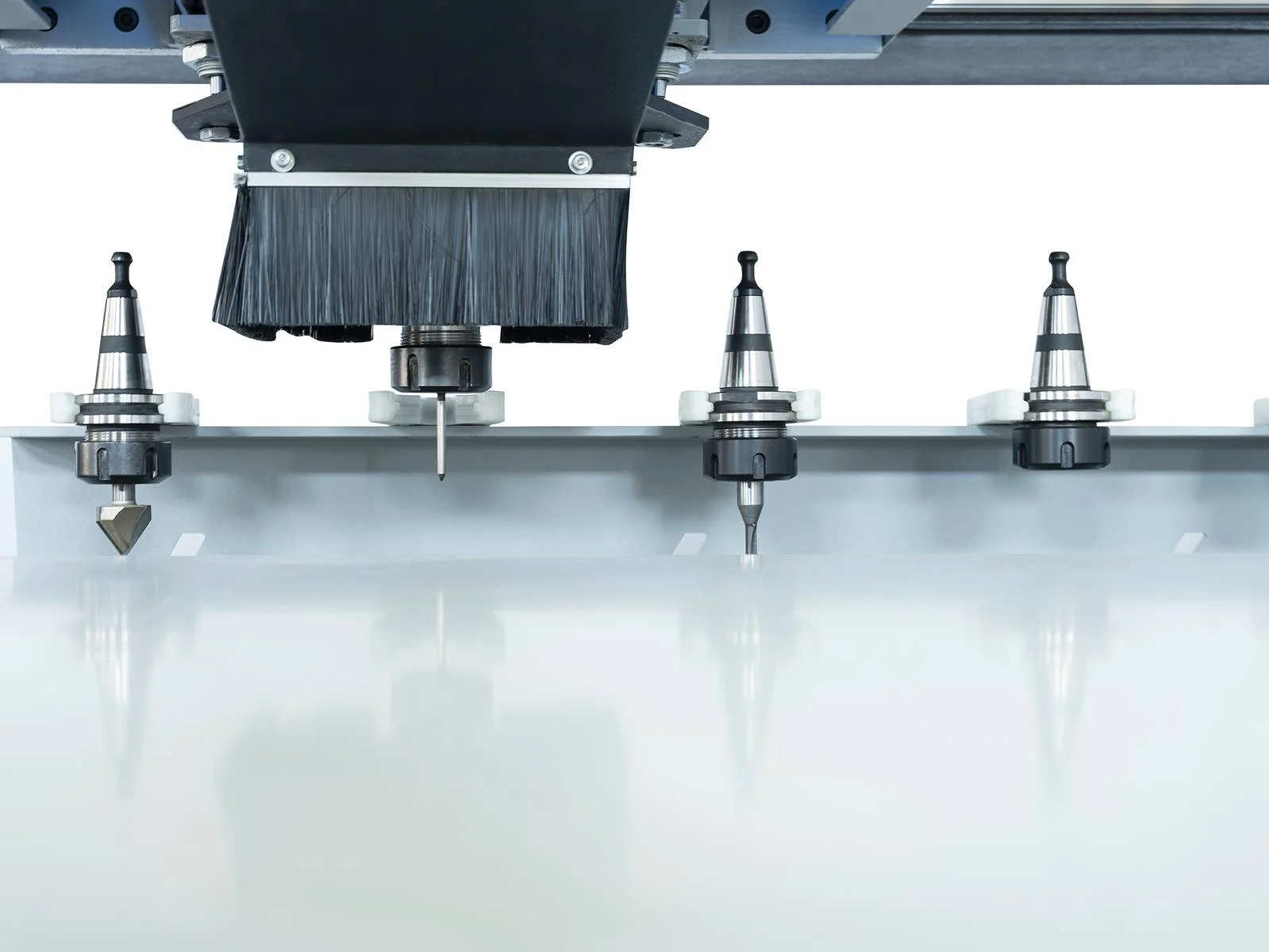

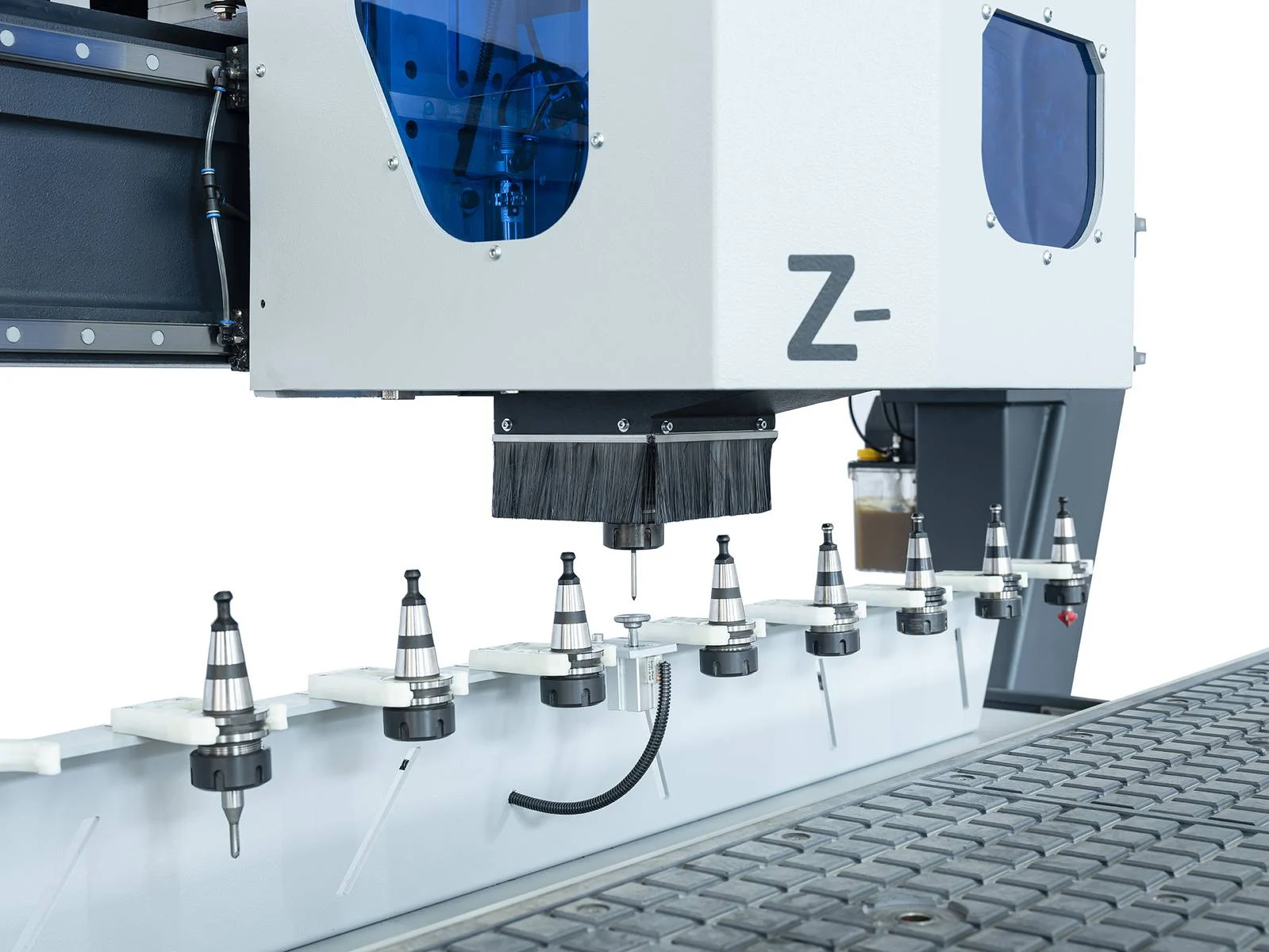

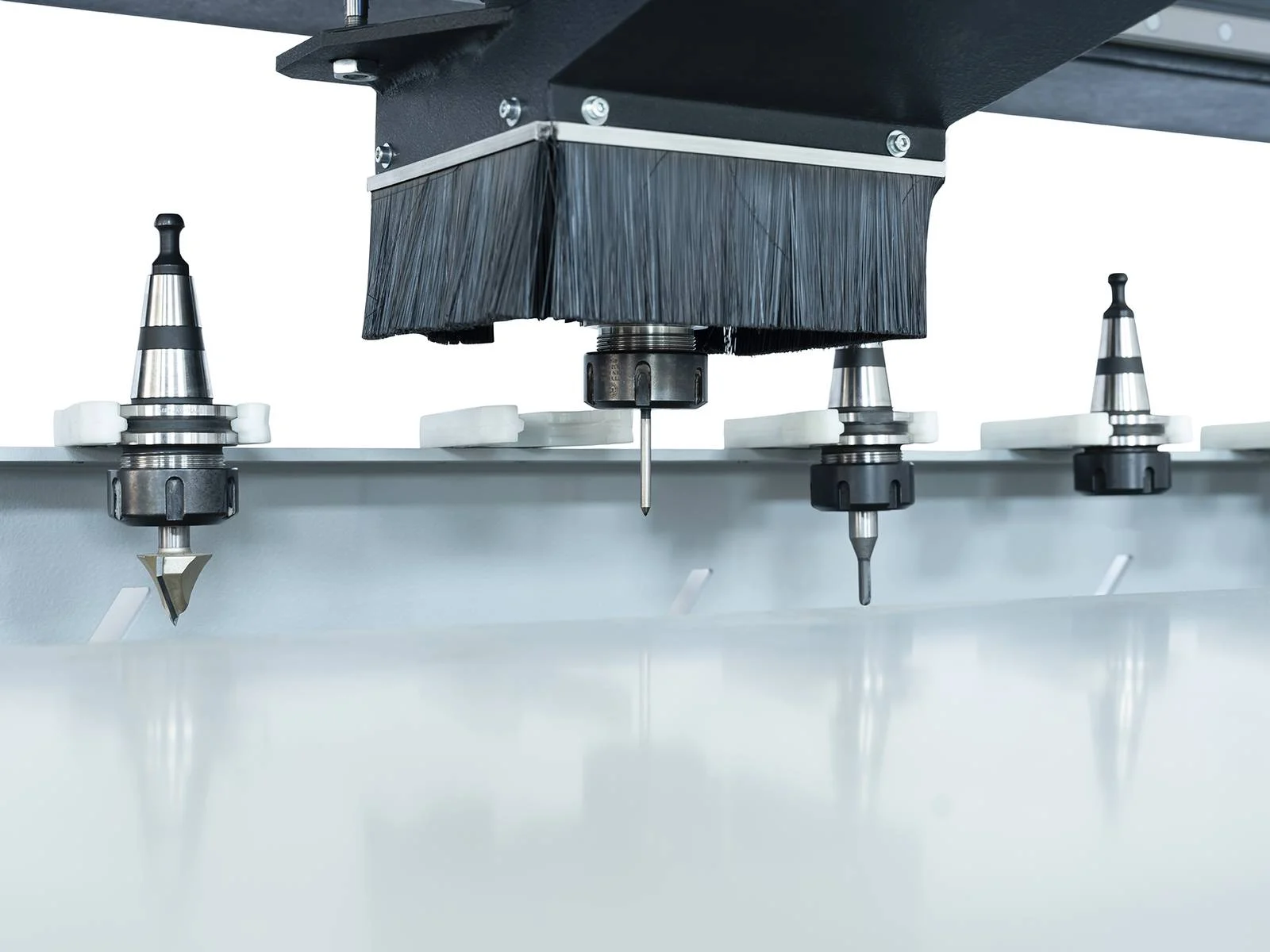

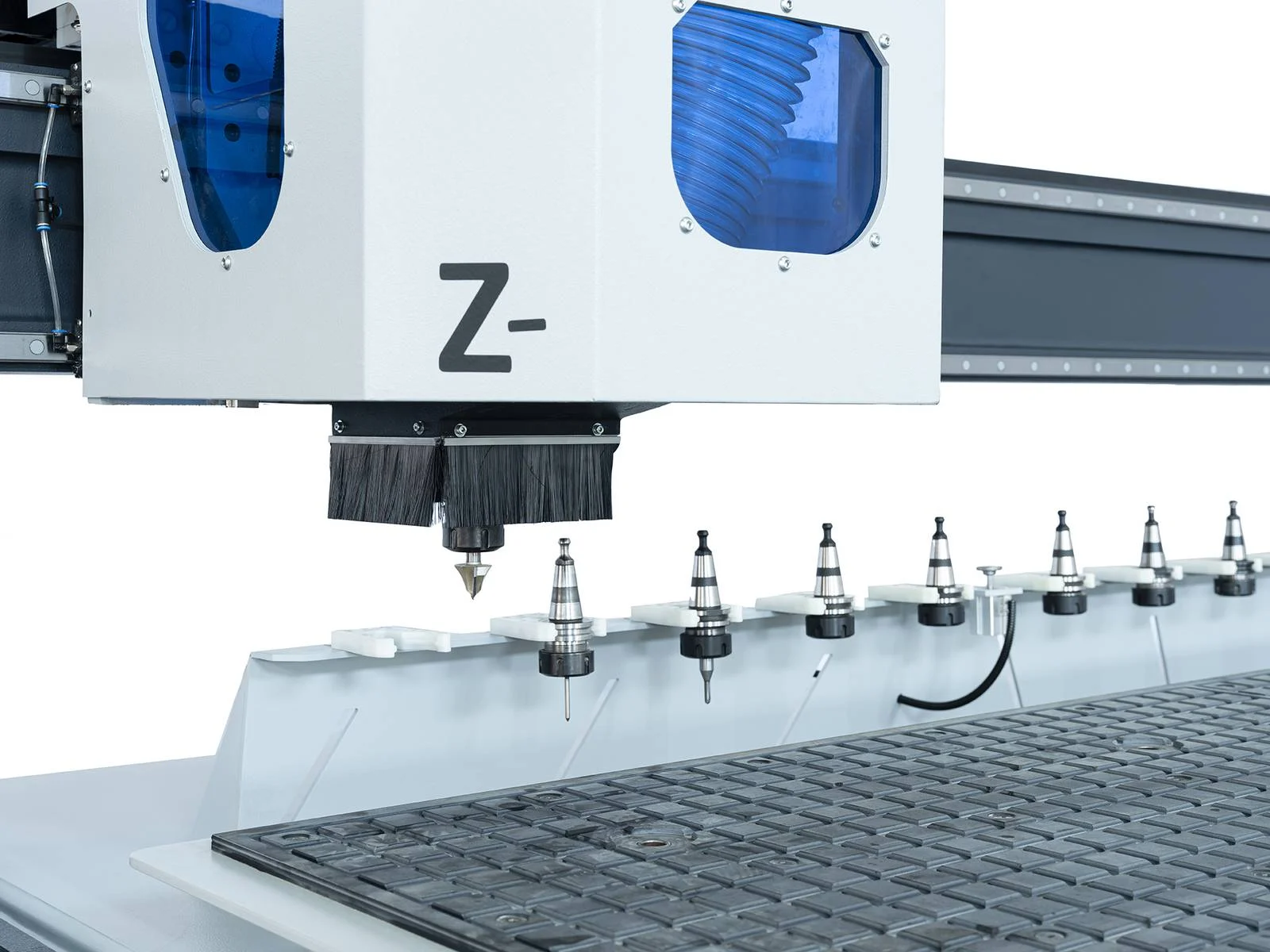

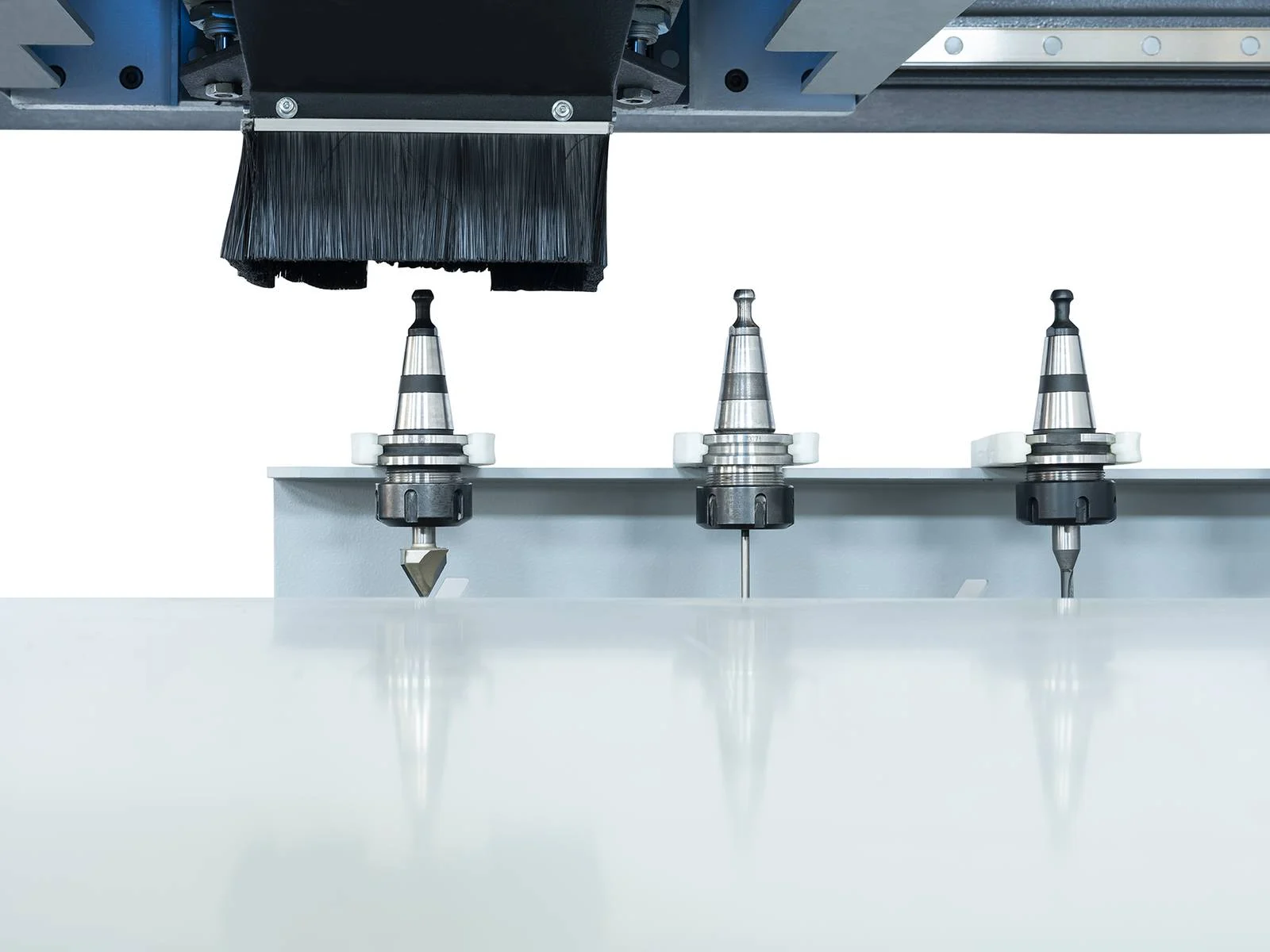

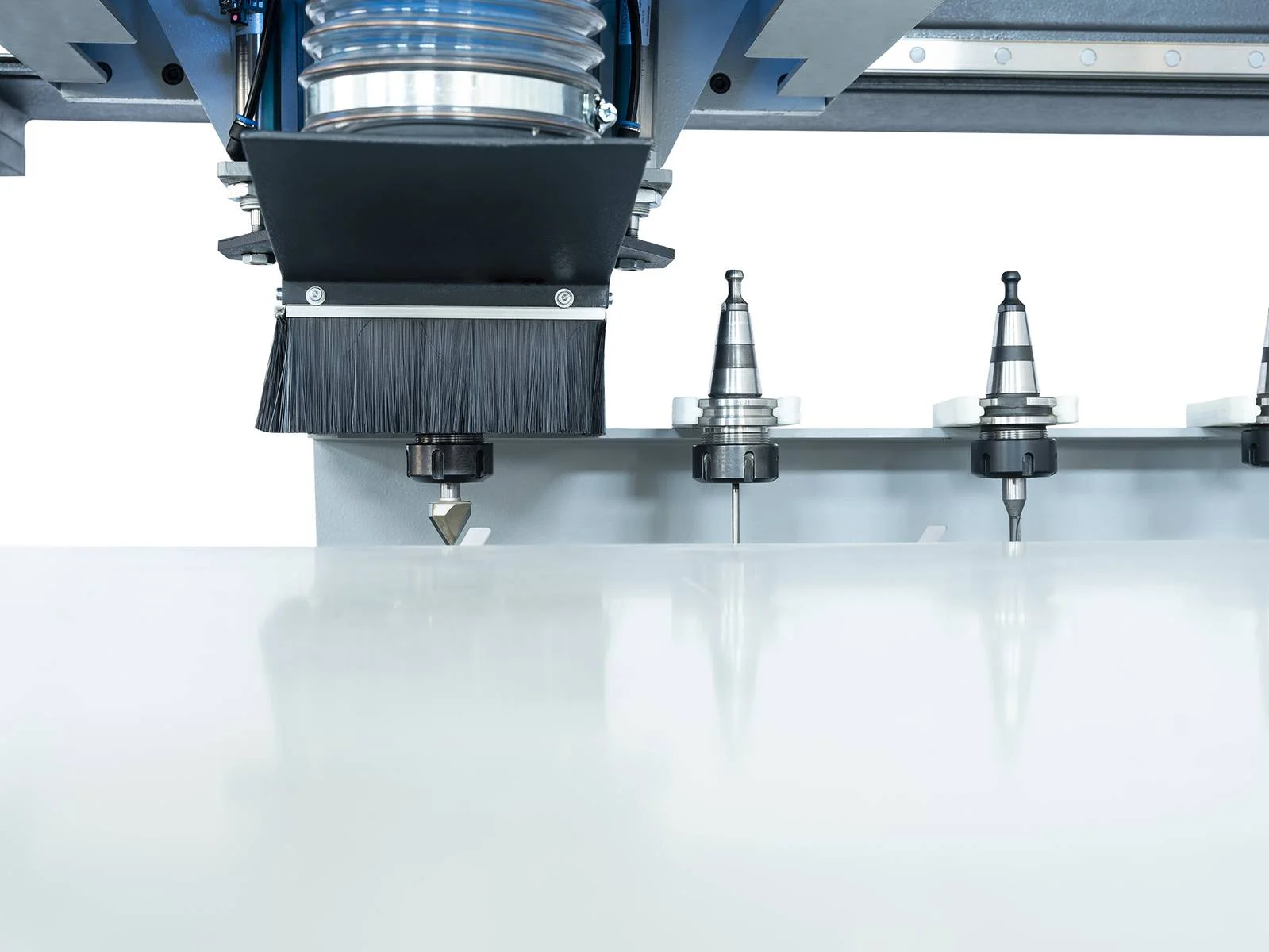

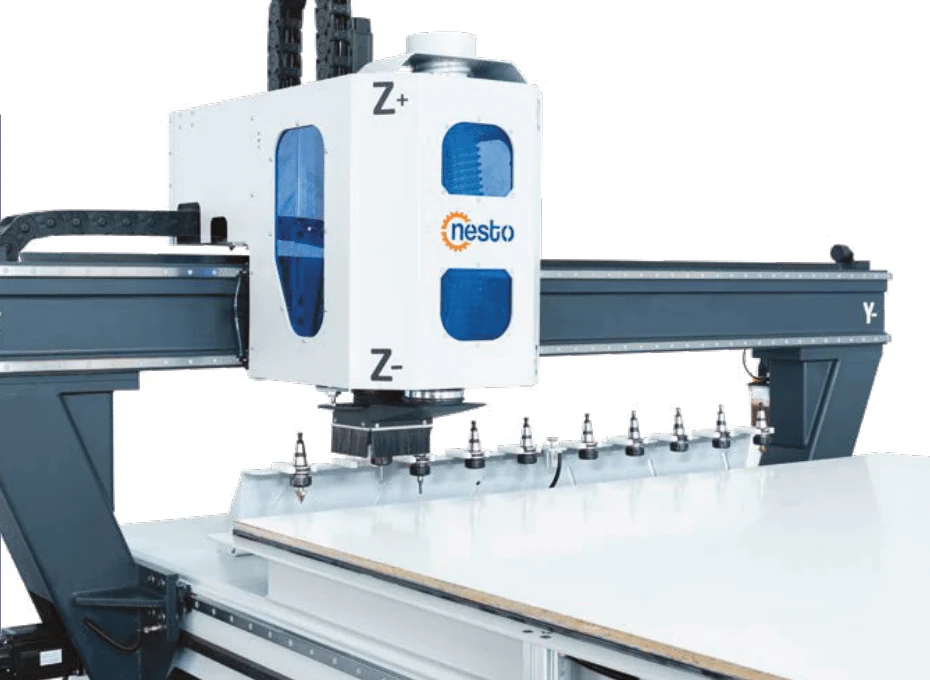

10-position fixed tool magazine
Ten holders installed on the chassis provide automatic tool changes and allow different routing operations to be prepared within the same program.

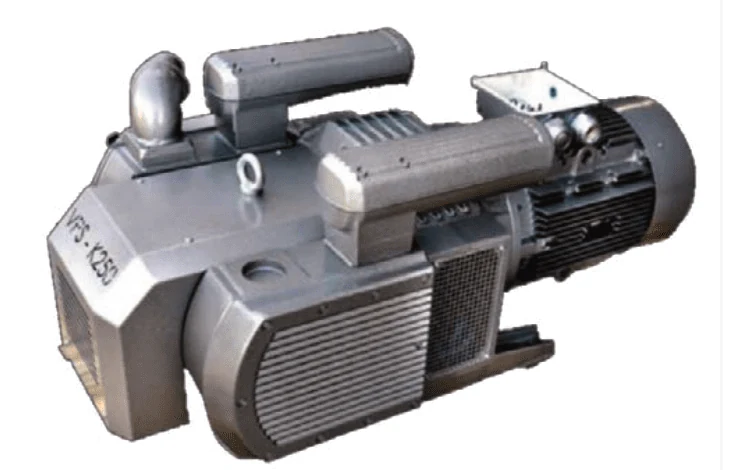

VPS dry vacuum pump
The standard pump supplies the six-zone table for dry workholding and is selected for continuous panel processing.
- 250 m³/h
- 200 mbar
- 7.5 kW
- 1,000 rpm
- 77–79 dB
Options for Production Requirements
Extended 2100 × 3660 mm working area
An extended table option for manufacturers processing longer sheet formats.
- 2100 × 3660 mm
- 82.68 × 144.09 in
Compact 1300 × 2500 mm working area
A compact table configuration for standard sheet formats and more limited production floor space.
- 1300 × 2500 mm
- 51.18 × 98.43 in
Sweeping and unloading unit
After machining, the sheet can be moved off the table with dragging elements while suction elements sweep the surface. Bridge-cover and under-bridge layouts are available.

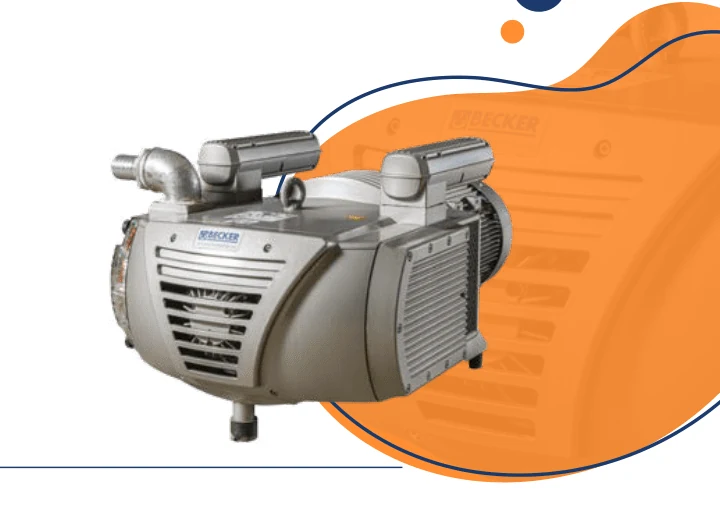

Becker 250 m³/h dry vacuum pump
A 5.5 kW Becker dry vacuum-pump alternative for the workholding system.
- 250 m³/h
- 5.5 kW

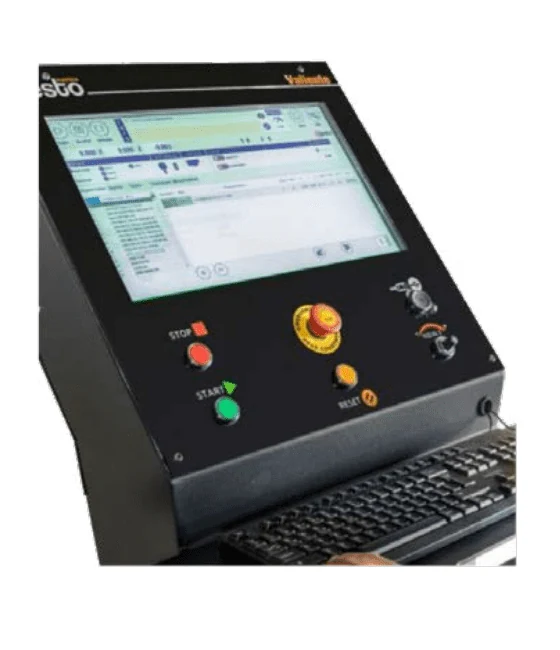

TPA industrial control unit
The Italian Windows-based industrial PC adds EtherCAT communication, detailed reporting, an application-specific interface, integrated wireless connectivity and remote support access.

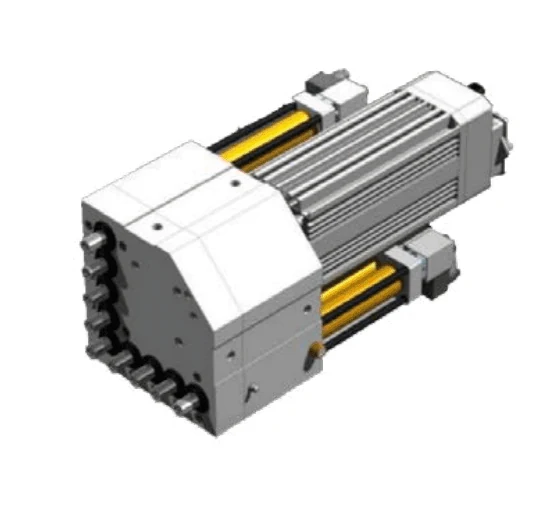

FAM 9-spindle vertical drilling unit
The Italian drilling head adds vertical boring for Minifix, hinge and shelf-hole patterns in MDF and particleboard components.
Typical applications
- Nesting and sheet optimization
- Furniture-panel routing and drilling
- Cabinet and casework production
Model selection
Frequently asked questions
What production is the Fuerte 3-axis CNC machining center designed for?
Fuerte is designed for repeatable machining of panel furniture, kitchen furniture, table and chair components, sofa frames and similar wood-based parts. It brings nesting, routing, sizing, grooving and 3D surface work together on one CNC platform.
What are Fuerte’s work area, machine dimensions and weight?
The standard work area is 2,100 × 2,800 mm (82.68 × 110.24 in). Machine dimensions are 3,820 × 3,000 × 1,995 mm (150.39 × 118.11 × 78.54 in), and total weight is 3,500 kg (7,716 lb).
Which machining operations can Fuerte perform?
The main spindle supports routing, sizing, grooving, nesting and 3D surface machining. The optional FAM 9 vertical drilling unit adds Minifix, hinge, shelf-hole and similar vertical drilling patterns.
What do the Hiteco spindle and 10-position tool magazine provide?
The ISO30 Hiteco spindle delivers 9.5–11 kW at up to 24,000 rpm and supports automatic tool changing. The fixed 10-position magazine keeps different tools ready for multi-step programs without manual tool changes between operations.
How do the six-zone vacuum table and VPS dry vacuum pump hold parts?
The worktable distributes vacuum through six independently selectable zones, so holding can be matched to the workpiece area. The standard VPS dry-type pump supplies 250 m³/h vacuum capacity to the holding system.
Which equipment is standard and which options are available for Fuerte?
Standard equipment includes the Hiteco spindle, PC-based CNC control, Pegasus CAD/CAM workflow, fixed 10-position tool magazine and VPS dry vacuum pump. Options include extended or compact tables, sweeping and unloading, Becker vacuum, TPA control and the FAM 9 vertical drilling unit.
Which CAD/CAM workflow and file formats does Fuerte support?
Pegasus CAD/CAM lets operators design, review and simulate parts in 3D before machining code is prepared. The workflow supports STL, DWG, DXF and IGES imports; the PC-based control also provides 3D preview, reporting and remote service access.
