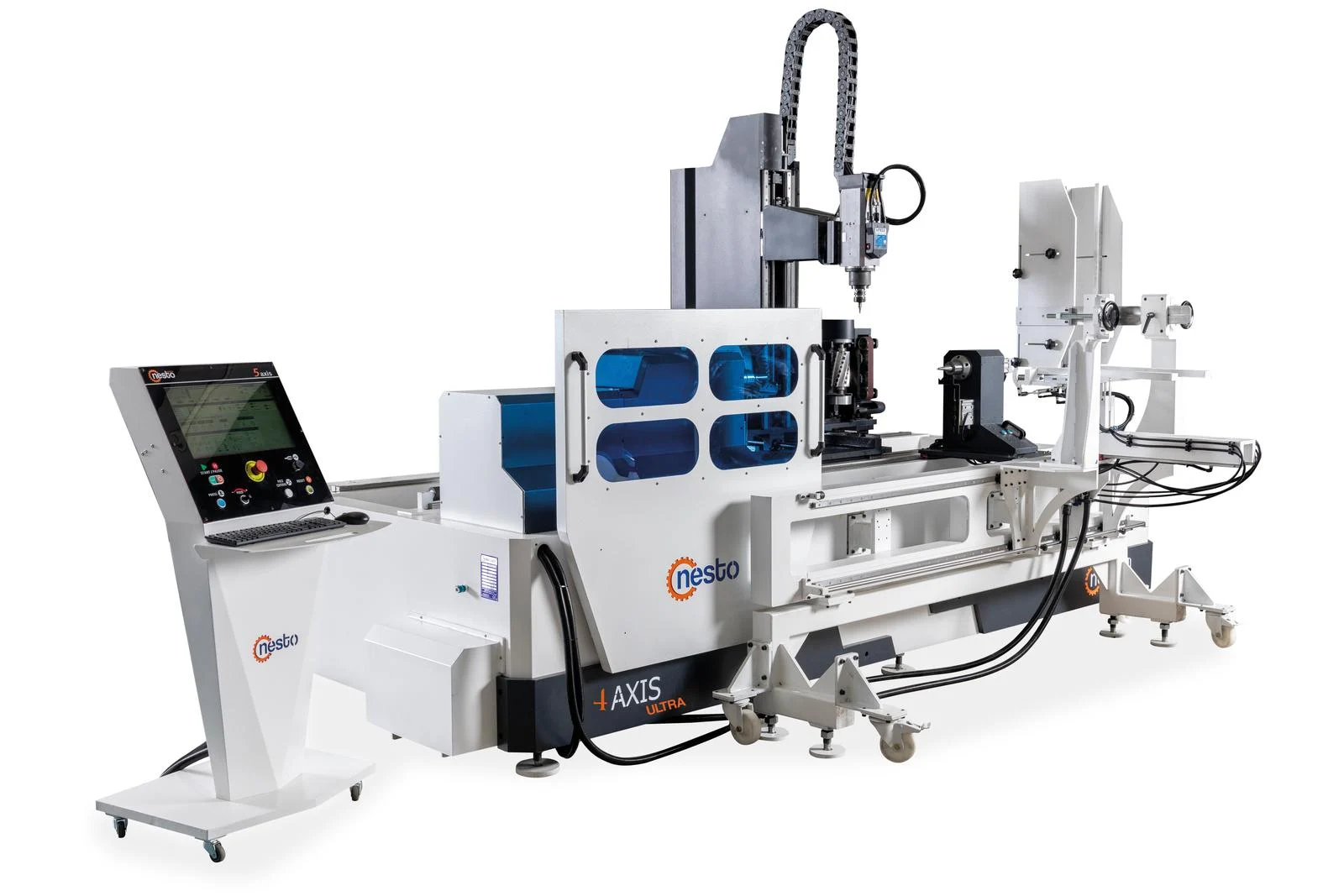

4-Axis Ultra CNC Wood Lathe Machine
Configure the right machine for your production
Share your part, material and capacity requirements. Our team will help you determine the suitable machine configuration.
- Application-focused configuration
- Technical sales guidance
- Installation and service planning
You can include part drawings and production expectations in the quote form.
General Features and Production Capabilities
Four-axis production for large furniture components
Turning, indexed machining, milling, drilling and shaping can be combined for chair, table, sofa and armchair legs, balusters, columns and decorative solid-wood components.

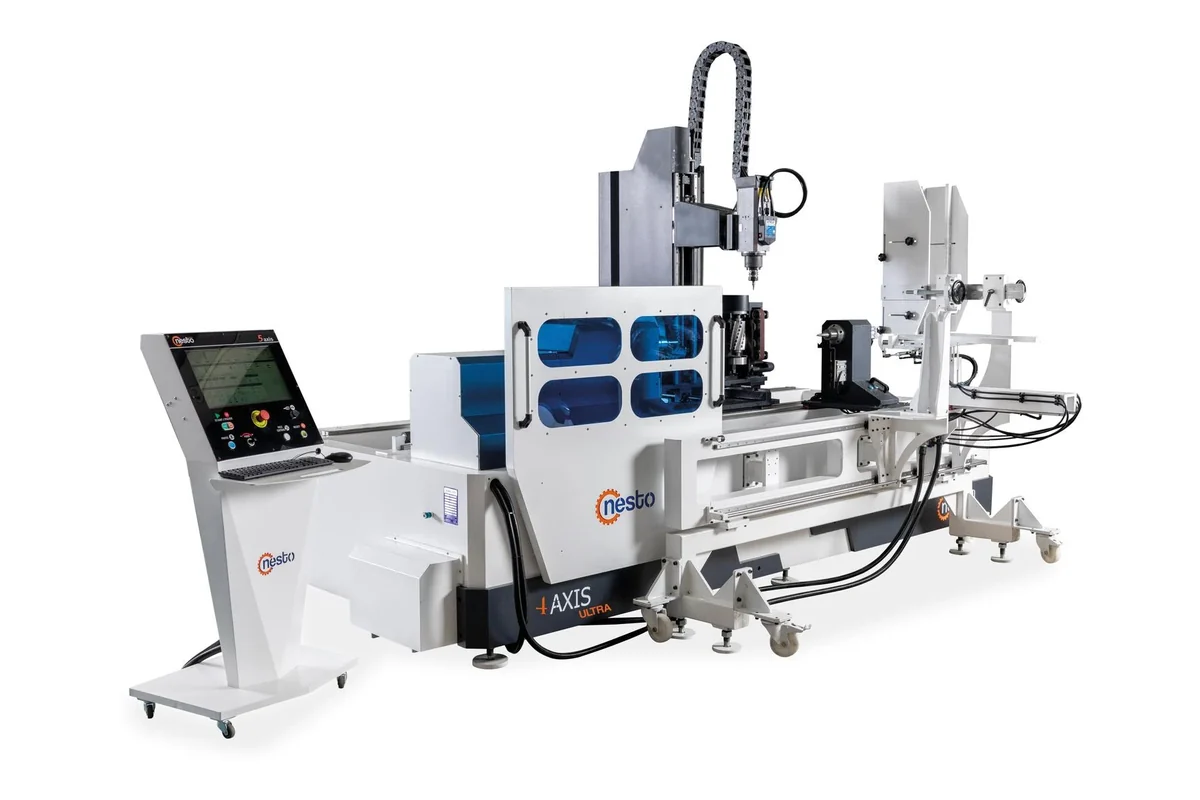

Ø400 × 1,200 mm working capacity
The working envelope supports long parts with large sections while keeping the blank between controlled drive and tailstock references.

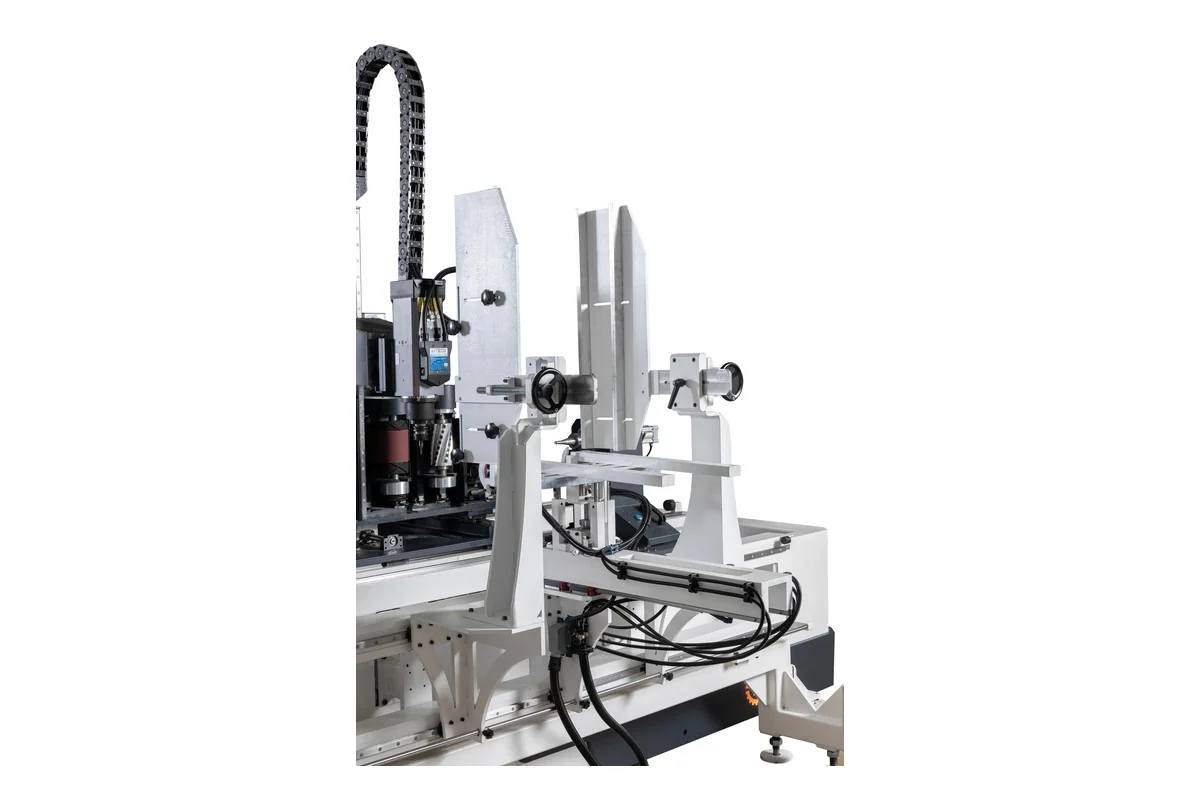

Rigid chassis and precision servo motion
A reinforced, vibration-resistant chassis works with Panasonic servo motors, precision guides, carriages, racks and ball-screw components for repeatable profiles.

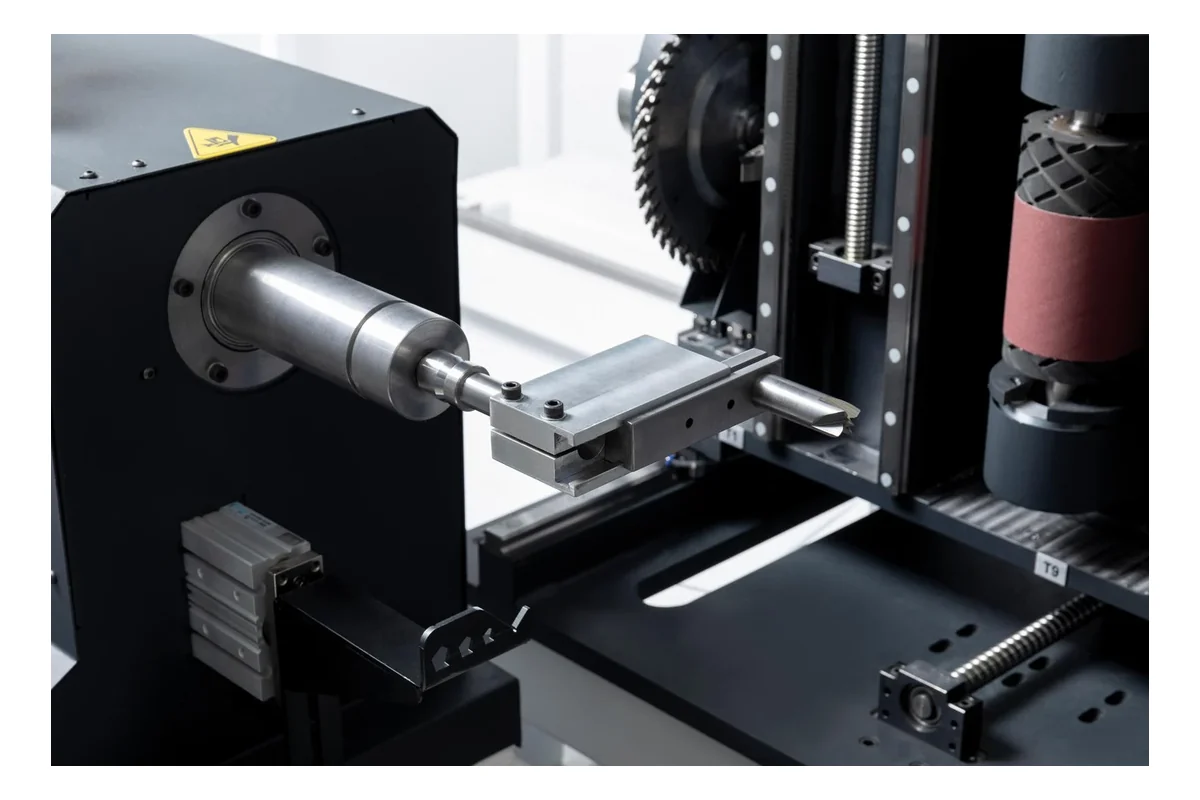

Direct-drive rotation and fast length setup
The 5 kW workpiece axis reaches 3,000 rpm. Pneumatic clamping operates at 7 bar, and length is adjusted from the control panel without a wrench or screw setting.
Automatic preparation for repeatable machining
ILC central lubrication protects the motion system, while automatic tool measurement records the active tool reference before machining.
TPA industrial control workflow
The Windows-based TPA platform combines axis control, EtherCAT communication, job sequencing, production reports, 3D preview and remote service connection.

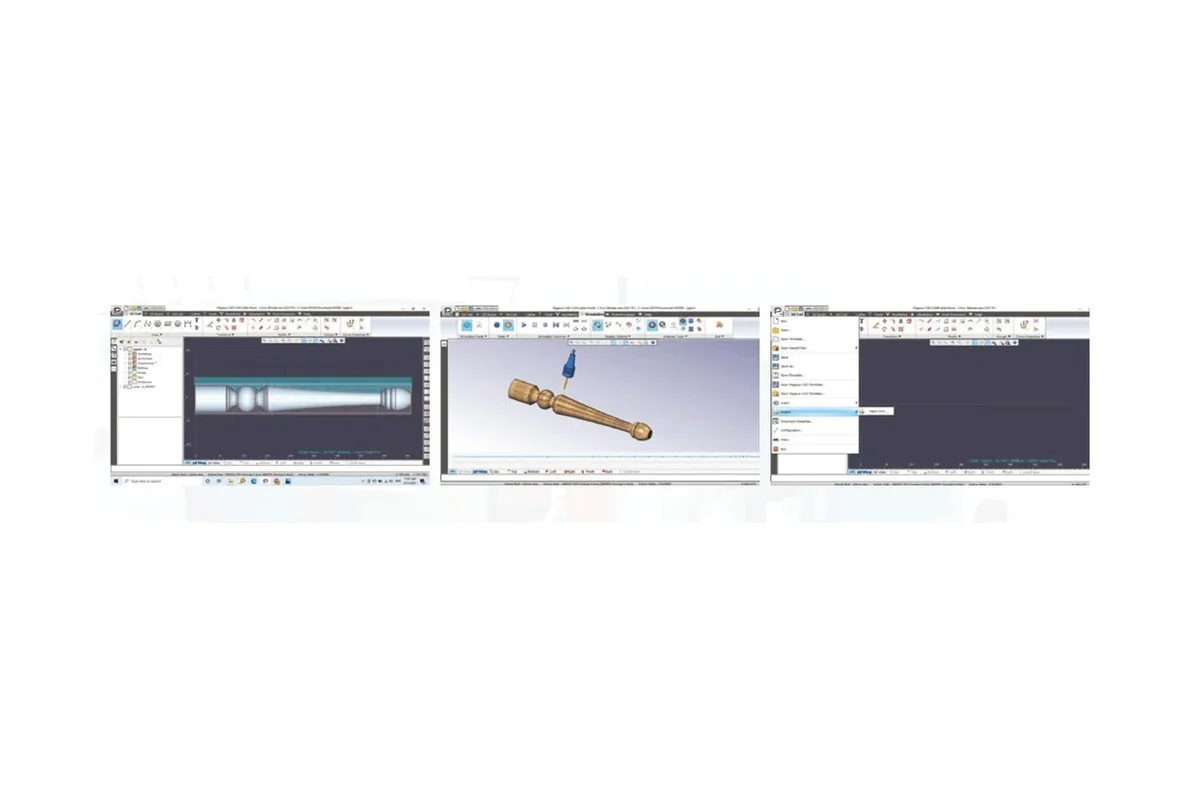

Pegasus 4-Axis digital production path
Parts can be prepared, reviewed and simulated in 3D before the machining program is generated, creating a documented path from design to production.
Technical Specifications
| Specification | Standard machine |
|---|---|
| Maximum workpiece diameter and length | 400 × 1,200 mm15.75 × 47.24 in |
| Control unit | TPA industrial control · EtherCAT · remote connection · 3D preview |
| Z-axis travel | 1,200 mm47.24 in |
| X-axis travel | 225 mm8.86 in |
| Z-axis rapid speed | 70 m/min |
| X-axis rapid speed | 30 m/min |
| Y-axis rapid speed | 20 m/min |
| Workpiece rotation | 3,000 rpm · 5 kW direct-drive servo axis |
| Total installed power | 33 kW |
| Machine weight | 4,600 kg |
| Machine dimensions (L × W × H) | 3,950 × 3,720 × 3,900 mm155.51 × 146.46 × 153.54 in |
| Lubrication unit | ILC central automatic lubrication |
| Workpiece clamping | Pneumatic piston · 7 bar |
| Workpiece-length adjustment | Control-panel adjustment · keyless and screwless |

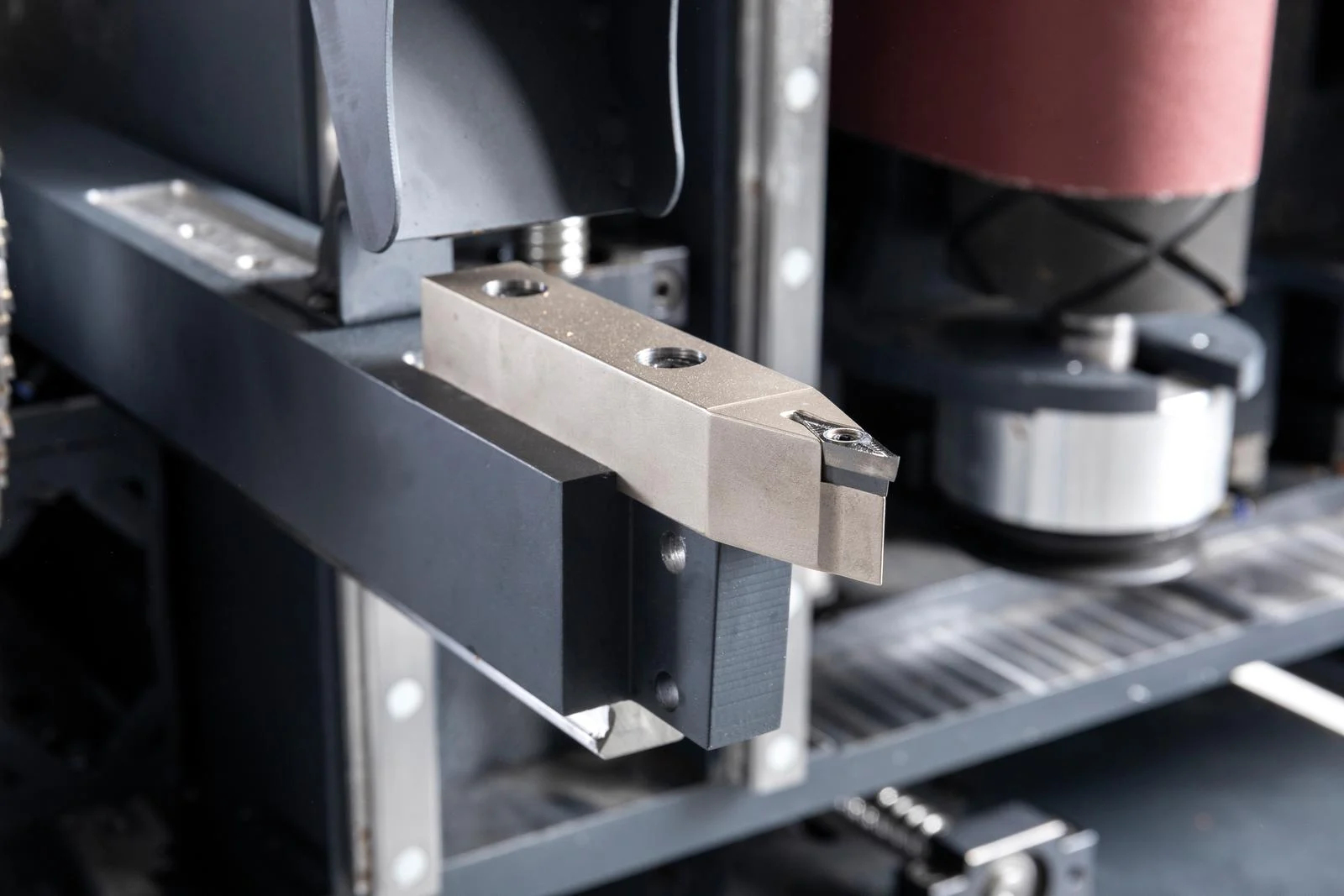

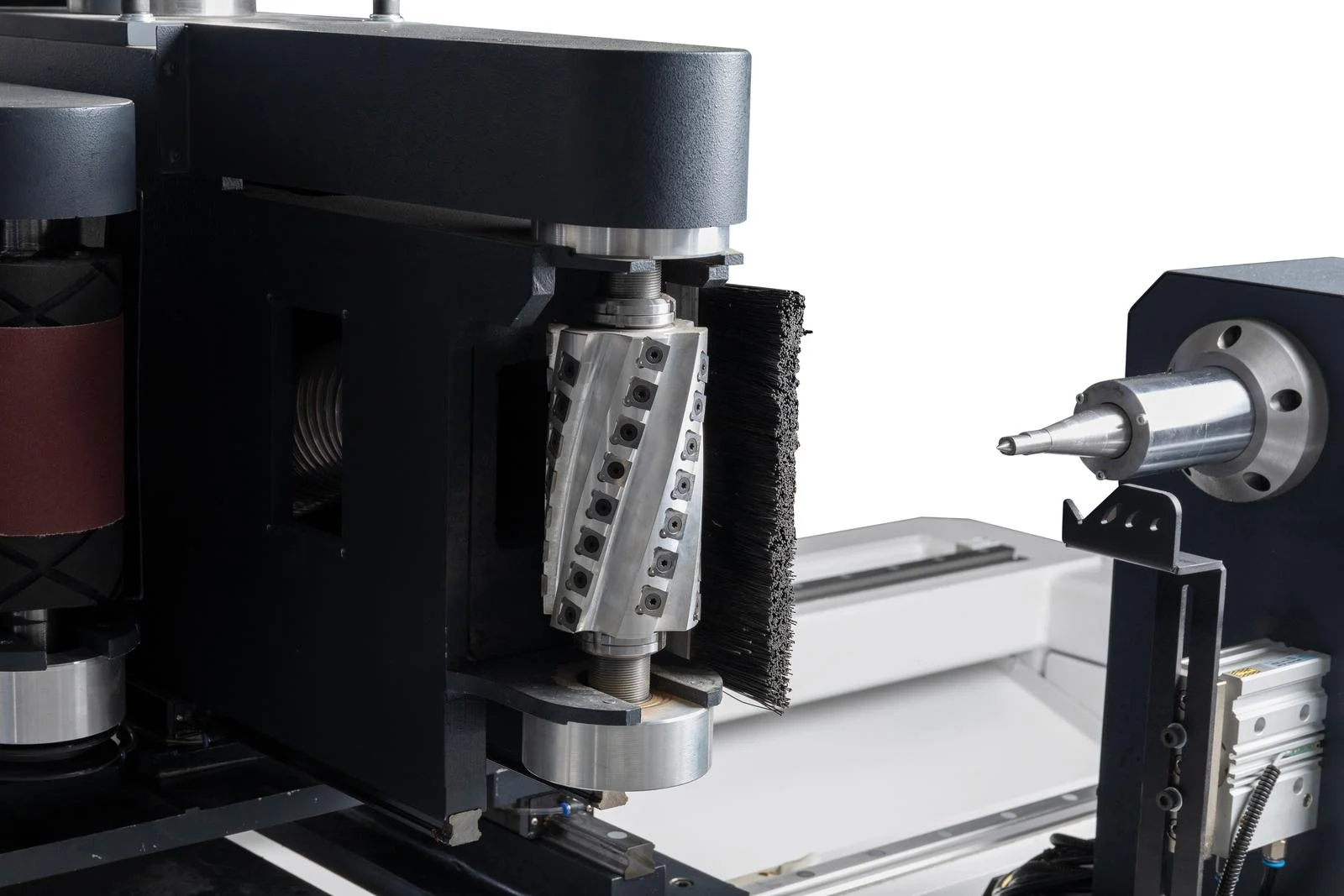

| Standard cutting units | Hardened triangular, cup and top blades |
| High-speed machining spindle | 5.5–6 kW Hertz · 24,000 rpm · automatic tool change |
| Tool magazine | Five tool positions |
| Drawing and production software | Pegasus 4-Axis CAD/CAM for the machine |
| Standard safety system | Perimeter safety fence |
Standard Main Equipment
TPA industrial CNC control
Windows-based control with EtherCAT, production reporting, 3D preview and remote connection.
Pegasus 4-Axis CAD/CAM workflow
Parts can be designed, reviewed and simulated in 3D before the production program is generated.

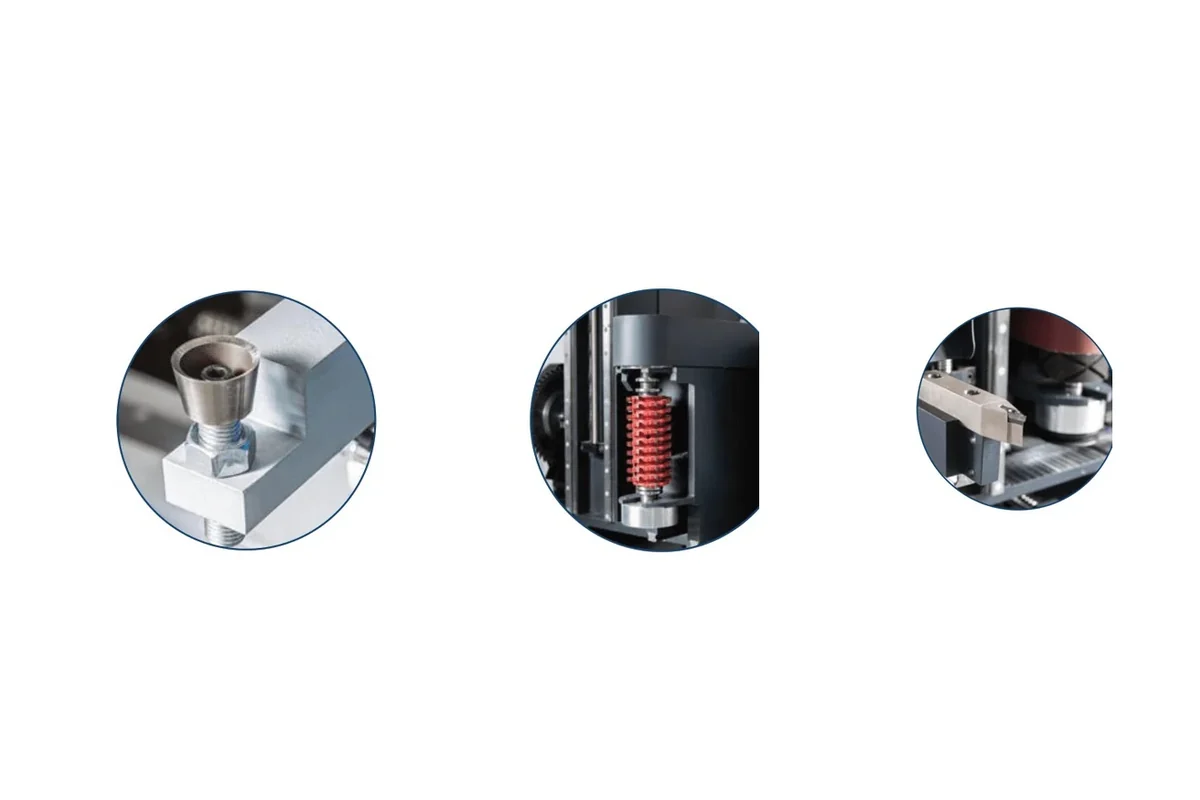

Three standard cutting units
Hardened triangular, cup and top blades cover detailed profiling, rough stock removal and longitudinal shaping.

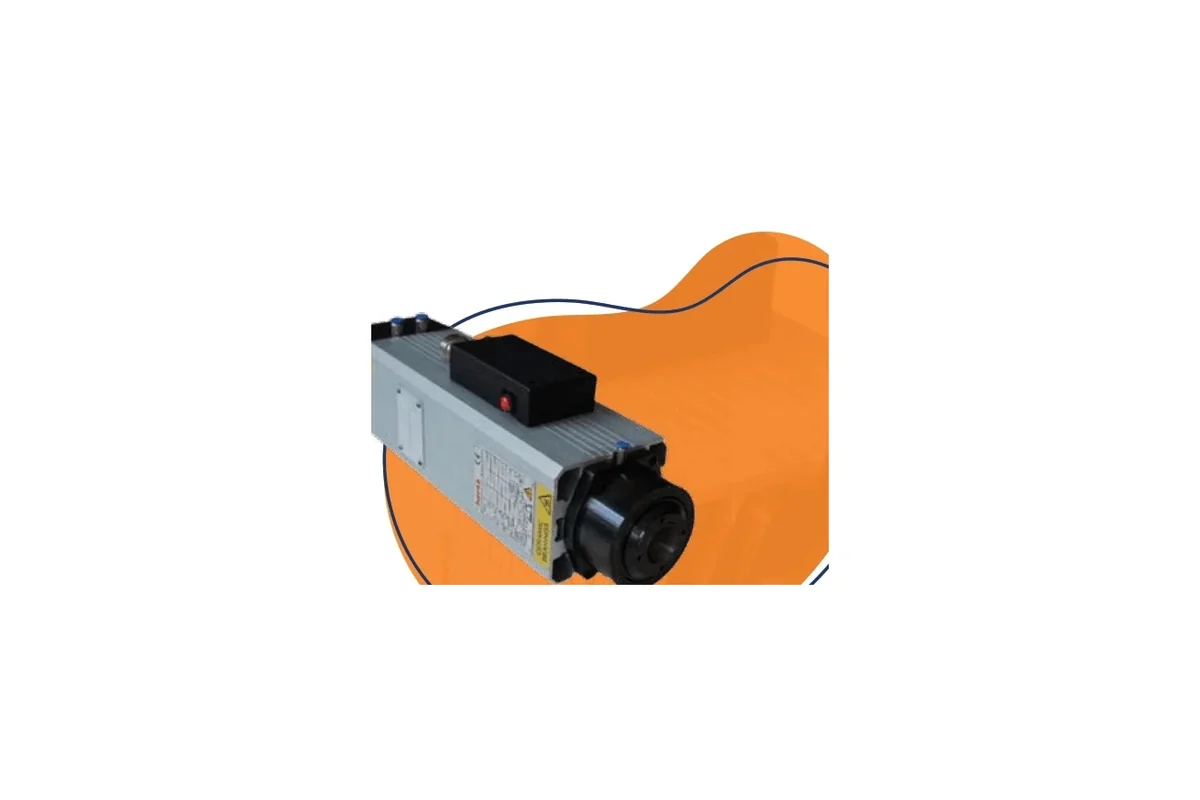

Hertz high-speed spindle
The 5.5–6 kW spindle reaches 24,000 rpm and uses ceramic bearings, 380 V supply, air cooling and automatic tool change.
- 5.5–6 kW
- 24,000 rpm
- 380 V

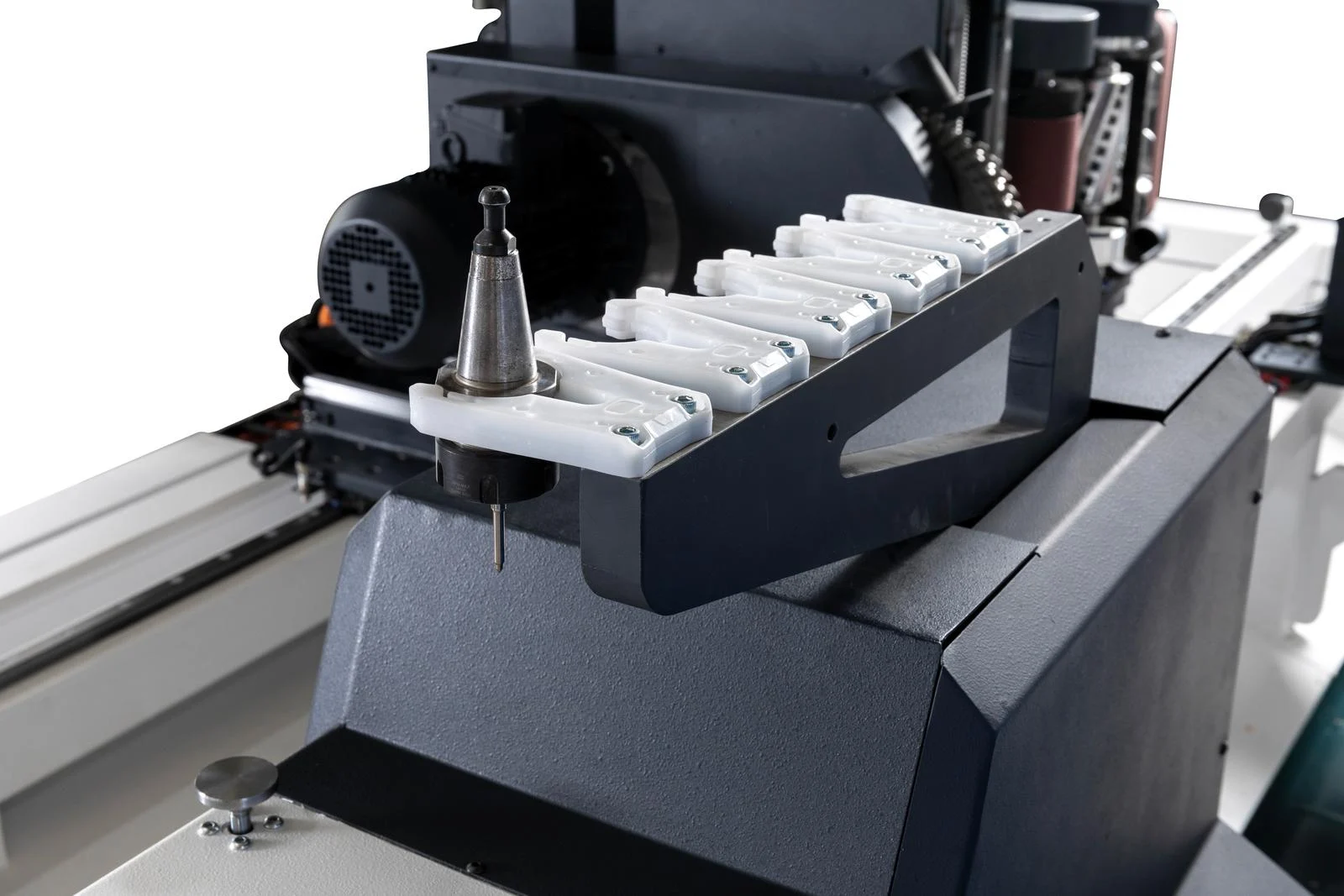

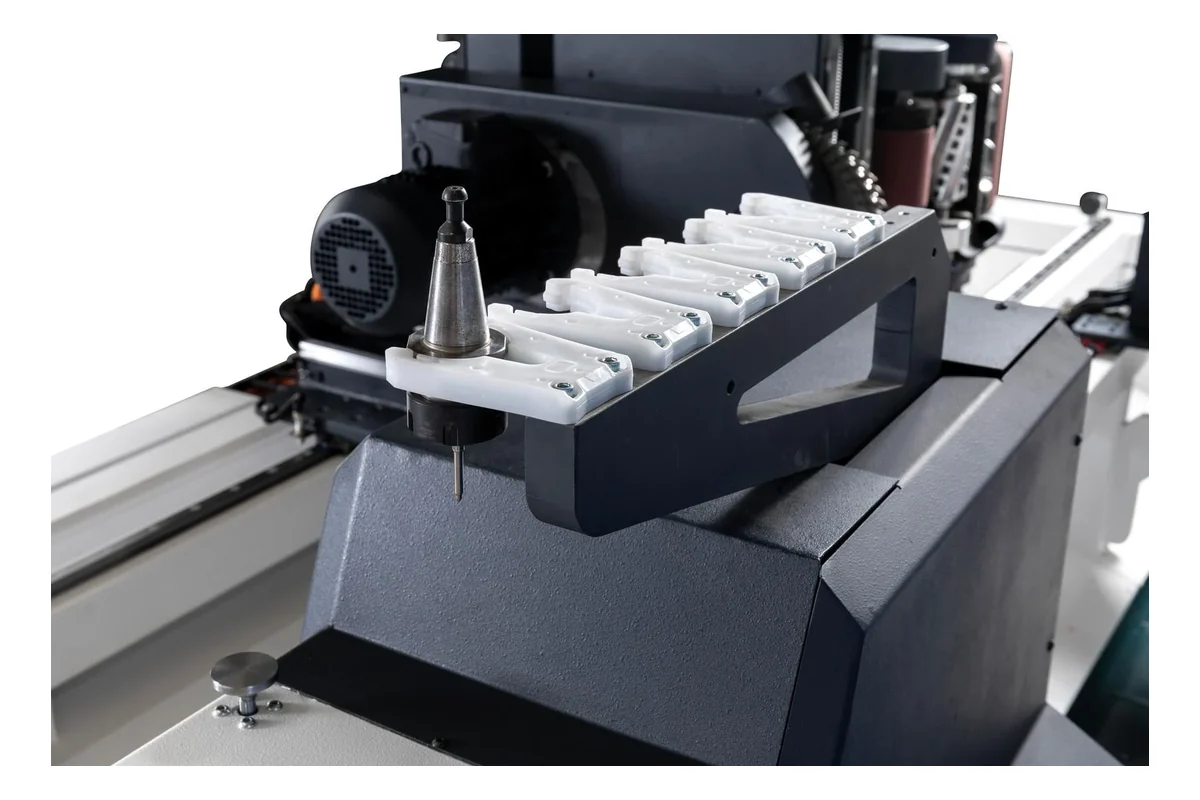

Five-position tool magazine
Five holders keep the required machining tools ready for automatic changes within the program.

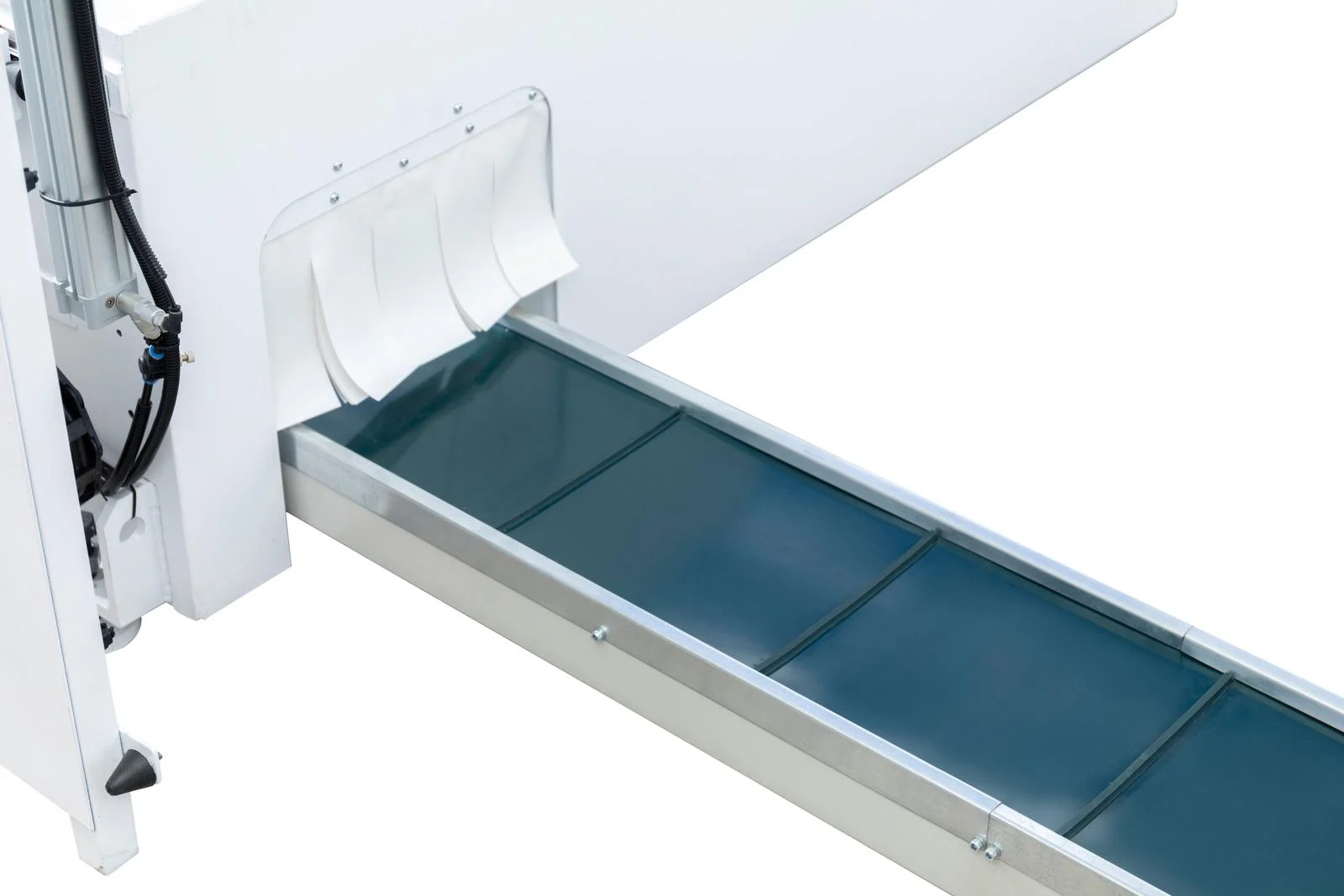

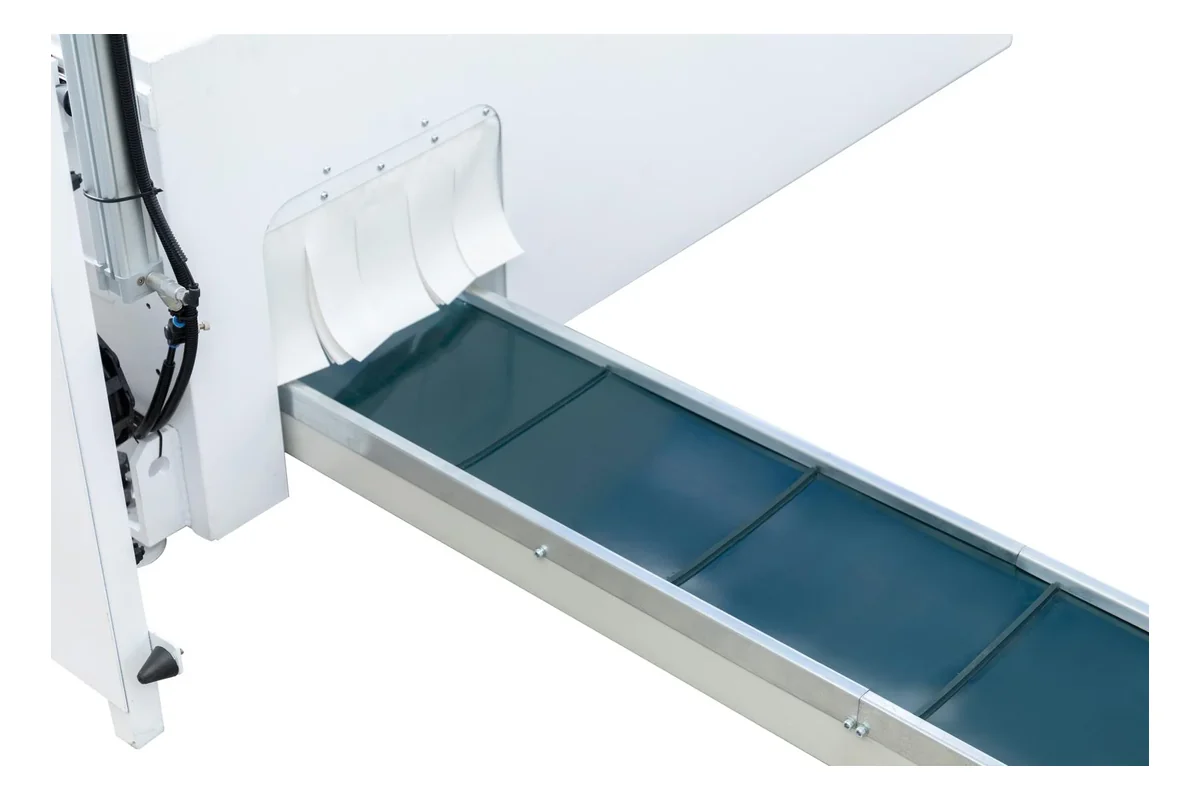

Part discharge conveyor
The conveyor supports controlled transfer of completed parts away from the work area.

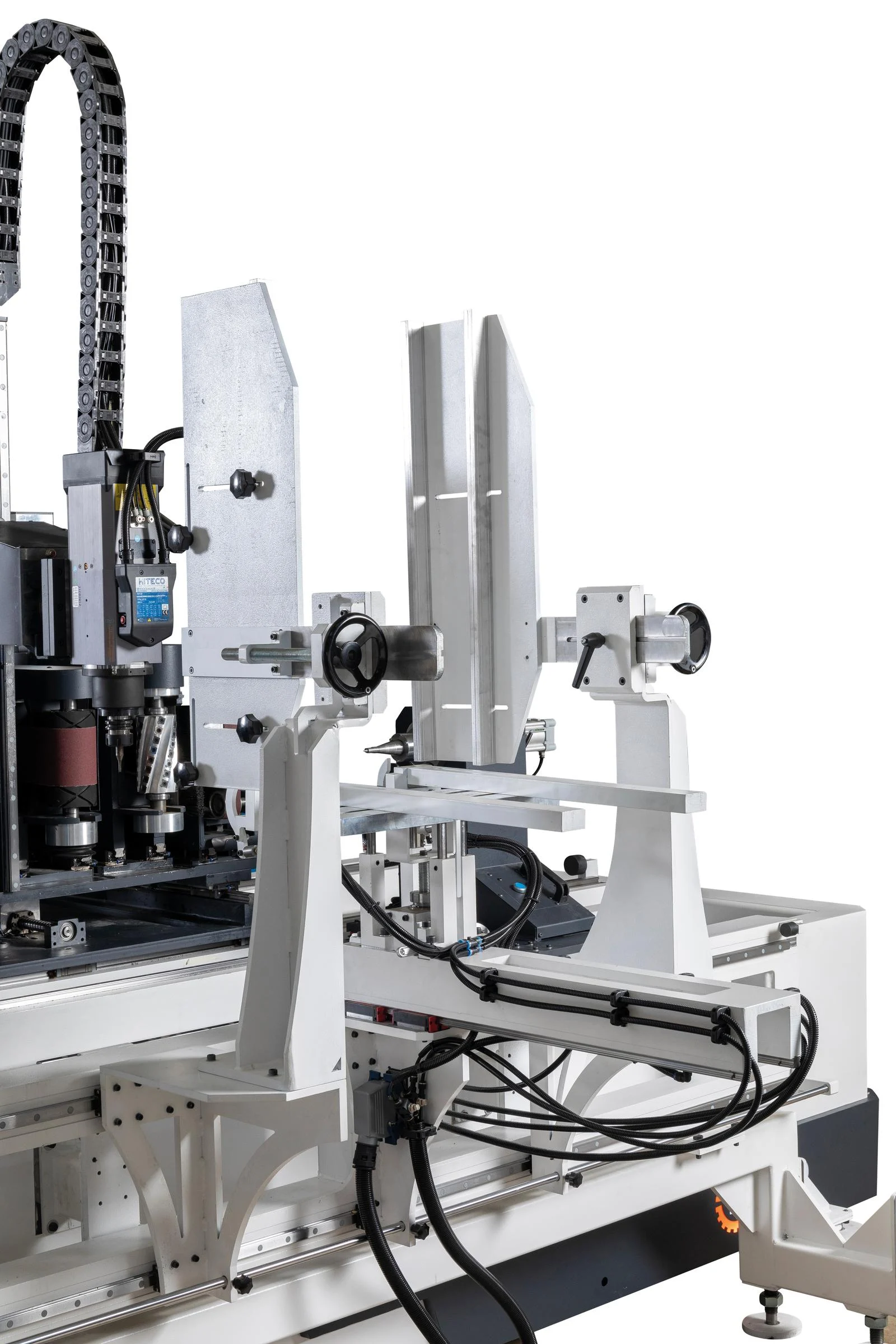

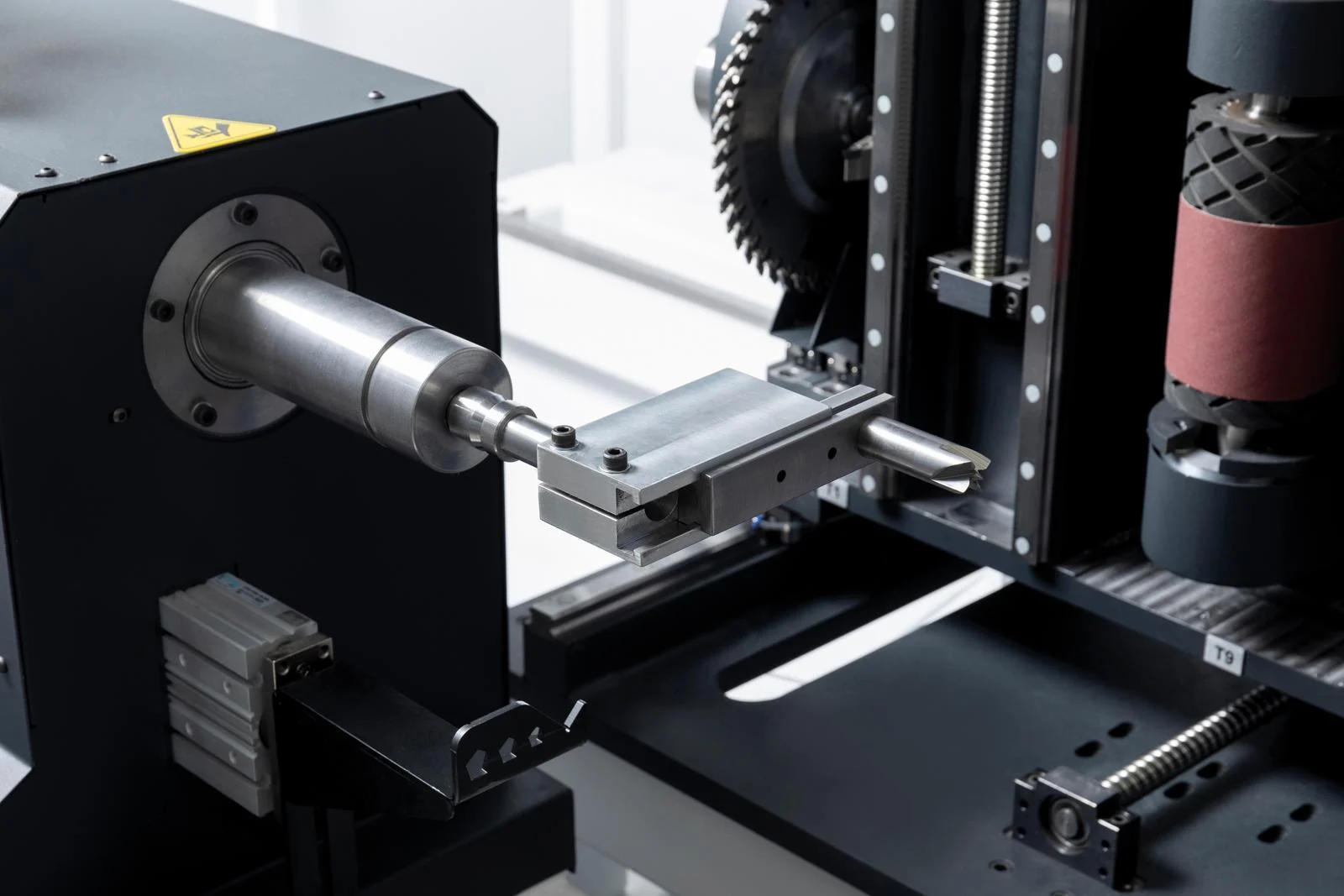

Off-center tailstock fixture
Supports workpieces whose reference or machining geometry requires an offset tailstock position.

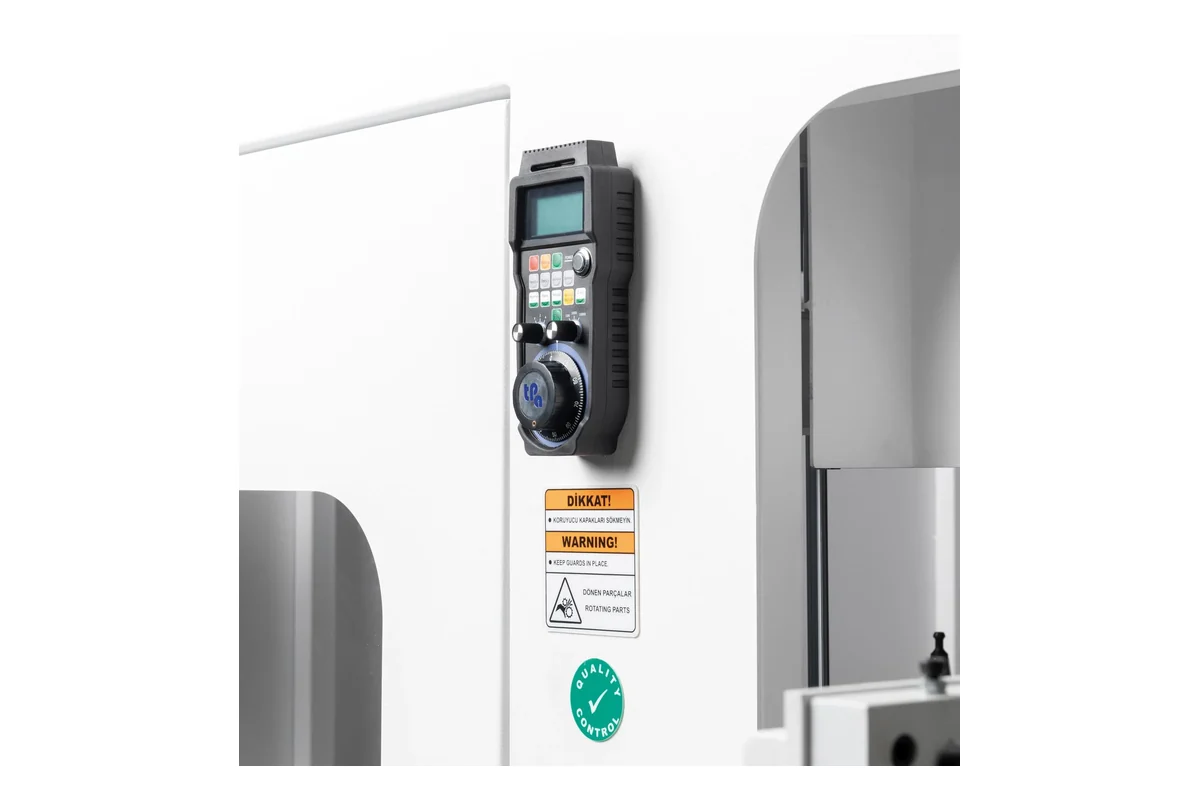

Electronic handwheel
Provides local, incremental axis movement during setup, reference checks and service operations.

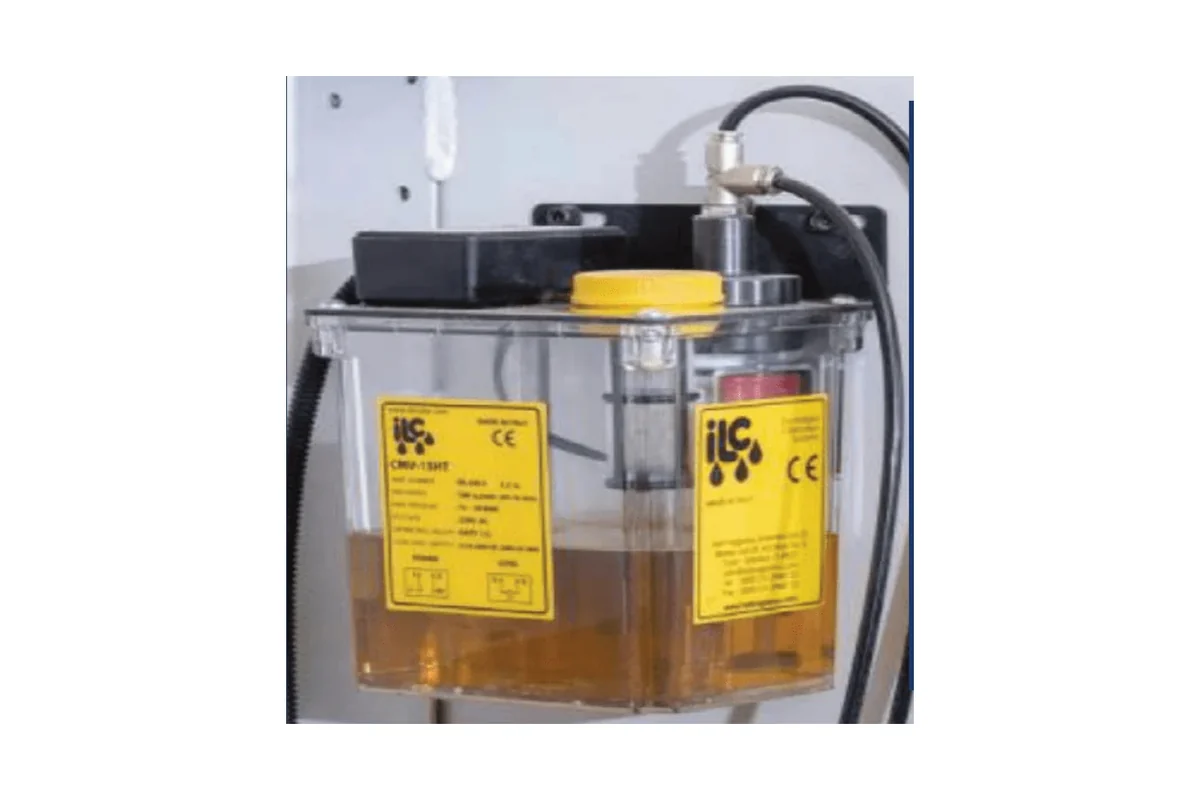

ILC central automatic lubrication
Oil is distributed automatically to support the precision motion components during production.

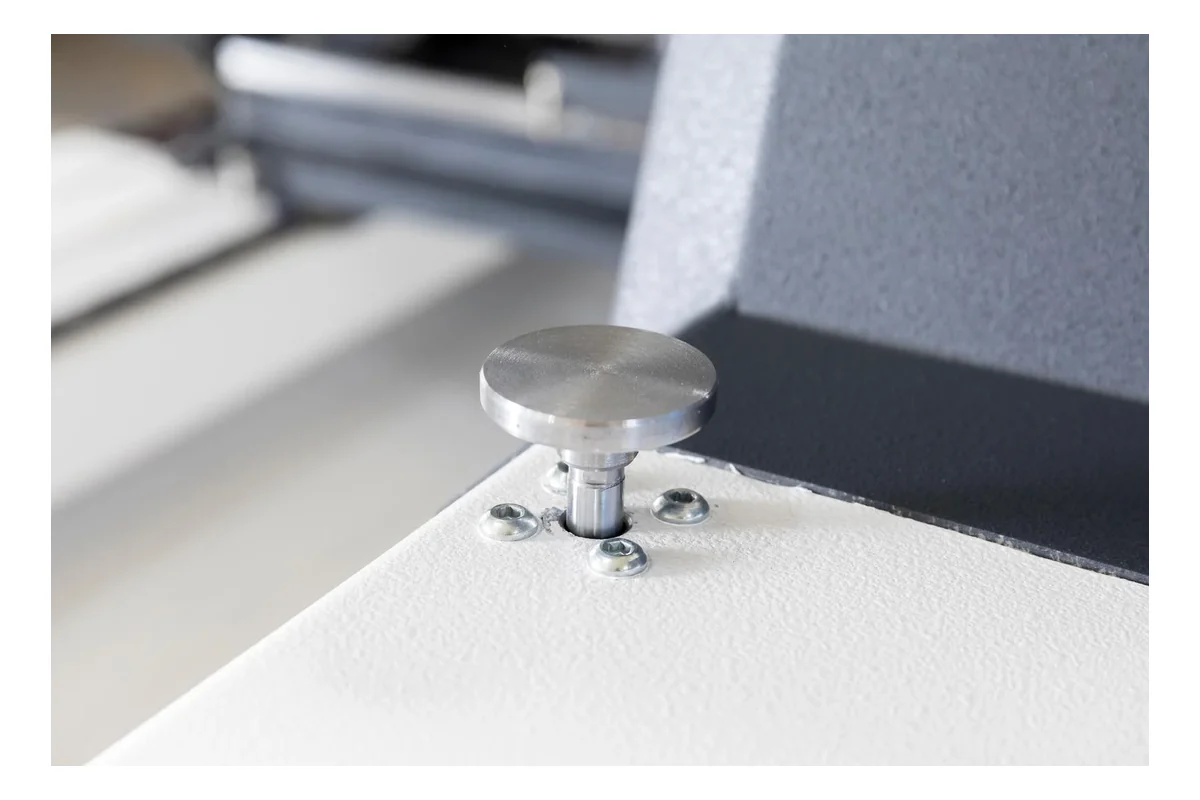

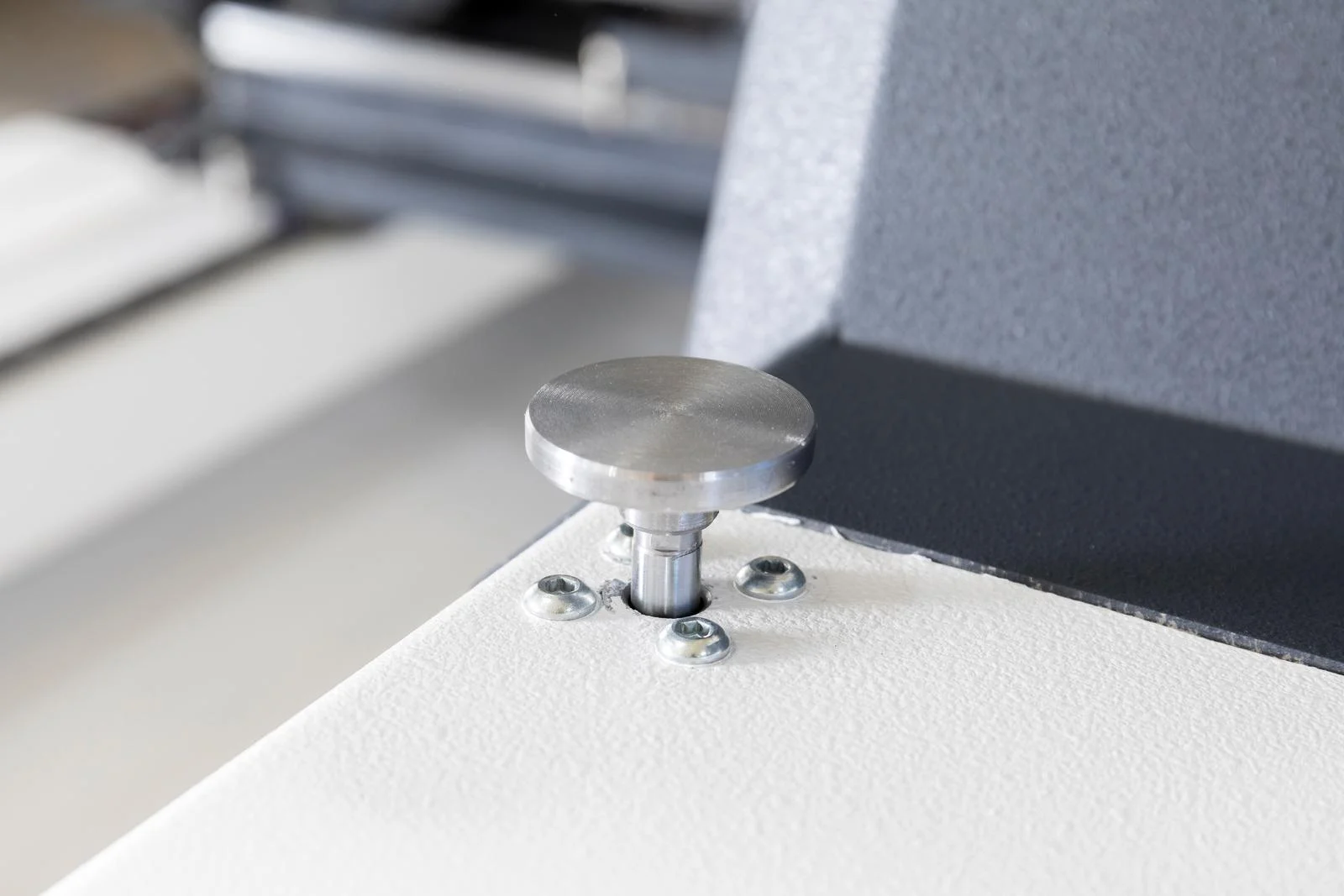

Automatic tool measurement
The active tool reference is measured before machining to support consistent setup and tool changes.

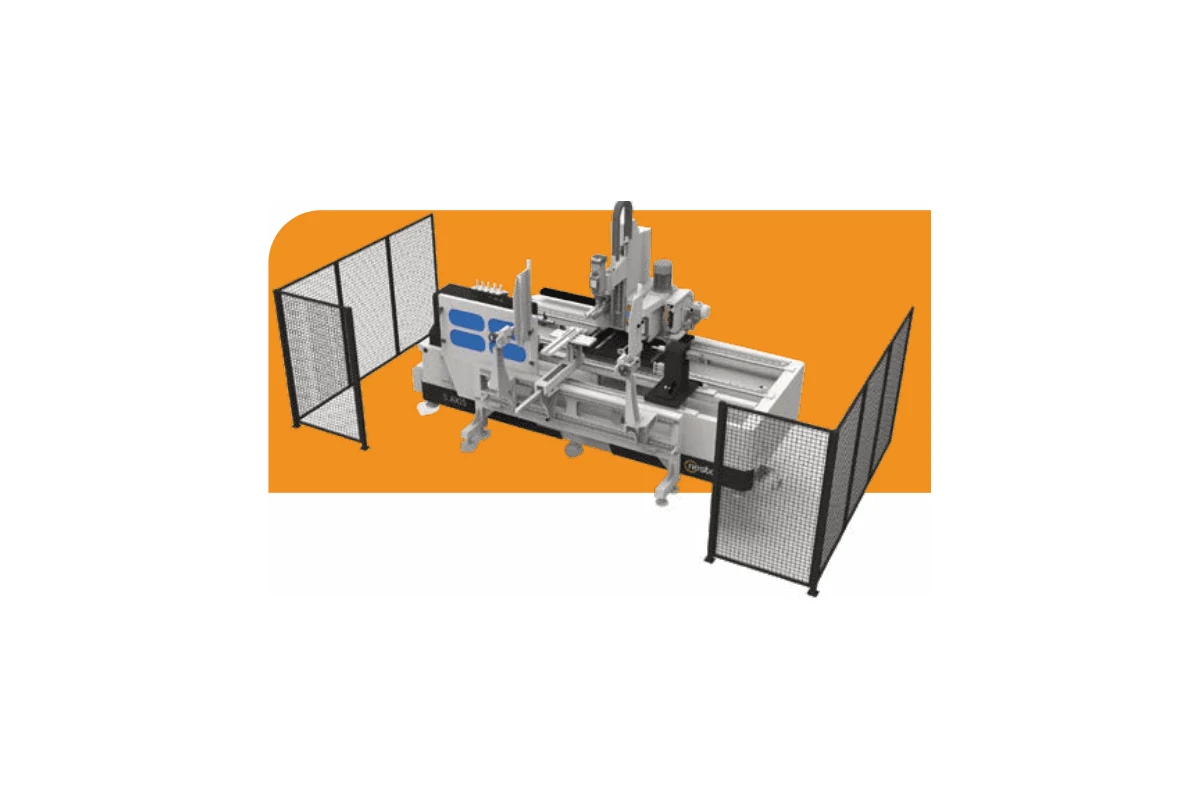

Perimeter safety fence
The standard fence defines the protected machine area and supports planned operator access around the cell.
Configuration Options

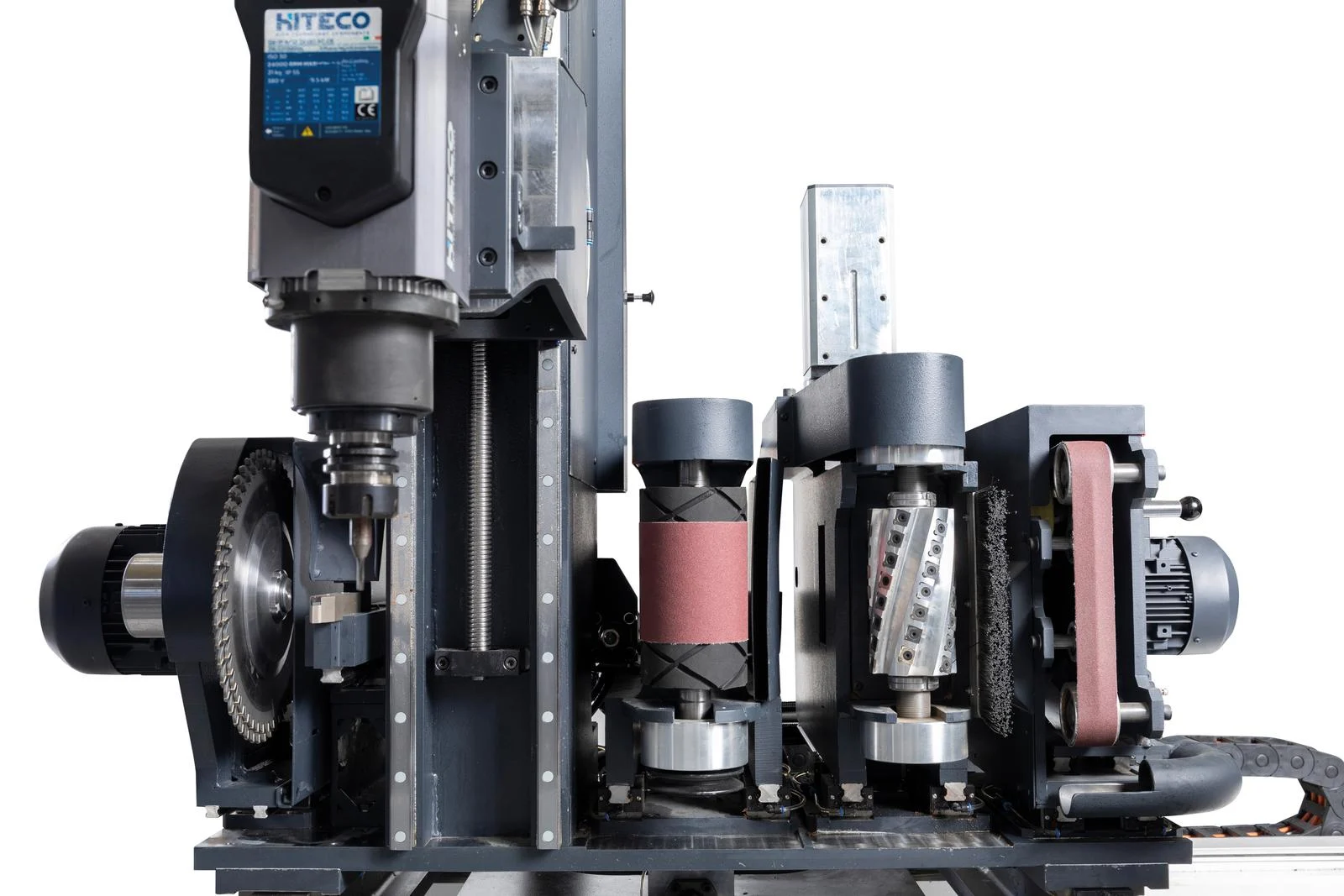

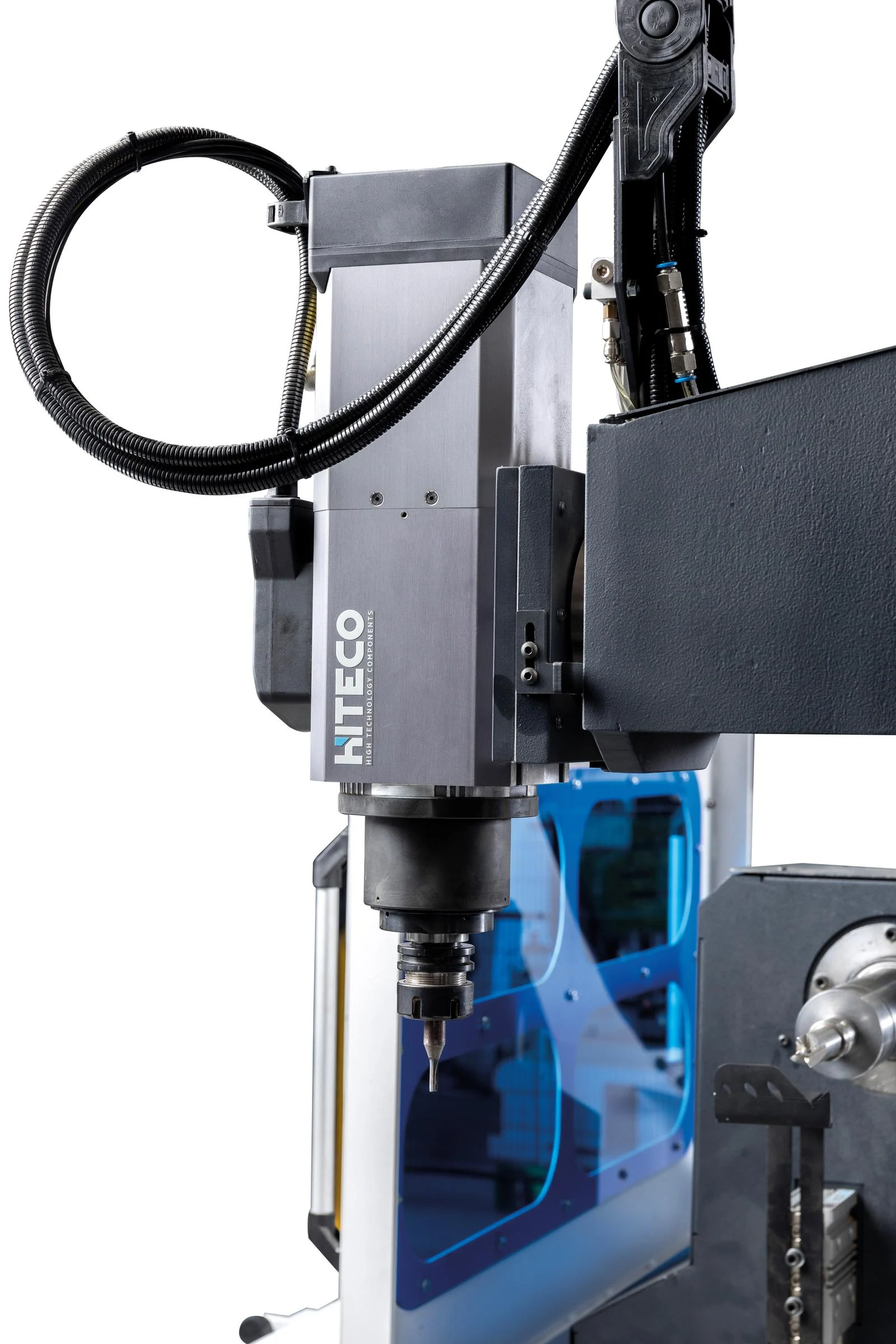

Hiteco ISO30 spindle
The 9.5–11 kW, 24,000 rpm option adds ISO30 tooling, ceramic bearings, electrofan and compressed-air cooling.

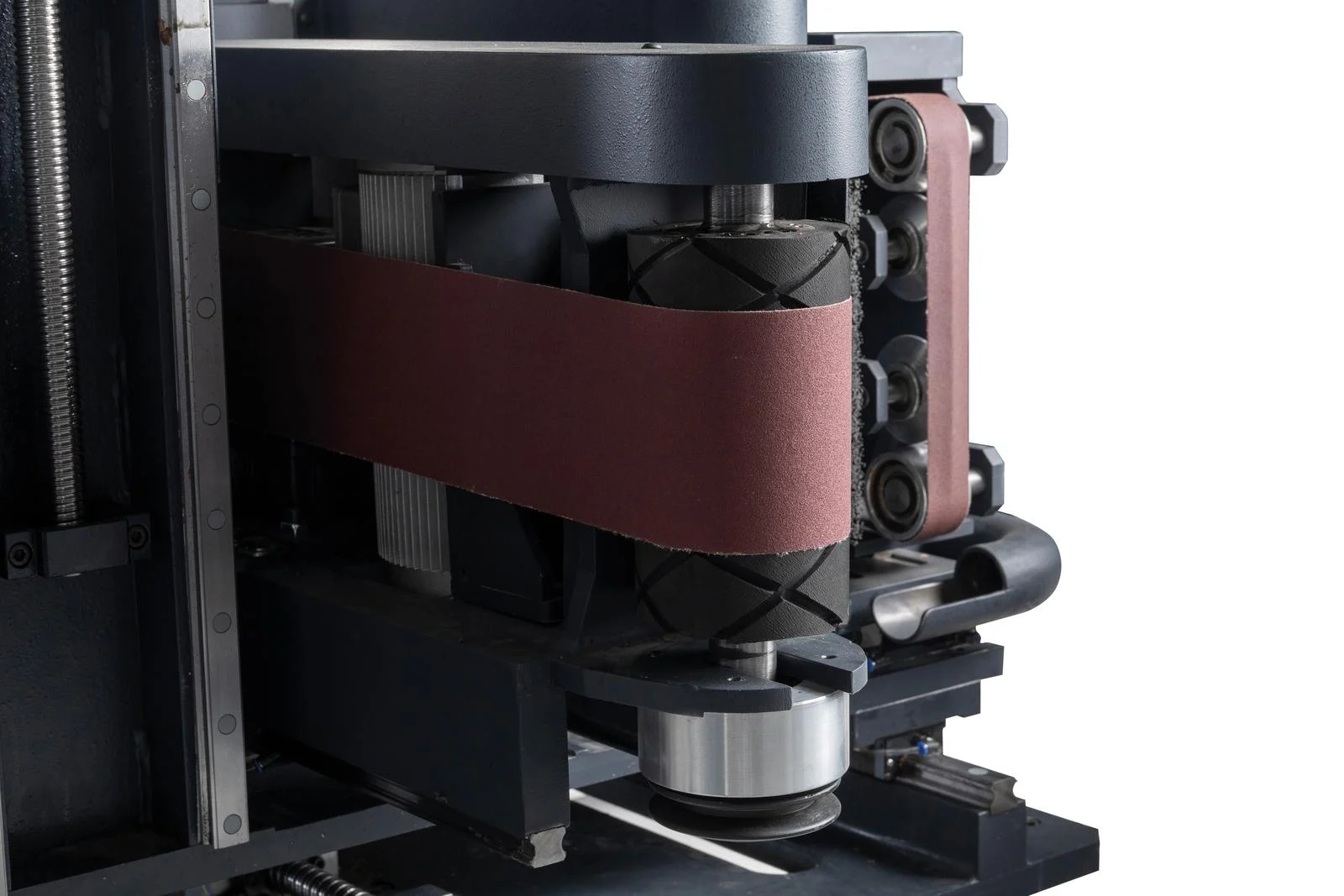

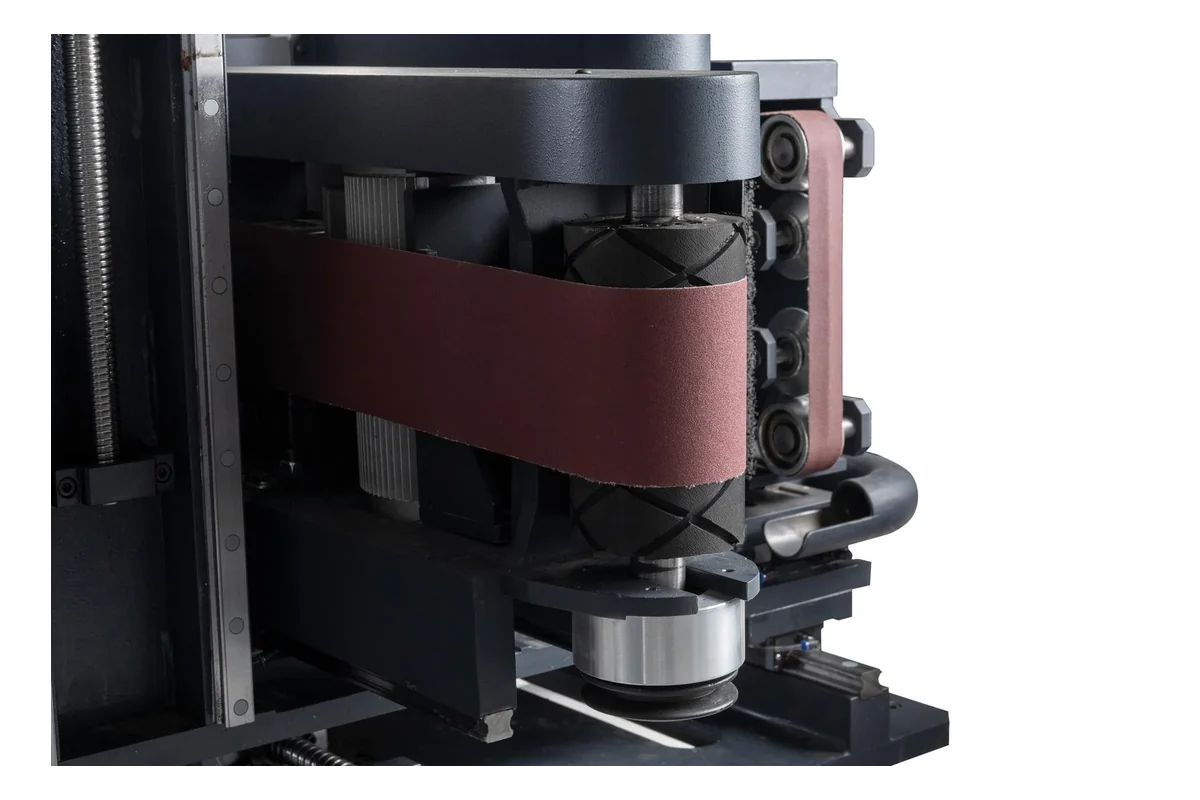

Oscillating sanding unit
Adds programmable sanding after turning to prepare broad surfaces for the next finishing stage.

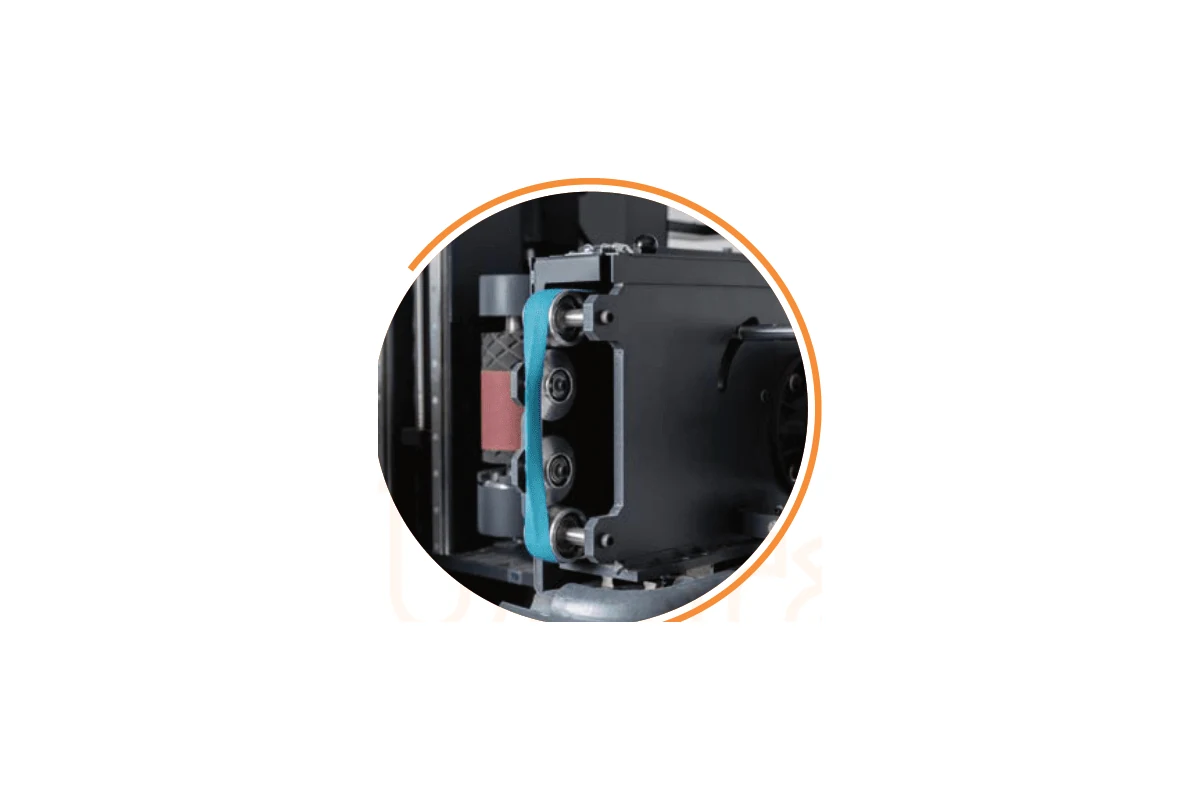

Detail sanding unit
Targets small details, corners and local profile transitions with a replaceable sanding belt.

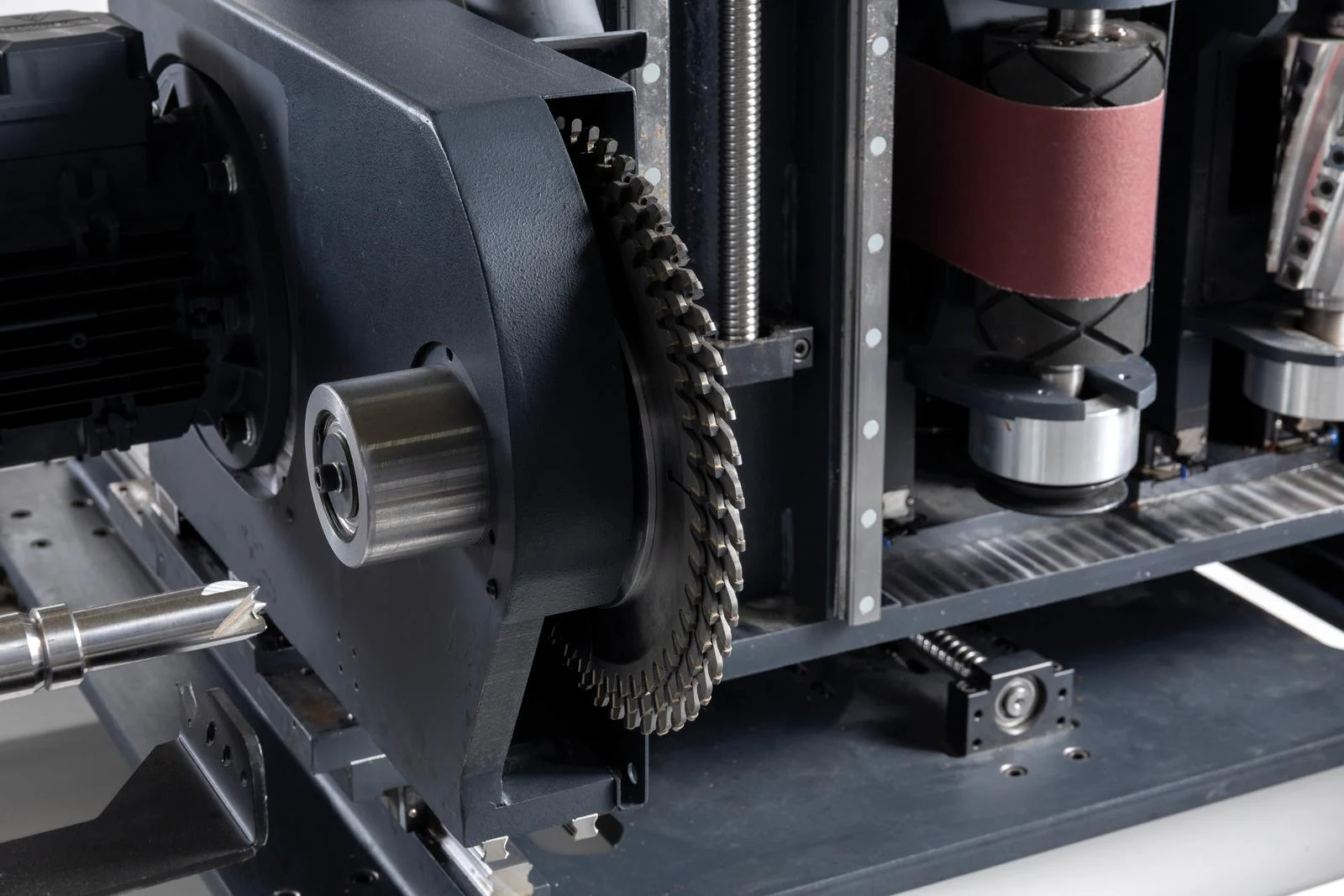

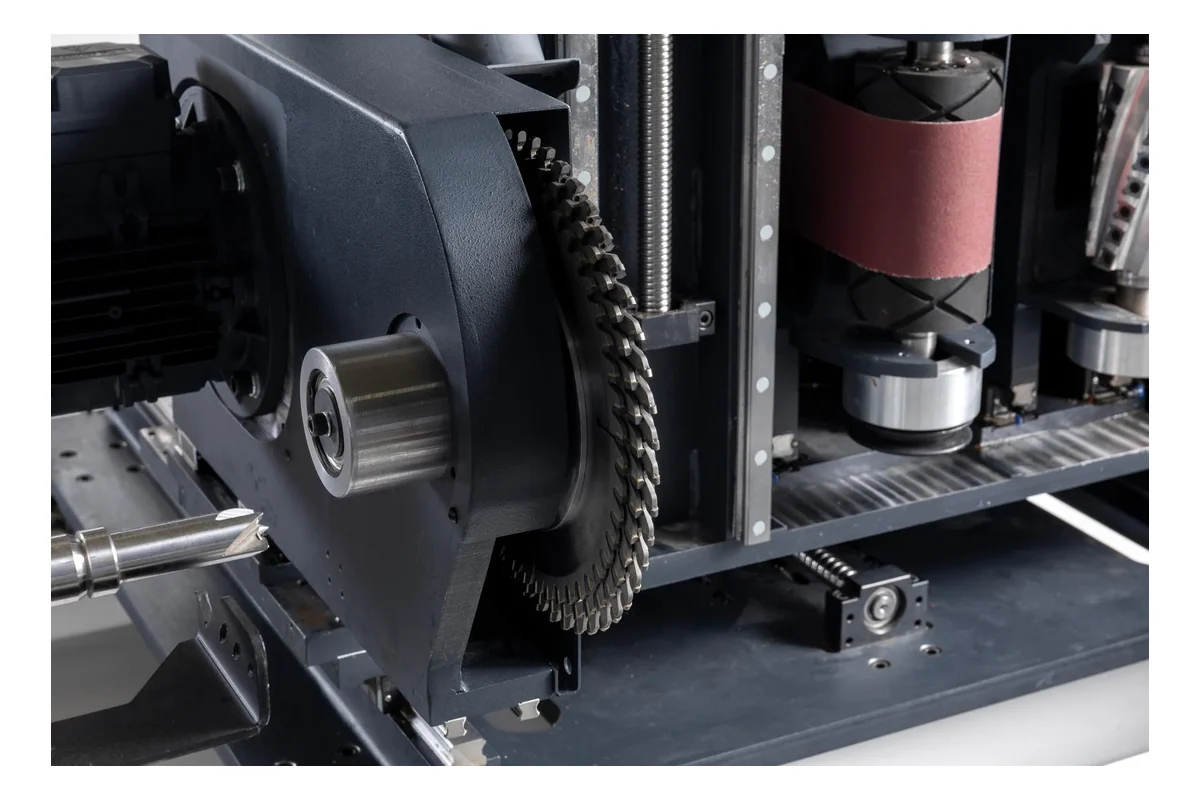

Circular saw unit
Adds deep, efficient stock removal for geometries that benefit from a dedicated circular cutting tool.

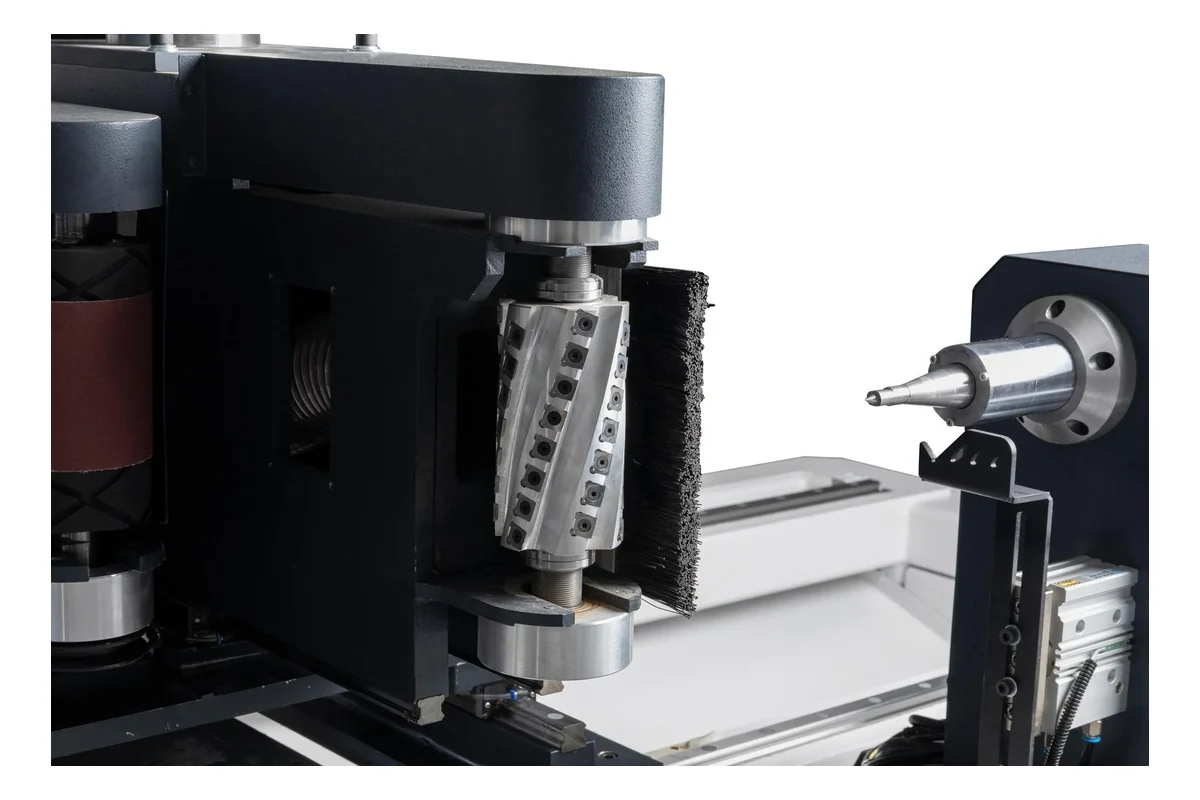

Aluminium top blade
Replaceable inserts support profile shaping with a renewable cutting edge.

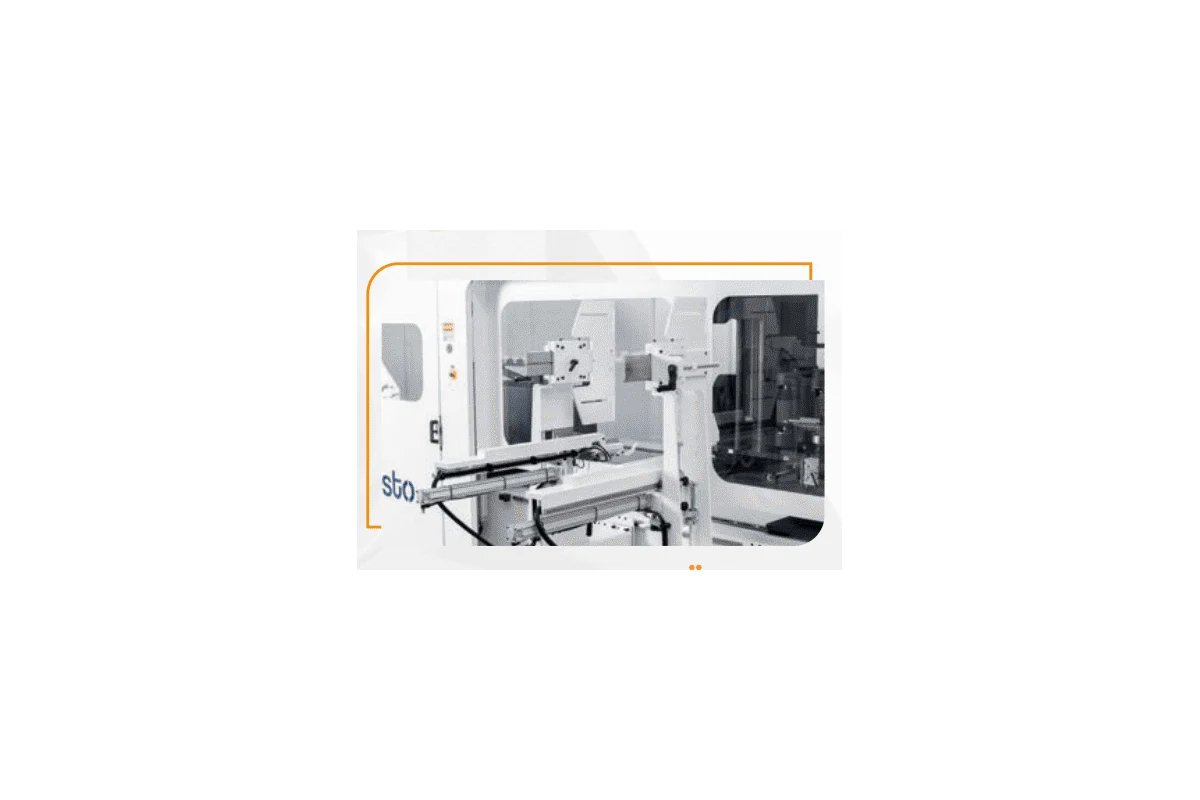

Automatic loading unit
Feeds prepared blanks into the work area for repeat production; the final configuration follows blank geometry and production rhythm.

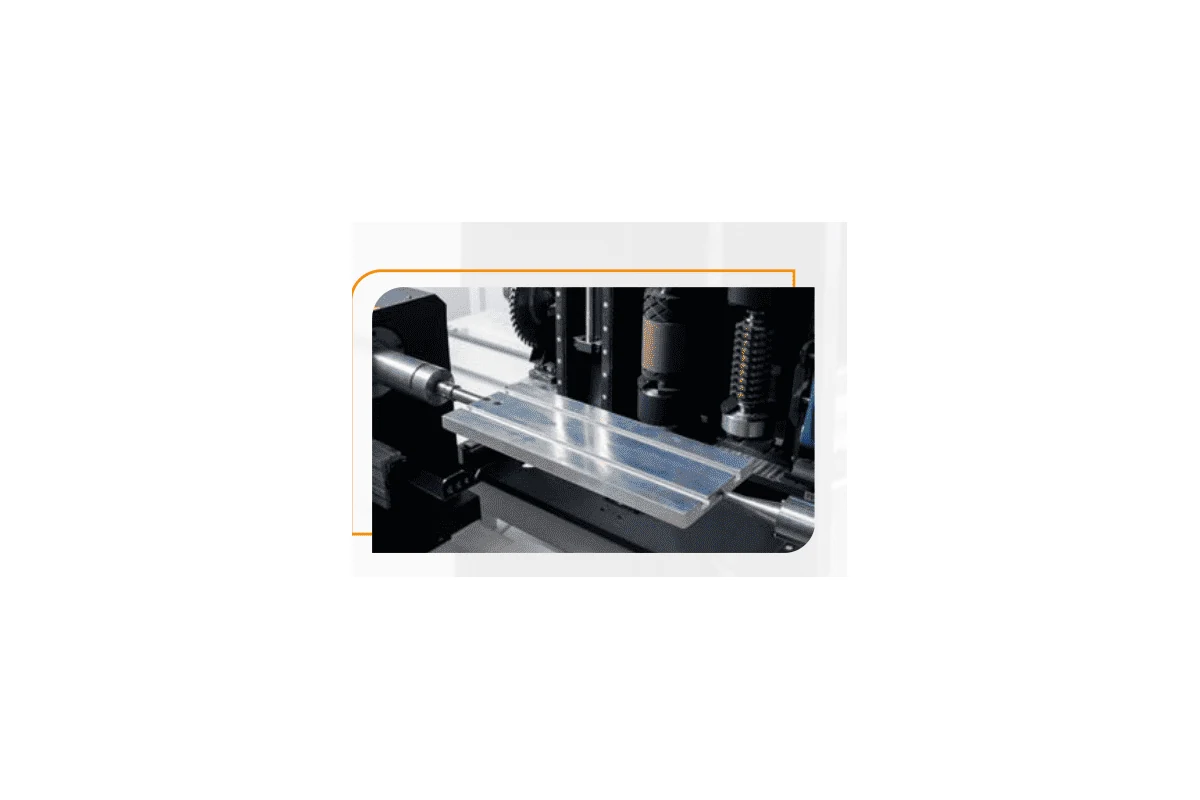

Aluminium work table
Supports alternative workholding for end, slot and surface operations when the part geometry calls for table-based fixing.
Pegasus 4-Axis Plus CAD/CAM

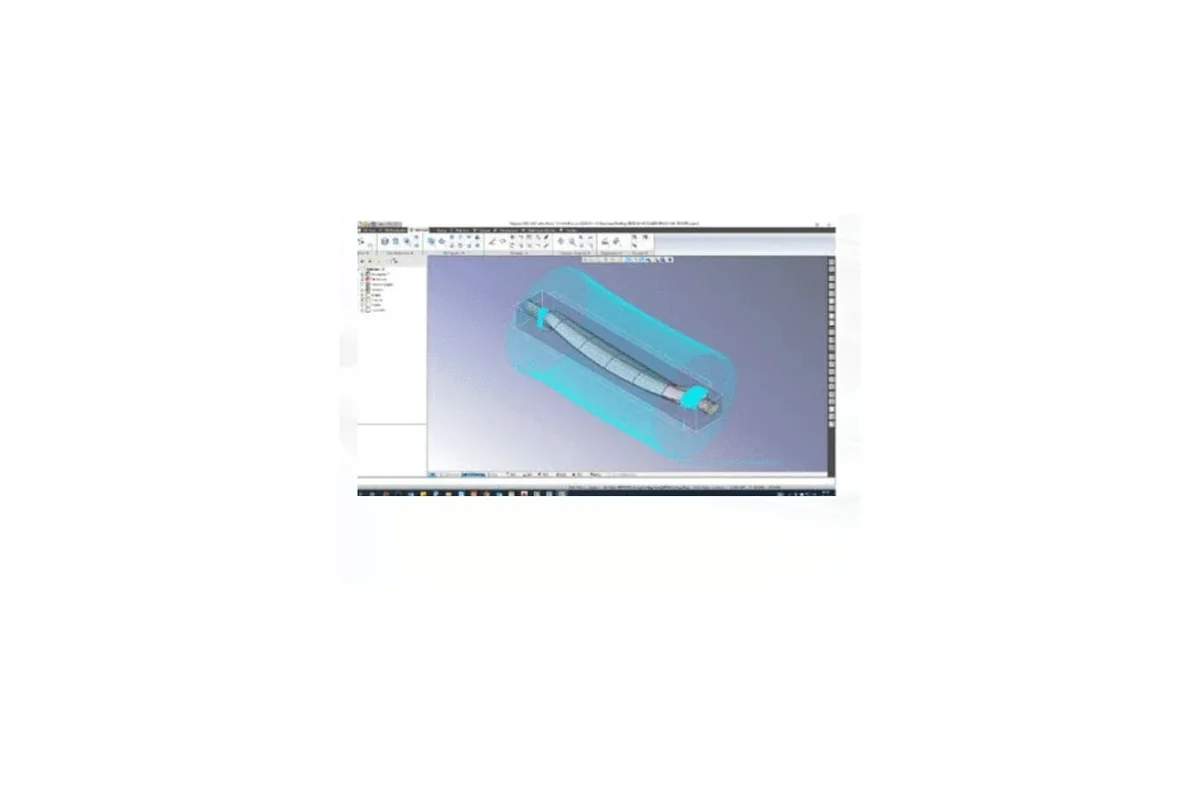

Adds advanced simulation and supported STL, DWG, DXF and IGES workflows for more detailed digital preparation.

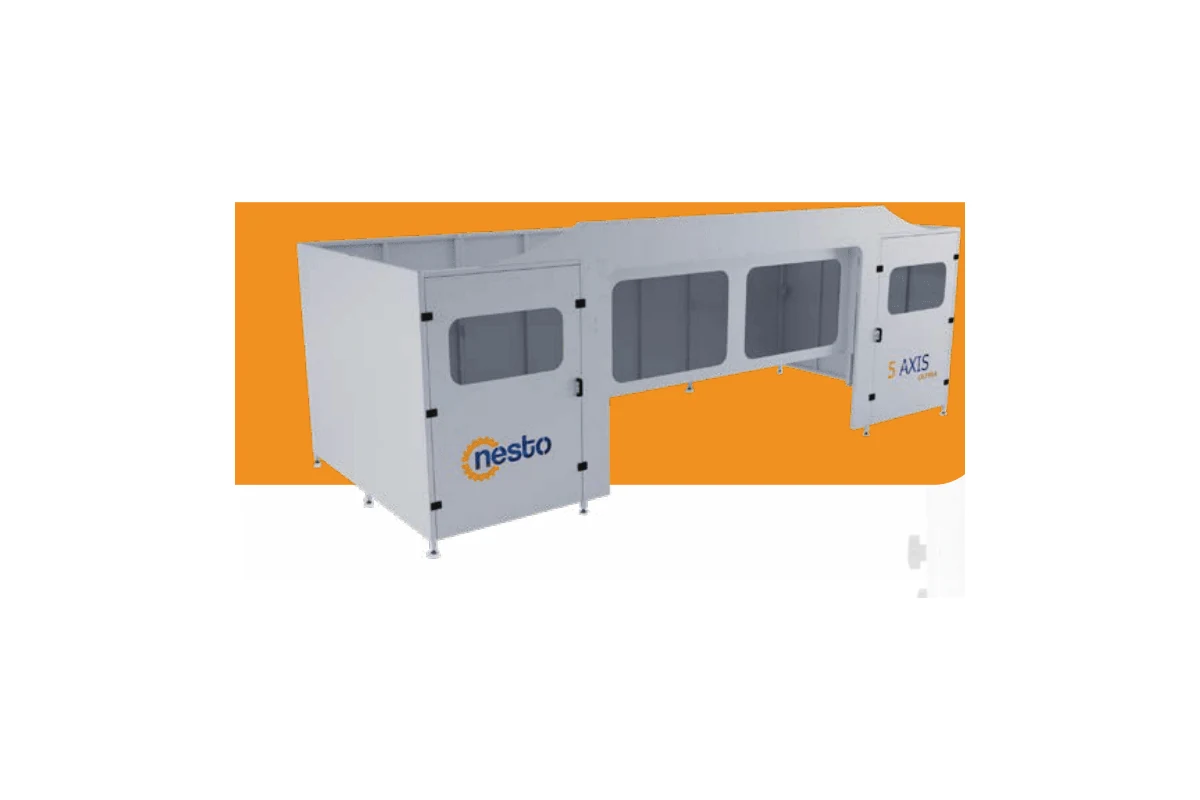

Full safety cabinet
Provides an enclosed alternative to the standard fence for projects requiring a fully covered machine cell.
Typical applications
- Chair legs
- Table legs
- Sofa legs
- Turned solid-wood parts
- Decorative profiles and columns
Model selection
Frequently asked questions
What parts can the 4-Axis Ultra CNC Wood Lathe produce?
It is designed for chair, table, sofa and armchair legs, balusters, columns and decorative solid-wood components that require turning, indexed machining, milling, drilling or shaping within Ø400 × 1,200 mm. Final suitability is evaluated from the drawing, blank and process.
What are the maximum workpiece capacity and turning speed?
Standard capacity is up to 400 mm diameter and 1,200 mm length. The 5 kW direct-drive workpiece axis supports turning up to 3,000 rpm. The suitable speed depends on wood species, blank balance, diameter, profile and tooling.
What does the five-tool system provide?
The standard layout combines hardened triangular, cup and top blades with a 5.5–6 kW Hertz spindle at 24,000 rpm and a five-position automatic magazine. It supports roughing, detailed turning, longitudinal shaping, milling and drilling with fewer manual tool changes.
How do TPA control and Pegasus 4-Axis CAD/CAM support production?
TPA combines axis management, EtherCAT communication, job sequencing, production reports, 3D preview and remote connection. Pegasus supports 3D preparation, simulation and machining-program generation before production.
How are tools, lubrication and workpiece setup managed?
Automatic tool measurement records the active reference before machining, and ILC central lubrication supports the precision motion system. The workpiece is clamped pneumatically at 7 bar, while its length is adjusted from the control panel without a wrench or screw setting.
What are the machine dimensions, installed power and weight?
Machine dimensions are 3,950 × 3,720 × 3,900 mm (155.51 × 146.46 × 153.54 in), installed power is 33 kW and weight is 4,600 kg (10,141 lb). The production layout should also provide service, extraction and material-handling clearance.
Which options can be configured for the production process?
Options include a 9.5–11 kW Hiteco ISO30 spindle, oscillating and detail sanding, circular saw, aluminium top blade, automatic loading, aluminium work table, Pegasus Plus and a full safety cabinet. Selection should follow the workpiece geometry, finish target and production rhythm.
